Prepare Body Flange For Installation Of Window - AR67.10-P-1501-01P
MODEL 117, 129, 140, 156, 168, 169, 170, 171, 172.4, 176, 202, 203, 204.2/3/9, 205, 207, 208, 209, 210, 211.0/2/6, 212, 213, 215, 217, 218, 230.4, 231, 238, 240, 242, 245.2, 246, 253, 292, 414.700
MODEL 220 except CODE Z04 (Light armoring) except CODE Z07 (Top protection)
MODEL 222 except CODE Z07 (Top protection)
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1015-02A | Glazing repair kit, 2-component adhesive | A 220 670 00 93 |
| BR00.45-Z-1089-02A | Glazing repair kit, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |
| BR00.45-Z-1135-02A | Repair kit for installing windshields, 1-component adhesive | A 221 670 81 01 |
The bonding area must be free of dust and grease.
Otherwise the adhesive force of the adhesive material starts to decrease.
When damaged to a degree of 10 % it is possible to repair with primer stick. If damage is 10 % coat body flange with primer filler. Otherwise corrosion damage may occur.
Use only primer filler and primer sticks approved by Daimler AG.
Model 117, 129, 140, 156, 168, 169, 170, 171, 172.4, 176, 202, 203, 204.2/3/9, 205, 207, 208, 209, 210, 211.0/2/6, 212, 215, 217, 218, 230.4, 231, 240, 242, 245.2, 246, 253, 292, 414.700
Model 220 except code Z04 (Light armoring) except code Z07 (Top protection)
Model 222 except code Z07 (Top protection)
It is necessary to use the components of the corresponding repair kit.
Model 213, 238
Only use repair kit specified in EPC.
- Level residual adhesive material on body flange (1) down to a height of approx. 2 mm using suitable scraper and remove loose adhesive material.
- Clean working area.
- Clean bonding area (2) on body flange (1) with cleaner and rub dry with dry cloth.
- Repair paint damage in bonding area (2) and on body flange (1) with primer stick or primer filler.
Observe the manufacturer's specifications for the curing and processing time of the primer filler.

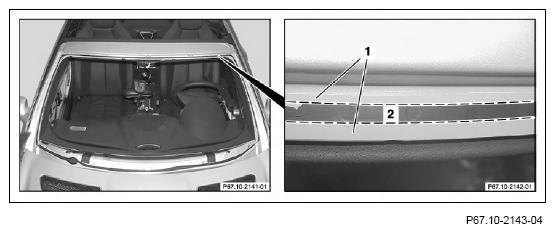

Shown on model 171
- Apply primer to areas of body flange (1) where no remaining or damaged adhesive is present.
The primer must flash off for at least 10 min.
Otherwise the adhesive force of the adhesive material starts to decrease.
