Prepare Window For Installation - AR67.10-P-1000-03P
MODEL 117, 129, 140, 156, 163, 168, 169, 170, 171, 172.4, 176, 202, 203, 205, 207, 208, 209, 210, 213, 217, 218, 230.4, 231, 240, 242, 245.2, 246, 253, 292, 414.700, 453
MODEL 211 except CODE Z04 (Light armoring)
MODEL 212 except CODE Z04 (Light armoring)
MODEL 220 except CODE Z04 (Light armoring) except CODE Z07 (Top protection)
MODEL 222 except CODE Z07 (Top protection)
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1015-02A | Glazing repair kit, 2-component adhesive | A 220 670 00 93 |
| BR00.45-Z-1089-02A | Glazing repair kit, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |
| BR00.45-Z-1135-02A | Repair kit for installing windshields, 1-component adhesive | A 221 670 81 01 |
The bonding area on the windshield must be absolutely free of dust and grease.
Otherwise the adhesive force of the adhesive material starts to decrease when installing the window.

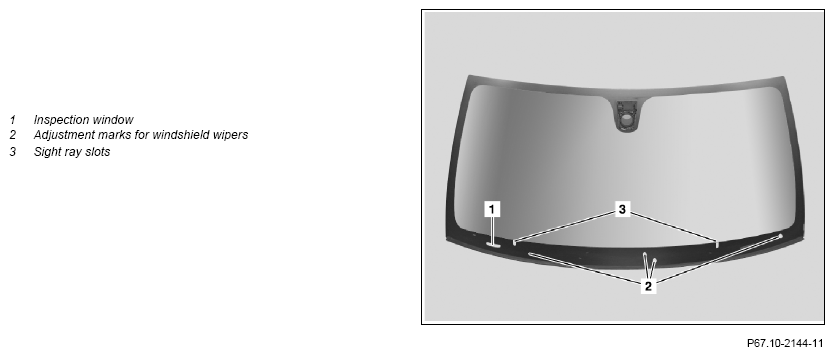

Shown on windshield, model 171

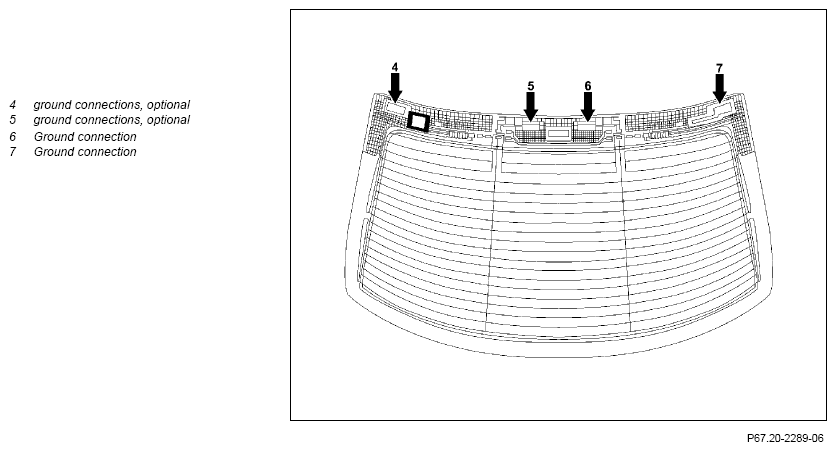

On vehicle with ground connections (6, 7) or optional ground connections (4, 5), do not paint over the recesses located at these points.
Shown on rear window, model 203.0
- Coat viewing window (1) for vehicle identification number at inside of windshield with primer included in repair set.
When replacing windshield, if the viewing window is no longer required.
Do not paint over the adjustment marks for the windshield wipers (2) and light slots (3).
- Check windshield or rear window for scratches or damage.
When reusing windshield or rear window.
If complaint present
Replace windshield or rear window.
- Fasten electrical connectors to rear window with duct tape.
Depending on equipment.
- Level remaining adhesive on windshield or rear window with a suitable scraper down to a height of approx. 2 mm, and remove loose residual adhesive.
When reusing windshield or rear window.
- Repair damaged primer coat on windshield or rear window with primer included in repair kit.
When reusing windshield or rear window.
The primer must flash off for at least 10 minutes.
Otherwise the adhesive effect of the adhesive material will be impaired.
- Apply cleaner (activator) from repair kit to bonding area on windshield or rear window and rub dry with a rag.
When replacing windshield or rear window.
- Coat bonding area on windshield or rear window with primer from repair kit.
When replacing windshield or rear window.
