Remove/Install Front Axle - AR33.10-P-0100LW

Model 205

Model 253 (except 253.388/389/988/989)

G12937566Courtesy of MERCEDES-BENZ USA

Shown on model 205 with CODE M005 (4 MATIC)

G12937567Courtesy of MERCEDES-BENZ USA

Shown on model 205 with CODE M005 (4 MATIC)

G12937568Courtesy of MERCEDES-BENZ USA

Shown on model 205 with code M005 (4 MATIC)

G12937569Courtesy of MERCEDES-BENZ USA

Shown on model 205 except code M005 (4 MATIC) on right side of vehicle

G12937570Courtesy of MERCEDES-BENZ USA

Shown on model 205.4 except code M005 (4 MATIC)

G12937571Courtesy of MERCEDES-BENZ USA
G12937572Courtesy of MERCEDES-BENZ USA

Shown on model 205 except code M005 (4 MATIC), with radiator package in rear installation position

Shown on model 205 except code M005 (4 MATIC), with radiator package in rear installation position

G12937573Courtesy of MERCEDES-BENZ USA
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms.
Carry out repair work on the air conditioning system circuit only after the system has been evacuated.
AS83.00-Z-0007-01A
WARNING Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms.
Carry out repair work on the air conditioning system circuit only after the system has been evacuated.
AS83.00-Z-0006-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
  Notes on installation position of condenser   AH83.30-P-0002-01LW
  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
  Notes on handling refrigerant R134a   AH83.30-N-0003-01A
  Notes on AIRmatic Model 205
with code 489 (AIRMATIC)
Model 253 (except 253.388/389/988/989)
with code 489 (AIR BODY CONTROL)
AH32.22-P-1000-02LW
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGSPECIAL TOOL Remove/install
1 Secure vehicle on vehicle lift.   AR00.60-P-1006A
2 Vent pressure in AIRMATIC system using vehicle diagnosis system. Model 205
with code 489 (AIRMATIC)
Model 253 (except 253.388/389/988/989)
with code 489 (AIR BODY CONTROL)

REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
3 Deactivate easy entry and exit feature. Model 205, 253 (except 253.388/389/988/989)
with code 275 (Driver's seat, electrically adjustable with memory function)

4 Turn steering wheel to center position (front wheels in straight-ahead position) and fix in place using holding device. NOTES Do not turn steering wheel with steering coupling removed.
Otherwise the clock spring contact will be destroyed.
SPECIAL TOOL Retainer device
Fig 2
5 Perform disable for high-voltage on-board electrical system. Model 253.311/353/354/911/953/954 AR54.10-P-1150LVH
    Model 205.012/013/047/053/054/147/212/213/247/253 AR54.10-P-1150LW
6 Discharge air conditioning system.   AR83.30-P-1760LW
7 Mount engine support fixture. Model 205, 253 (except 253.388/389/988/989)
Model 205 with engine 264
AR01.10-P-2400-17MRI
    Model 205 with engine 177
Model 205, 253 with engine 274, 276.8
AR33.10-P-0105LW
    Model 205 with engine 651, 654
Model 253 with engine 642, 651
AR33.10-P-0105LWD
    Model 205 with engine 626 AR33.10-P-0105OLP
    TORQUE SPECIFICATION Model 205 with engine 264 Screw, low-temperature circuit expansion reservoir to crossmember BA20.20-P-1002-02B
    SPECIAL TOOL Model 205 with engine 264
Adapter kit
240589013100
    SPECIAL TOOL Model 205 with engine 264
Engine lifting device
240589006100
    SPECIAL TOOL Model 205 with engine 264
Adaptation plates
240589003200
    SPECIAL TOOL Model 205 with engine 264
Engine hoist
205589006100
8 Remove front wheels.   AR40.10-P-1102A
9 Remove engine compartment lining at front, center and rear.   AR61.20-P-1105LW

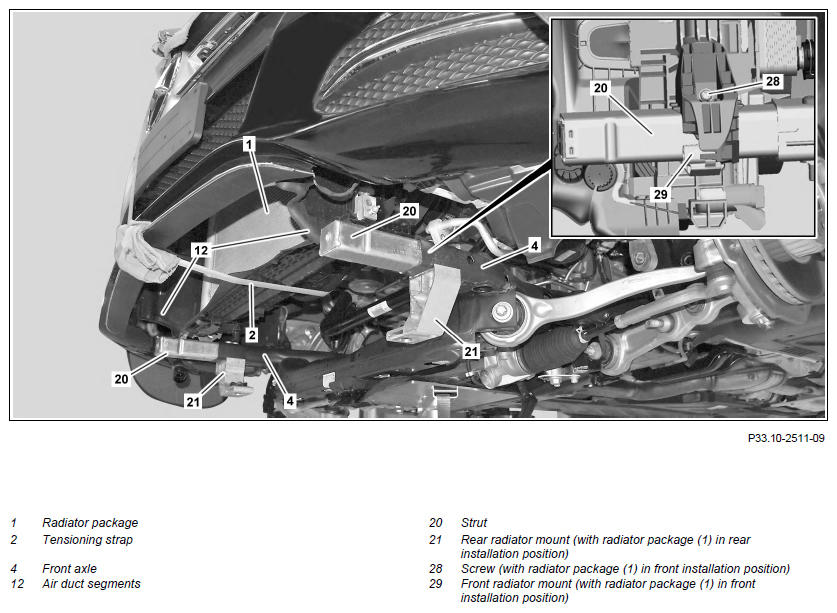

10 Secure radiator package (1) against falling down using tensioning strap (2). NOTES Do not tighten tensioning strap (2) too far.
Otherwise the components can be damaged.

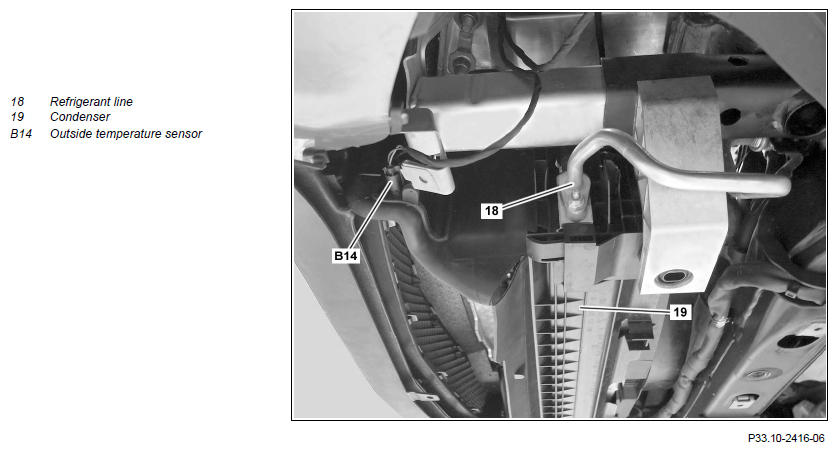

11 Detach refrigerant line (18) from condenser (19), hang to one side towards inside and seal connections.
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1)   BB00.40-P-0362-01A
    INSTALLATION IMPORTANT Replace sealing rings and moisten with compressor oil.
    TORQUE SPECIFICATION Nut, line to condenser *BA83.30-P-1002-01Q
    SPECIAL TOOL Assembly tool Fig 3
    SPECIAL TOOL Record plug Fig 5
12 Remove left and right screws (28), fold up front radiator mounts (29) and remove from struts (20). If the radiator package (1) is in the front installation position.
INSTALLATION IMPORTANT Make sure that the front radiator mounts (29) are correctly seated.

13 Remove front axle shafts. Model 205, 253 (except 253.388/389/988/989)
with transmission 725.0
with code M005 (4 MATIC)
Model 253 (except 253.388/389/988/989) with transmission 724.2
AR33.30-P-0620LW
    Model 205 with transmission 722.96/97 AR33.30-P-0620LWY
14 Remove front right brake pad wear sensor and hang to one side. Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
Model 253 (except 253.388/389/988/989)
TORQUE SPECIFICATION Bolt, brake wear sensor to brake caliper
*BA42.10-P-1002-10W
15.1 Remove brake calipers with brake pads and attach to the vehicle with the brake hose attached and free of tension. Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
Model 253 (except 253.388/389/988/989)
For fixed-caliper brake.
Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
4-piston fixed-caliper brake Model 253 (except 253.388/389/988/989) 4-piston fixed-caliper brake
AR42.10-P-0070LWA
    Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
with code B06 (grey-painted brake callipers)
except code B07 (Ceramic brake system)
except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake
AR42.10-P-0070LWB
    Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
with code B07 (Ceramic brake system)
except code B06 (grey-painted brake callipers)
except code U70 (red-painted brake callipers) 6-piston fixed-caliper brake
AR42.10-P-0070LWC
    Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
with code U70 (red-painted brake callipers)
except code B06 (grey-painted brake callipers)
except code B07 (Ceramic brake system) 6-piston fixed-caliper brake
AR42.10-P-0070LWD
15.2 Detach brake calipers with brake caliper supports and fasten to vehicle free of tension with brake hose connected. Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
Model 253 (except 253.388/389/988/989)
With floating caliper brake.
Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
1-piston floating caliper brake Model 253 (except 253.388/389/988/989) 1-piston floating caliper brake
AR42.10-P-0070LW
16 Detach suspension struts from spring links. Model 205
except code 489 (AIRMATIC)
Model 253 (except 253.388/389/988/989)
except code 489 (AIR BODY CONTROL)
AR32.25-P-1017LW
    Model 205
with code 489 (AIRMATIC)
Model 253 (except 253.388/389/988/989)
with code 489 (AIR BODY CONTROL)
AR32.25-P-1017LWL
17 Detach brackets of electrical wiring harnesses from spring links and axle carrier, and place to one side. Model 205
with code M005 (4 MATIC)
Model 253 (except 253.388/389/988/989)

18 Remove torsion bar linkages from spring links. Model 205
except code M005 (4 MATIC)
AR32.35-P-3328LW
19 Detach left and right line brackets of front axle RPM sensor from front axle carrier and hang to one side with electrical lines connected.   AR42.30-P-0712LW
20 Detach steering knuckles from upper transverse control arms and secure to strut rod with tensioning strap (25). Model 205 with transmission 716, 722 (except 722.96/97), 724, 725
Model 253 (except 253.388/389/988/989)
NOTES The steering knuckles must not fold outwards after they are detached from the upper transverse control arms.
Otherwise ball joints may be damaged.
NOTES Counterhold the ball heads and do not use an impact wrench/driver.
Otherwise the ball heads or the steering knuckles will be damaged.
IMPORTANT Model 205, 253 (except 253.388/389/988/989) with transmission 725.0
Model 253 (except 253.388/389/988/989) with transmission 724.2
with code M005 (4 MATIC)
Installation:  Fasten the steering knuckles to the upper transverse control arms with cable ties only.
TORQUE SPECIFICATION Nut, steering knuckle to transverse control arm
*BA33.20-P-1006-01U
21 Disconnect steering coupling.   AR46.10-P-8000LW

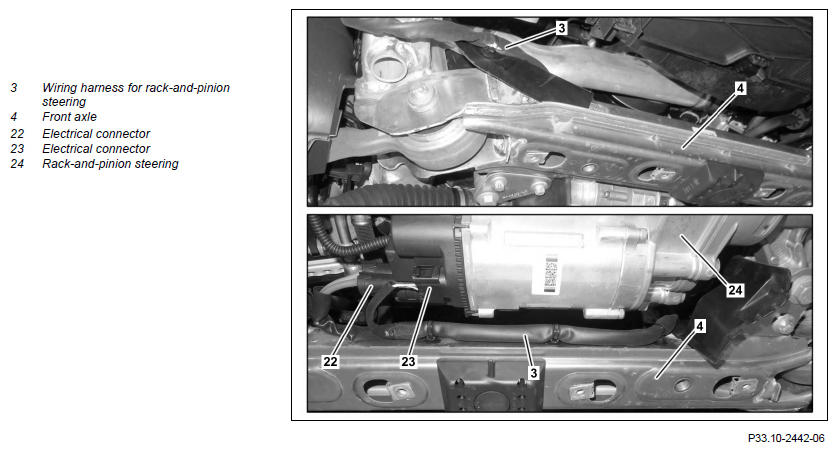

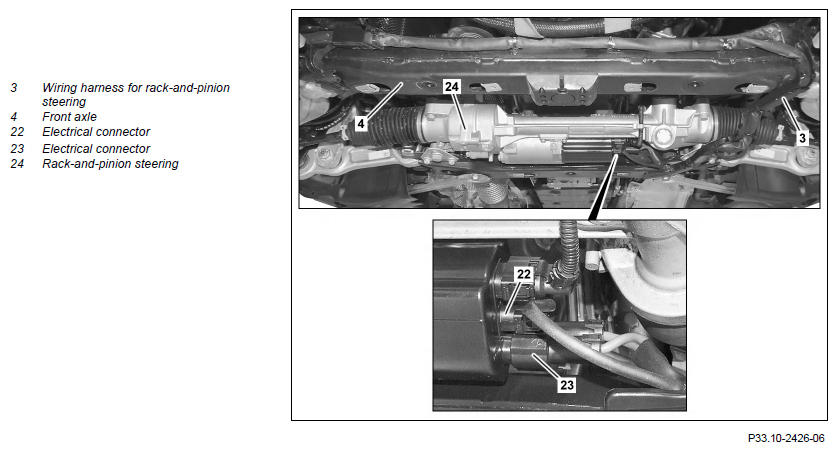

22 Disconnect electrical connectors (22, 23).
23 Detach complete rack-and-pinion steering wiring harness (3) from rack-and-pinion steering (24) and front axle (4), and place to one side.
24 Remove the compressor. Model 205
with code 489 (AIRMATIC)
Model 253 (except 253.388/389/988/989)
with code 489 (AIR BODY CONTROL)
AR32.22-P-2001LW

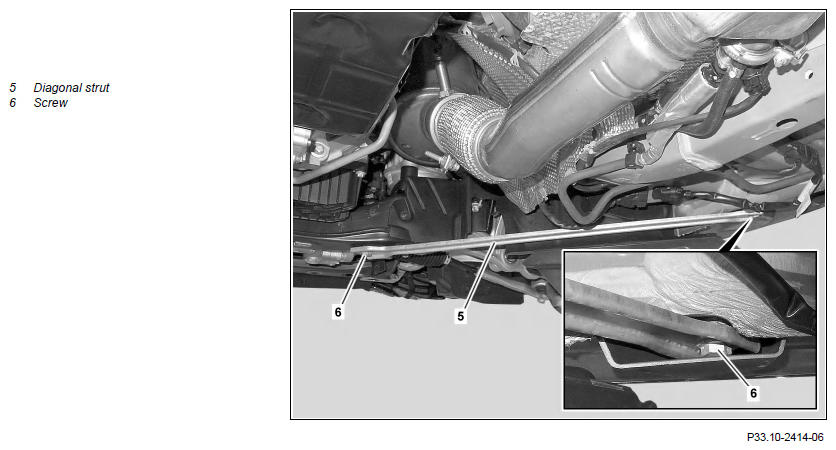

25 Remove screws (6) and remove left and right diagonal struts (5). TORQUE SPECIFICATION Mount, support (strut) *BA33.10-P-1002-01Q

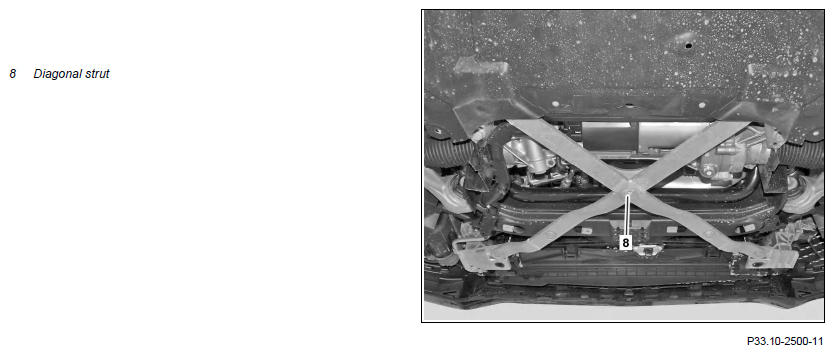

26 Remove diagonal strut (8). Model 205.4
TORQUE SPECIFICATION Bolt, front diagonal strut to longitudinal member
*BA61.10-P-1007-01L
    TORQUE SPECIFICATION Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console *BA61.10-P-1006-01L
27 Remove screws (7) of engine mounts from front axle (4). Model 205, 253 (except 253.388/389/988/989)
Model 253.992/993 with engine 780
AR22.10-P-1102RFW
    Model 253.992/993 with engine 780 AR22.10-P-1101RFW
    Model 253 with engine 276.8 AR22.10-P-1105MMX
    Model 253 with engine 276.8 AR22.10-P-1104MMX
    Model 253 with engine 274.9
with code M005 (4 MATIC)
AR22.10-P-4330LWD
    Model 253 with engine 274.9
except code M005 (4 MATIC)
AR22.10-P-4330LWC
    Model 205 with engine 651 AR22.10-P-1260LWB
    Model 205 with engine 626 AR22.10-P-1260OLP
    Model 205 with engine 264, 274.9
except code M005 (4 MATIC)
AR22.10-P-4330LWA
    Model 205 with engine 264, 274.9
with code M005 (4 MATIC)
AR22.10-P-4330LWB
    Model 205 with engine 276.8 AR22.10-P-4330MMV
    Model 205 with engine 177 AR22.10-P-4330MNA
    Model 253 with engine 642
Model 253 with engine 651
AR22.10-P-4330RF
    Model 205 with engine 654
with code M005 (4 MATIC)
AR22.10-P-4330OLI
    Model 205 with engine 654
except code M005 (4 MATIC)
AR22.10-P-4330OLL
28 Lift engine using engine support fixture until the guide pins of the engine mount fully extend out of the axle carrier.

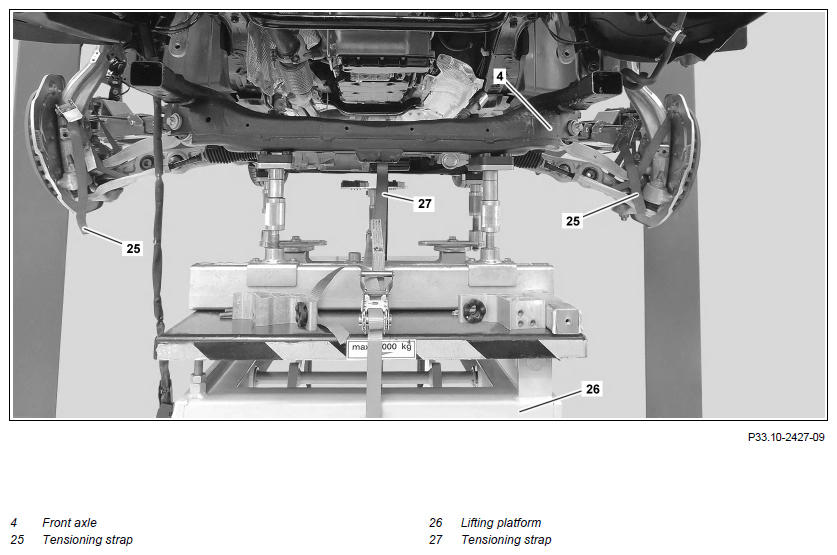

29 Position lifting platform (26) at front axle (4) and secure with tensioning strap (27).
REFER TO SPECIAL TOOLS 000 588 03 62 00 Lifting platform   WS01.00-P-0091A
30 Detach engine compartment lining brackets (11).

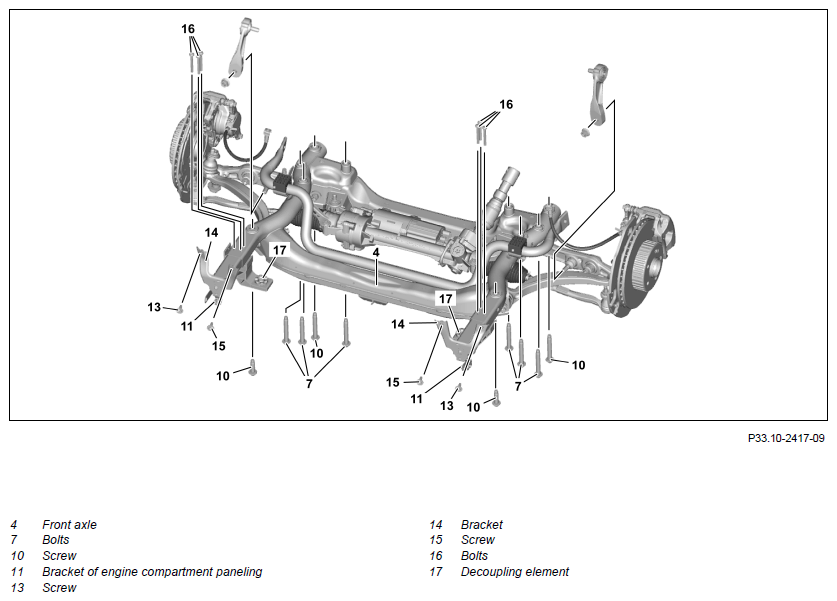

31 Remove screws (10) of front axle (4).
  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
    TORQUE SPECIFICATION Bolt, front axle carrier to longitudinal member *BA33.10-P-1001-01Q
32 Loosen air duct segments (12) and fold inwards.
33 Remove screws (13) of brackets (14).
34 Slacken screws (15) of brackets (14).
35 Lower front axle (4) slightly. NOTES Observe radiator package (1) when lowering.
Otherwise it may be damaged.

36 Mark struts (20) relative to front axle (4) using colored pencil.
37 Detach low-temperature circuit circulation pump 1 with bracket from right rear radiator mount (21) and hang to one side with lines connected. If the radiator package (1) is in the rear installation position and low-temperature circuit circulation pump 1 is installed.
38.1 Remove left and right screws (16). If the radiator package (1) is in the front installation position.
TORQUE SPECIFICATION Bolt, strut (impact absorber) to front axle carrier
*BA33.10-P-1003-01Q
38.2 Remove left and right screws (16) and remove rear radiator mounts (21). If the radiator package (1) is in the rear installation position.
IMPORTANT Make sure that the decoupling elements (17) are seated correctly.
TORQUE SPECIFICATION Bolt, strut (impact absorber) to front axle carrier
*BA33.10-P-1003-01Q
39 Push spring links downward and position suspension struts in front of spring links. NOTES Carefully position the suspension struts in front of the spring control arms.
Otherwise the suspension strut joints can be damaged.

40 Pull front axle (4) slightly to rear, turn brackets (14) to side and remove struts (20). IMPORTANT Note the previously made markings when inserting the struts (20).
41 Fully lower front axle (4). NOTES Carefully lower front axle (4).
Otherwise adjacent components may be damaged.

42 Install in the reverse order.
43 Perform chassis alignment.   AR40.20-P-0200LW
ENGINE RADIATOR, COOLANT HOSES AND LINES

Number Designation Engine 264
BA20.20-P-1002-02B Screw, low-temperature circuit expansion reservoir to crossmember Nm 8
FRONT AXLE CARRIER

Number Designation Model 205 Model 253
BA33.10-P-1001-01Q Bolt, front axle carrier to longitudinal member Nm 180 180
FRONT AXLE CARRIER

Number Designation Model 205 Model 253
BA33.10-P-1002-01Q Mount, support (strut) Nm 110 110
FRONT AXLE CARRIER

Number Designation Model 205 Model 253
BA33.10-P-1003-01Q Bolt, strut (impact absorber) to front axle carrier Nm 23 23
WHEEL CONTROL, HUB

Number Designation Model 205 Model 253
BA33.20-P-1006-01U Nut, steering knuckle to transverse control arm Stage 1 Nm 50 50
Stage 2 ∠° 45 45
FRONT AXLE BRAKE CALIPER

Number Designation Model 205 Model 253
BA42.10-P-1002-10W Bolt, brake wear sensor to brake caliper Nm 8 8
FRAME FLOOR ASSEMBLY

Number Designation Model 205
BA61.10-P-1006-01L Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console Nm 50
FRAME FLOOR ASSEMBLY

Number Designation Model 205
BA61.10-P-1007-01L Bolt, front diagonal strut to longitudinal member Nm 50
AIR CONDITIONING

Number Designation Model 205 Model 253
BA83.30-P-1002-01Q Nut, line to condenser Nm 12 12
Fig 1: Identifying Engine Hoist (205 589 00 61 00)
G12937574Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Retainer Device (129 589 01 21 00)
G12937575Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Tool (000 589 93 63 00)
G12937576Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Engine Lifting Device (240 589 00 61 00)
G12937577Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G12937578Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Adaptation Plates (240 589 00 32 00)
G12937579Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Adapter Kit (240 589 01 31 00)
G12937580Courtesy of MERCEDES-BENZ USA
