Remove/Install Steering Coupling - AR46.10-P-8000LW

Model 205

Model 213

Model 217, 222 as of 4/30/14

Model 253

Model 293

MODIFICATION NOTES

15.11.2019 Document completely revised.

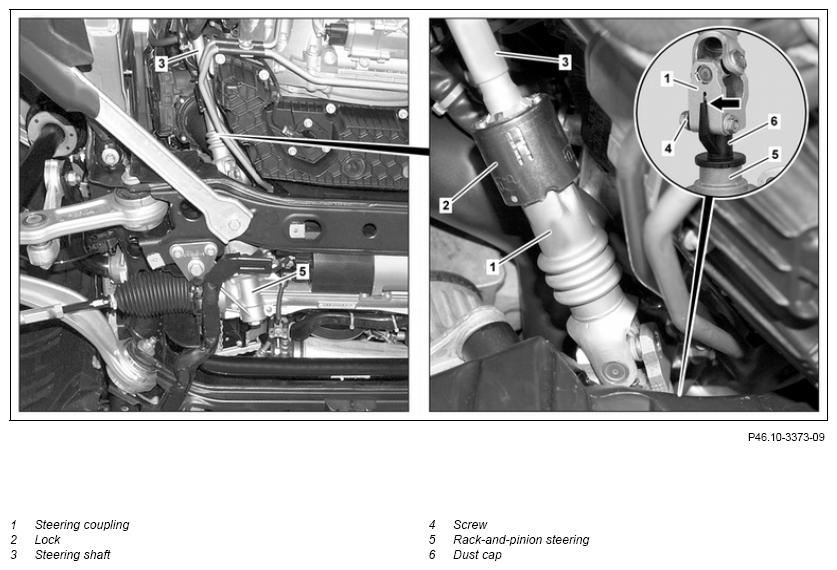

G12939513Courtesy of MERCEDES-BENZ USA

Shown on MODEL 205.0 except CODE 700 (China local content technology)

WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Deactivate easy entry and exit feature for steering wheel. Model 205, 253, 293
with code 275 (Driver's seat, electrically adjustable with memory function)
Model 213
with code 275 (Memory Package (driver's seat, steering column and mirror))
Model 217, 222 as of 4/30/14

2 Turn rack-and-pinion steering (5) into center position (front wheels in straight-ahead position) and fix steering wheel in place using holding device. NOTES
Do not twist steering wheel when steering coupling (1) is removed.
The clock spring contact will be destroyed otherwise.

    SPECIAL TOOL Retainer device Fig 2
3 Perform power disconnect of high-voltage onboard electrical system. Model 293.### 1# AR47.70-P-1000EQ
    Model 222.004/057/104/157/163/173 1# as of 4/30/14 AR54.10-P-1150LF
    Model 253.311/353/354/911/953/954 1# AR54.10-P-1150LVH
    Model 213.016/050/053/054/216 1# AR54.10-P-1150LHV
    Model 205.012/013/047/053/054/147/212/213/247/253 1#
IMPORTANT Carry out only on left-hand drive vehicles.
AR54.10-P-1150LW
4.1 Remove center and rear section of engine compartment lining. Model 205, 213, 253
Model 217, 222 as of 4/30/14

    Model 217, 222 as of 4/30/14 AR61.20-P-1105LF
    Model 205, 253 AR61.20-P-1105LW
    Model 213 AR61.20-P-1105LWE
4.2 Remove front and rear section of lower engine compartment lining. Model 293
      AR61.20-P-1105EQ
5.1 Disconnect steering coupling (1) on lock (2) from steering shaft (3). Model 205.0/2/3/4, 213, 253
except code 700 (Technology Local Content China)
Model 217, 222 as of 4/30/14
Model 293

    Disconnect/connect steering coupling (1). AR46.10-P-8000-01LW
    Turn rack-and-pinion steering (5) to center position. Model 217, 222 as of 4/30/14 AR46.20-P-0600-01RK
    Turn rack-and-pinion steering (5) to center position. Model 205.0/2/3/4, 213, 253 except code 700 (Technology Local Content China)
Model 293
INSTALLATION IMPORTANT : Turn rack-and-pinion steering (5) to center position and connect steering coupling (1).
AR46.20-P-0600-01LW
    SPECIAL TOOL Engine mount wrench set Fig 1
5.2 Disconnect steering coupling (1) at universal joint from steering shaft (3). Model 205.0/1/2, 213, 253
with code 700 (Technology Local Content China)

  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
    Disconnect/connect steering coupling (1). AR46.10-P-8000-01LWA
    Turn rack-and-pinion steering (5) to center position.
INSTALLATION IMPORTANT : Turn rack-and-pinion steering (5) to center position and connect steering coupling (1).
AR46.20-P-0600-01LW
    TORQUE SPECIFICATION Self-locking bolt, steering coupling to lower steering shaft *BA46.10-P-1003-01N
6 Remove screw (4) from steering coupling (1) TORQUE SPECIFICATION Model 217, 222 as of 4/30/14 Bolt, steering coupling to rack-and-pinion steering BA46.10-P-1002-01M
    TORQUE SPECIFICATION Model 205, 213, 253, 293 Bolt, steering coupling to rack-and-pinion steering *BA46.10-P-1002-01N
7 Remove steering coupling (1) from rack-and-pinion steering (5). IMPORTANT Pay attention to installation position.
INSTALLATION IMPORTANT : The guide on the dust cap (6) must be seated without tension in the groove of the steering coupling (1) (arrow).

8 Install in the reverse order.
STEERING SHAFT

Number Designation Model 217 Model 222
BA46.10-P-1002-01M Bolt, steering coupling to rack-and-pinion steering Nm 24 24
STEERING SHAFT

Number Designation Model 205 Model 213
BA46.10-P-1002-01N Bolt, steering coupling to rack-and-pinion steering Nm 24 24
STEERING SHAFT

Number Designation Model 253 Model 293
BA46.10-P-1002-01N Bolt, steering coupling to rack-and-pinion steering Nm 24 24
STEERING SHAFT

Number Designation Model 205 Model 213
BA46.10-P-1003-01N Self-locking bolt, steering coupling to lower steering shaft Stage 1 Nm 25 25
Stage 2 ∠° 90 90
STEERING SHAFT

Number Designation Model 253
BA46.10-P-1003-01N Self-locking bolt, steering coupling to lower steering shaft Stage 1 Nm 25
Stage 2 ∠° 90
Fig 1: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G12939514Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Retainer Device (129 589 01 21 00)
G12939515Courtesy of MERCEDES-BENZ USA
