Remove/Install Front Engine Mount - AR22.10-P-4330LWA

Engine 264 in model 253

except code M005 (Vehicles with 4MATIC/all-wheel drive)

Engine 264, 274.9 in model 205

except code M005 (Vehicles with 4MATIC/all-wheel drive)

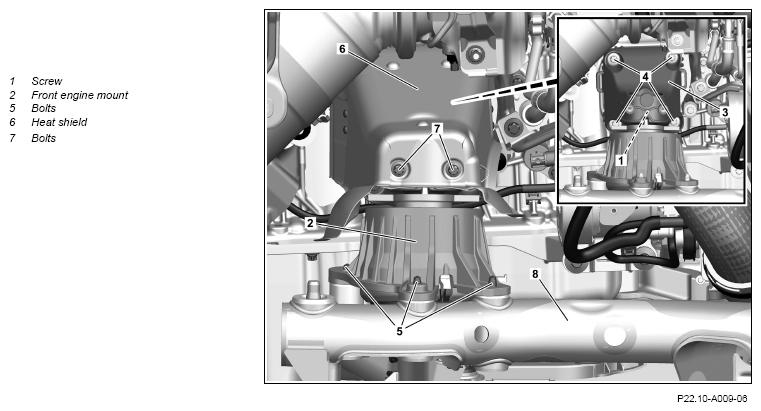

Shown on front right engine mount (2) on the engine 274.9

Courtesy of MERCEDES-BENZ USA

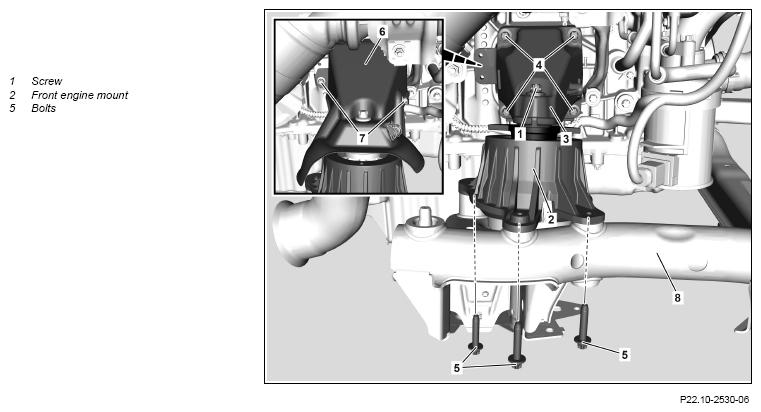

Shown on front right engine mount (2) on the engine 264

Courtesy of MERCEDES-BENZ USA

	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove/install
1	Deactivate memory package.	Engine 264 in model 253 with code 275 (Memory Package (driver's seat, steering column and mirror)) except code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 264, 274.9 in model 205 with code 275 (Memory Package (driver's seat, steering column and mirror)) except code M005 (Vehicles with 4MATIC/all-wheel drive)
2	Turn rack-and-pinion steering to center position (front wheels in straight-ahead position) and fix steering wheel in place with holding device.	Do not turn steering wheel when removing the steering coupling. Fault on clock spring contact possible. Retainer device	Fig 5
3	Perform power disconnect of high-voltage onboard electrical system.	Engine 274.9 in model 205.047/053/054/147/247/253 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR54.10-P-1150LW
4	Remove engine air intake duct upstream of air filter.
5	Remove center and rear sections of lower engine compartment lining.		AR61.20-P-1105LW
6	Release and disconnect high voltage of the refrigerant compressor.	Engine 274.9 in model 205.047/053/054/147/247/253 except code M005 (Vehicles with 4MATIC/all-wheel drive) When removing the front left engine mount (2).
7	Unclip high-voltage line from charge air cooler bracket and place to one side.	Engine 274.9 in model 205.047/053/054/147/247/253 except code M005 (Vehicles with 4MATIC/all-wheel drive) When removing the front left engine mount (2).
8	Drain off coolant.	Engine 264 in model 205, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR20.00-P-1142MRI
		Engine 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR20.00-P-1142LW
9	Disconnect exhaust system between CAT and center muffler.	Engine 264 in model 205, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR49.10-P-7283MRI
		Engine 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR49.10-P-7283LW
10	Unclip engine management control unit with bracket and place to one side with connected lines.	Engine 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR07.08-P-7008MRA
		Engine 264 in model 205, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR07.08-P-1000MRI
11	Unscrew screws (1) from the front left engine mount (2).	Engine 264 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier	BA22.10-P-1002-03M
		Engine 264, 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
12	Unscrew screws (1) from the front right engine mount (2).	Engine 264 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier	BA22.10-P-1002-03M
		Engine 264, 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Bolt, front engine mount to engine support	*BA22.10-P-1001-03E
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
13	Remove coolant hose to heater cooler from bulkhead.		AR20.20-P-7441-01RQ
14	Remove wiper arms.		AR82.30-P-6100LW
15.1	Install engine support fixture and raise engine.	Engine 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Do not put electrical lines and hoses under tension. Otherwise damage will occur.	AR33.10-P-0105LW
15.2	Install engine support fixture and raise engine.	Engine 264 in model 205, 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Do not put electrical lines and hoses under tension. Otherwise damage will occur.	AR01.10-P-2400-17MRI
		Screw, low-temperature circuit expansion reservoir to crossmember	BA20.20-P-1002-02B
		Adapter kit	Fig 4
		Engine lifting device	Fig 2
		Adaptation plates	Fig 3
		Engine hoist	Fig 1
16	Remove steering coupling from steering shaft.		AR46.10-P-8000LW
17	Unscrew screws (5) from front left engine mount (2).	Engine 264 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier	BA22.10-P-1002-03M
		Engine 264, 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
18	Unscrew screws (5) from front right engine mount (2).	Engine 264 in model 253 except code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier	BA22.10-P-1002-03M
		Engine 264, 274.9 in model 205 except code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03E
19	Remove both front engine mounts (2) downwards.	Always replace front engine mounts (2) in pairs. Observe environmental protection regulations for disposal of the engine mount (2). Dispose of front engine mount (2) into mixed scrap.
20	Install in the reverse order.

Fig 1: Identifying Engine Hoist (205 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adaptation Plates (240 589 00 32 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Adapter Kit (240 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Retainer Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
