Overview of system components for overall network (GVN) - GF00.19-P-9997RF
Model 205, 253

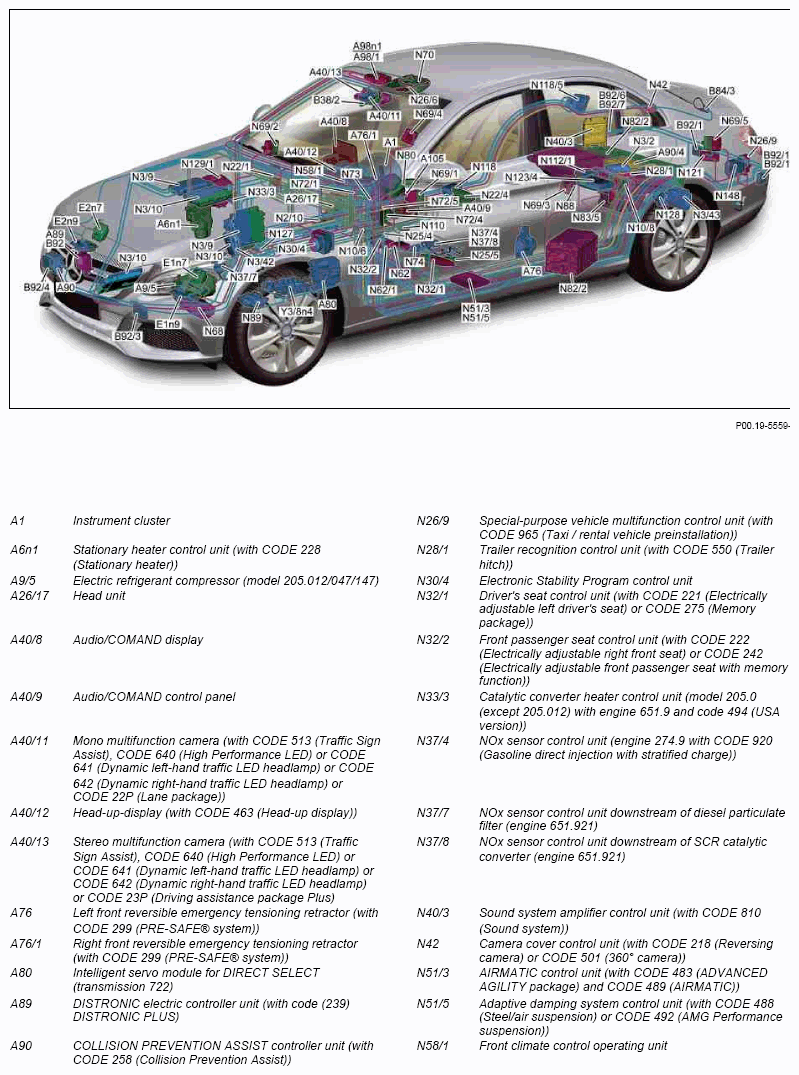

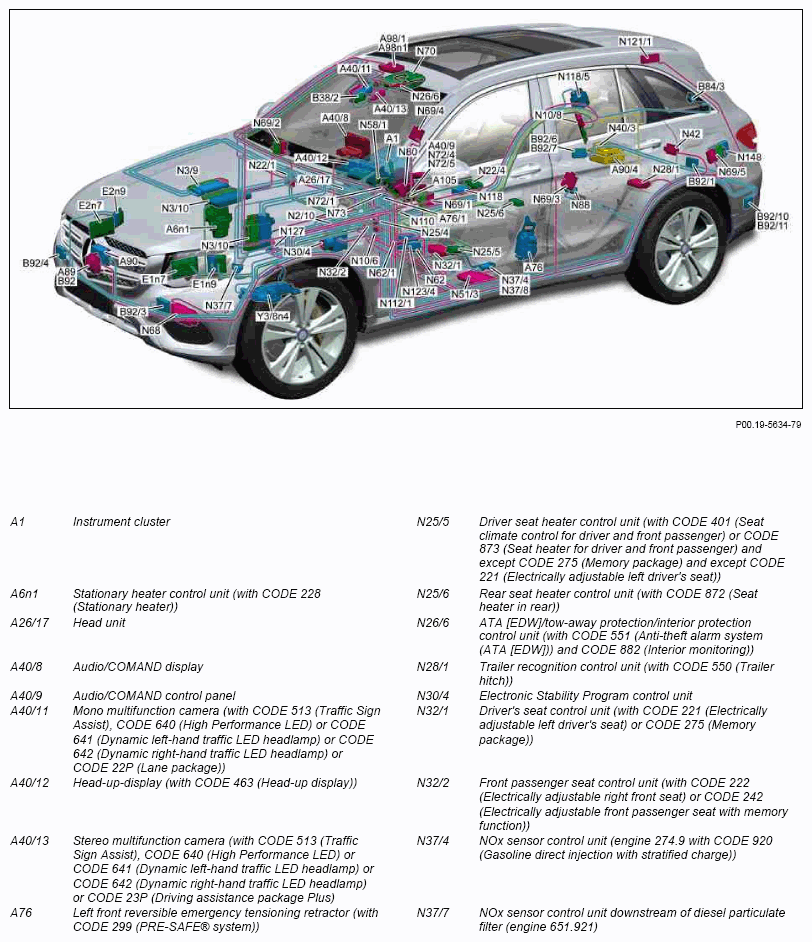

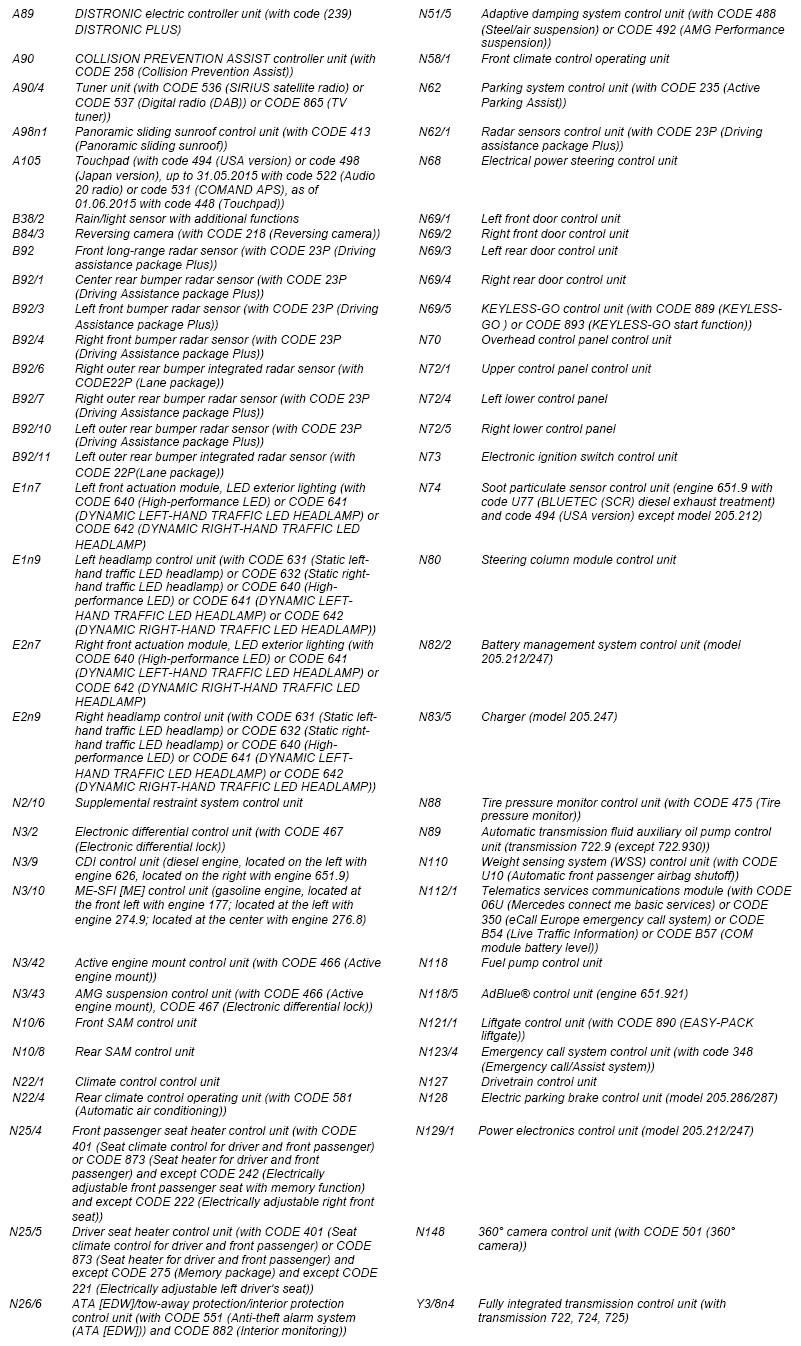

Model 205.0/1, shown on model 205.0

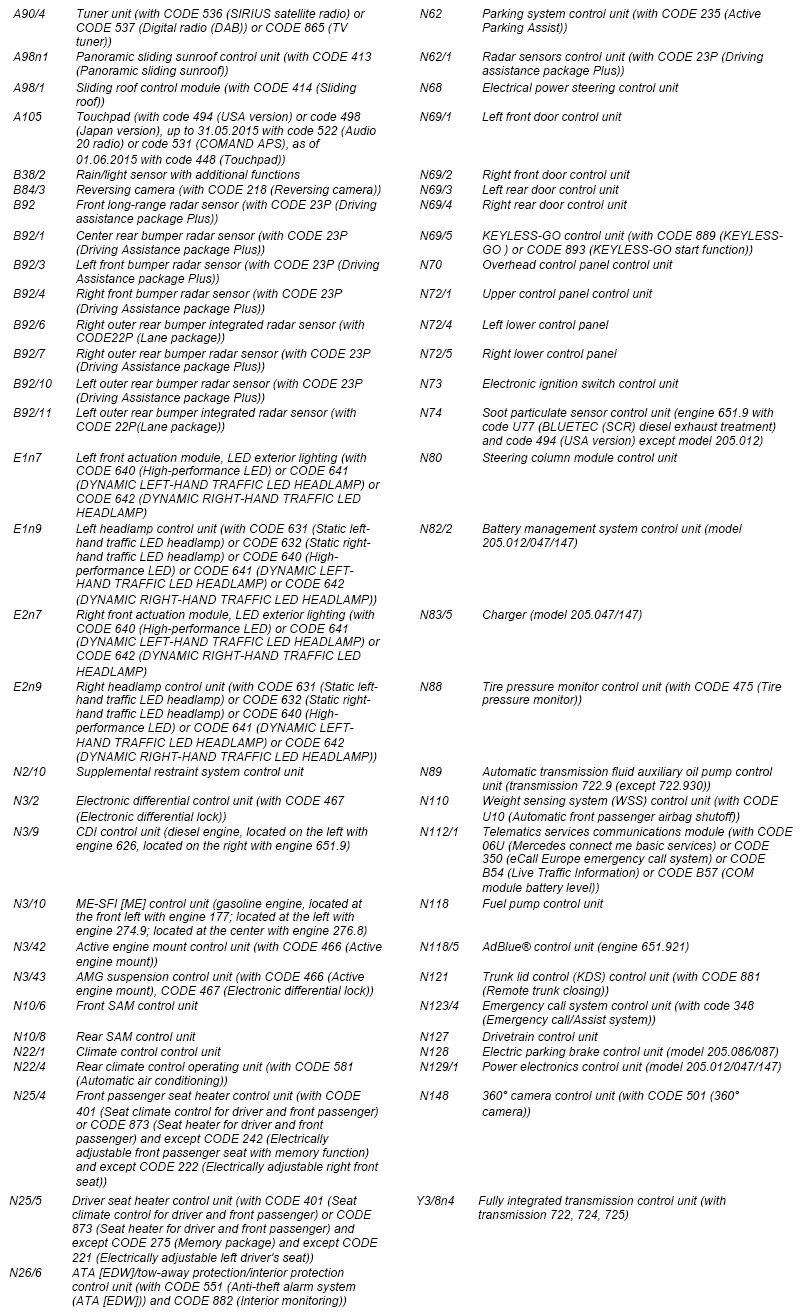

Model 205 with code 872 (Heated rear seats)
The rear seat heater control unit (N25/6) is not represented.

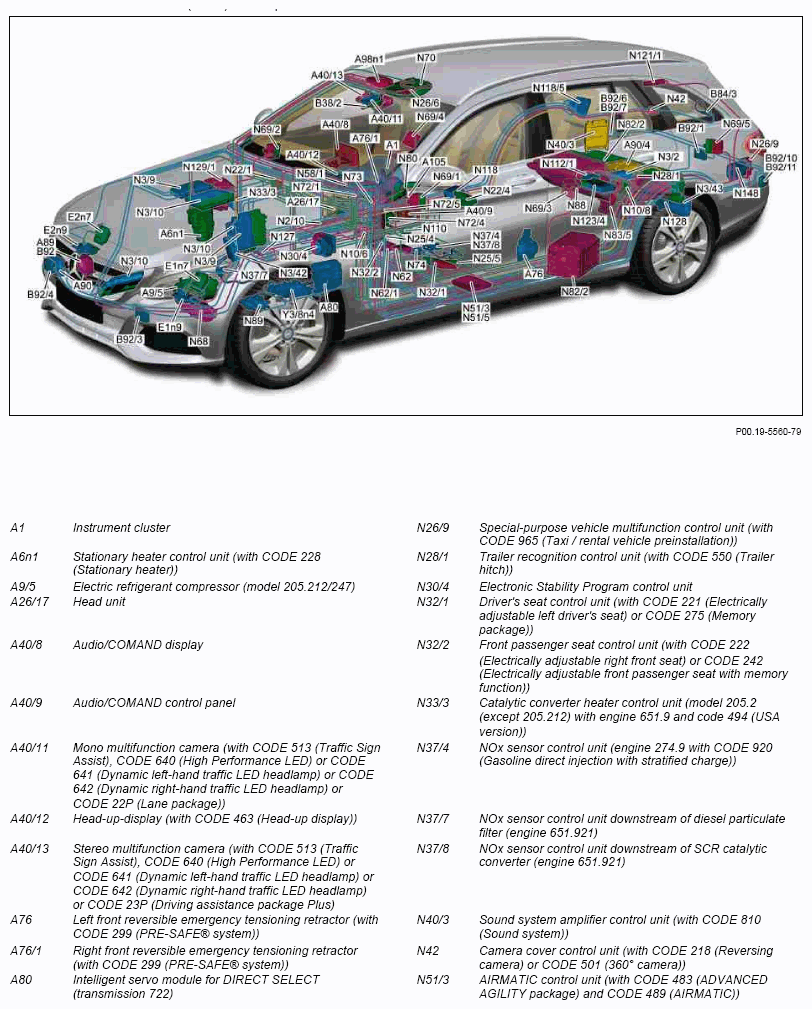

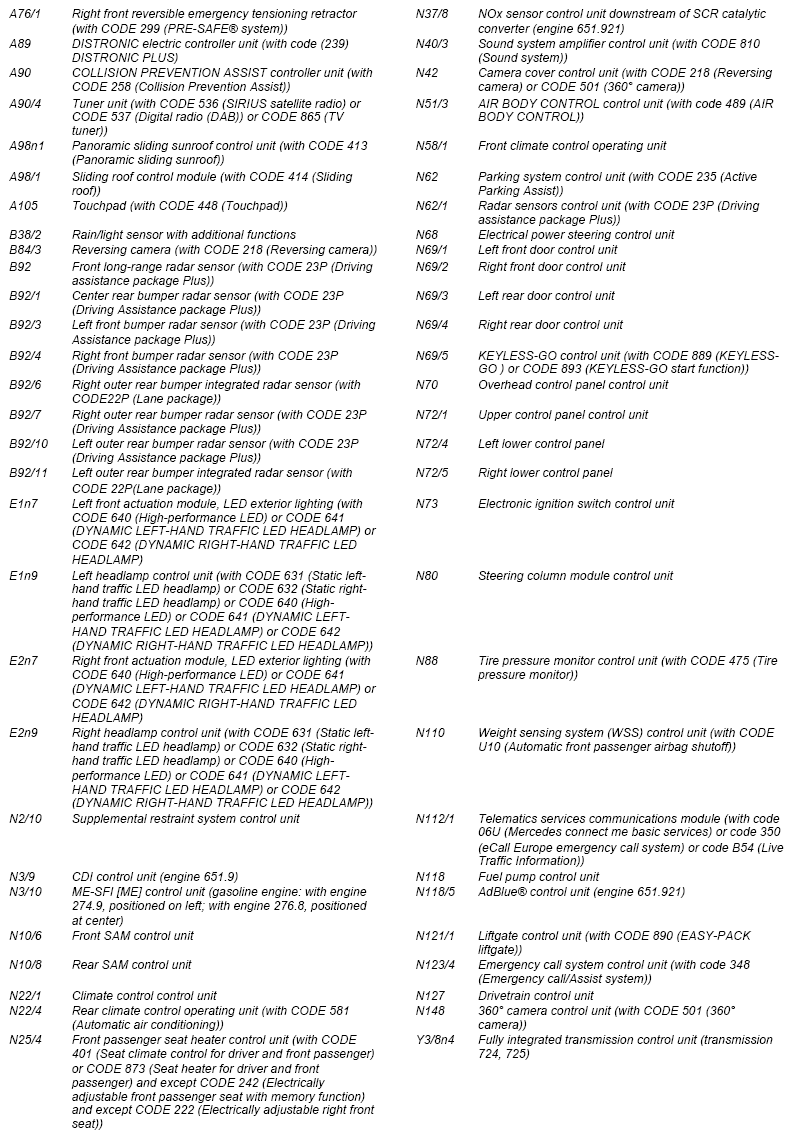

MODEL 205.2
Model 253
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Stationary heater control unit, component description | Model 205, 253 with code 228 (Auxiliary heater) A6n1 | GF83.70-P-4066RF | |
| Component description for electric refrigerant compressor | Model 205.012/047/147/212/247 A9/5 | GF83.55-P-2110RFH | |
| Head unit, component description | Model 205, 253 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140RF | |
| Model 205, 253 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140RFA | ||
| Model 205, 253 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 | GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RF | |
| Component description for multifunction camera | Model 205, 253 with code 22P (Lane tracking package) Model 205, 253 with code 23P (Driving Assistance package Plus) Model 205, 253 with code 513 (Speed Limit Assist) Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 205, 253 with code 642 (Headlamps, LED, dynamic, right-side traffic) A40/11, A40/13 |
GF54.21-P-3300RF | |
| Head-up display, component description | Model 205, 253 with code 463 (Head-up display) A40/12 | GF54.30-P-6140RF | |
| Component description for front reversible emergency tensioning retractors | Model 205, 253 with code 299 (PRE-SAFE® system) A76, A76/1 | GF91.40-P-4020RF | |
| Component description for intelligent servo module for DIRECT SELECT | Model 205 with transmission 722.9 (except 722.930) A80 | GF27.19-P-4020AHE | |
| Model 205 with transmission 722.930 A80 | GF27.19-P-4020AIA | ||
| Component description for DISTRONIC electric controller unit | Model 205, 253 with code 239 (DISTRONIC PLUS) A89 | GF30.30-P-3213RF | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 205, 253 with code 258 (COLLISION PREVENTION ASSIST) A90 | GF30.30-P-3214RF | |
| Tuner unit, component description | Model 205, 253 with code 537 (Digital radio (DAB)) Model 205, 253 with code 865 (TV tuner) Model 205 with code 536 (SIRIUS satellite radio) A90/4 |
GF82.60-P-5015RF | |
| Component description for panoramic sliding roof control module | Model 205, 253 with code 413 (Automatic panoramic sliding sunroof) A98n1 | GF77.20-P-4106RF | |
| Component description for sliding roof control module | Model 205 with code 414 (Sliding sunroof) A98/1 | GF77.20-P-4108RF | |
| Touchpad, component description | Model 205 as of 6/1/15 as of model year 2016 with code 448 (Touchpad) Model 205 up to 5/31/15 up to model year 2016 with code 522 (Audio 20 radio) Model 205 up to 5/31/15 up to model year 2016 with code 531 (COMAND APS) Model 205 with code 494 (US version) Model 205 with code 498 (Japanese version) Model 253 with code 448 (Touchpad) A105 |
GF54.21-P-4511RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Reversing camera component description | Model 205, 253 with code 218 (Rear view camera) B84/3 | GF54.65-P-5040RF | |
| Long-range radar sensor, component description | Model 205, 253 with code 23P (Driving Assistance package Plus) B92 | GF30.30-P-3125RF | |
| Component description for bumper radar sensors | Model 205, 253 with code 22P (Lane tracking package) Model 205, 253 with code 23P (Driving Assistance package Plus) B92/1, B92/3, B92/4, B92/6, B92/7, B92/10, B92/11 |
GF30.30-P-3302RF | |
| Actuation module, LED exterior lighting, front, component description | Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 205, 253 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n7, E2n7 |
GF82.10-P-2160RF | |
| Headlamp control unit, component description | Model 205, 253 with code 631 (Static LED headlamps, left-hand traffic) Model 205, 253 with code 632 (Headlamps, LED, static, right-side traffic) Model 205, 253 with code 640 (High-performance LED) Model 205, 253 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 205, 253 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n9, E2n9 |
GF82.10-P-2020RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Electric differential lock control unit, component description | Model 205 with code 467 (Electronic locking differential) N3/2 | GF35.40-P-2000RF | |
| Component description for CDI control unit | Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) | GF07.16-P-6000OLD | |
| Model 253 with engine 651.9 N3/9 Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205.012/212 with engine 651.9 N3/9 | GF07.16-P-6000OLC | ||
| Model 205 with engine 626 N3/9 | GF07.16-P-6000ORB | ||
| Component description for ME-SFI (ME) control unit | Model 205 with engine 177.9 N3/10 | GF07.61-P-6000MNA | |
| Model 205 (except 205.047/147/247), 253 (except 253.354/954) with engine 274.9 N3/10 | GF07.61-P-6000MRA | ||
| Model 205.047/147/247 with engine 274.9 N3/10 | GF07.61-P-6000MRH | ||
| Model 205 with engine 276.8 N3/10 | GF07.61-P-6000MMV | ||
| Active engine mount control unit, component description | Model 205 with engine 177.9 with code 466 (Active engine mount) N3/42 | GF22.10-P-2001MNA | |
| AMG sports suspension control unit, component description | Model 205 with code 466 (Active engine mount) Model 205 with code 467 (Electronic locking differential) N3/43 |
GF54.21-P-1002RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear climate control operating unit, component description | Model 205, 253 with code 581 (Automatic air conditioning) N22/4 | GF83.40-P-3050RF | |
| Seat heater control unit, component description | Model 205, 253 with code 401 (Climatised front seats) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right front seat) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory package) Model 205, 253 with code 872 (Heated rear seats) Model 205, 253 with code 873 (Seat heating for driver and front passenger) except code 221 (Electrically adjustable left driver seat) except code 222 (Electrically adjustable right front seat) except code 242 (Front passenger seat, electrically adjustable with memory function) except code 275 (Memory package) N25/4, N25/5, N25/6 |
GF91.30-P-5214RF | |
| ATA/tow-away protection/interior protection control unit, component description | Model 205, 253 with code 551 (Anti-theft warning system) with code 882 (Interior motion sensor) N26/6 | GF80.50-P-4131RF | |
| Special vehicle multifunction control unit (SVMCU (MSS)), component description | Model 205 with code 965 (Preinstallation for hire car) N26/9 | GF54.21-P-4010RF | |
| Component description for trailer recognition control unit | Model 205, 253 with code 550 (Trailer coupling) N28/1 | GF31.19-P-4050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/047/147/212/247), 253 (except 253.354/954) N30/4 | GF42.45-P-5119RF | |
| Model 205.012/047/147/212/247 N30/4 | GF42.45-P-5119RFH | ||
| Component description for driver seat control unit | Model 205, 253 with code 221 (Electrically adjustable left driver seat) Model 205, 253 with code 275 (Memory package) N32/1 |
GF91.29-P-5231RF | |
| Component description for front passenger seat control unit | Model 205, 253 with code 222 (Electrically adjustable right front seat) Model 205, 253 with code 242 (Front passenger seat, electrically adjustable with memory function) N32/2 |
GF91.29-P-5241RF | |
| Component description for NOx sensor control unit | Model 205, 253 with engine 274.9 with code 920 (Direct petrol injection with stratified charging) N37/4 | GF14.40-P-3024MRA | |
| Model 205.012/212 with engine 651.9 N37/7, N37/8 | GF14.40-P-3024OLC | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 with code U77 (Diesel Emission control BLUETEC (SCR)) N37/7, N37/8 | GF14.40-P-3024OLD | ||
| Model 205 with engine 626 N37/7, N37/8 | GF14.40-P-3024ORB | ||
| Component description for sound system amplifier control unit | Model 205, 253 with code 810 (Sound system) N40/3 | GF82.62-P-5010RF | |
| Camera cover control unit, component description | Model 205, 253 with code 218 (Rear view camera) Model 205, 253 with code 501 (360° camera) N42 |
GF54.65-P-5005RF | |
| AIRMATIC control unit, component description | Model 205 with code 483 (ADVANCED AGILITY package) with code 489 (AIRMATIC) N51/3 | GF32.22-P-5110RF | |
| AIR BODY CONTROL control unit, component description | Model 253 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111RF | |
| Component description for adaptive damping system control unit | Model 205 with code 488 (Steel/air suspension) Model 205 with code 492 (AMG performance suspension) N51/5 |
GF32.32-P-1010RF | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Parking system control unit component description | Model 205, 253 with code 235 (Active Parking Assist) N62 | GF54.65-P-5002RF | |
| Component description for radar sensors control unit | Model 205, 253 with code 23P (Driving Assistance package Plus) N62/1 | GF30.30-P-3301RF | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2, 253 N69/3, N69/4 | GF72.29-P-6021RF | |
| Component description for KEYLESS-GO control unit | Model 205, 253 with code 889 (KEYLESS-GO) Model 205, 253 with code 893 (KEYLESS-GO) N69/5 |
GF80.61-P-4204RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF | |
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 Model 205.047/147/247 with engine 274.920 N82/2 |
GF54.10-P-3012RFH | |
| High-voltage charger control unit, component description | Model 205.047/147/247 with engine 274.920 N83/5 | GF08.20-P-2000RFH | |
| Component description for tire pressure monitor control unit | Model 205, 253 with code 475 (Tyre pressure monitoring system) N88 | GF40.15-P-5124RF | |
| Component description for transmission oil auxiliary oil pump control unit | Model 205 with transmission 722.9 (except 722.930) N89 | GF27.19-P-4031AHE | |
| Model 205 with transmission 722.930 N89 | GF27.19-P-4031AIA | ||
| Component description for Weight Sensing System (WSS) control unit | Model 205, 253 with code U10 (Automatic seat occupancy recognition and child seat recognition) N110 | GF91.60-P-4069RF | |
| Telematics services communications module, component description | Model 205, 253 with code 06U (Mercedes connect me standard services) Model 205, 253 with code 350 (Ecall emergency call system, Europe) Model 205, 253 with code B54 (Live Traffic Information) Model 205 with code B57 (KOM Module battery charging) N112/1 |
GF82.85-P-0220RF | |
| Component description for fuel pump control unit | Model 205 with engine 177.9 N118 | GF47.40-P-2001MNA | |
| Model 205 (except 205.047/147/247), 253 (except 253.354/954) with engine 274.9 N118 | GF47.40-P-2001MRA | ||
| Model 205.047/147/247 with engine 274.9 N118 | GF47.40-P-2001MRH | ||
| Model 205 with engine 276.8 N118 | GF47.40-P-2001MMV | ||
| Model 205.012/212 with engine 651.9 N118 | GF47.40-P-2001OLC | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 N118 | GF47.40-P-2001OLD | ||
| Model 205 with engine 626 N118 | GF47.40-P-2001ORB | ||
| Component description for exhaust aftertreatment control unit | Model 205.012/212 with engine 651.9 N118/5 | GF14.40-P-3030OLC | |
| Model 205 (except 205.012/212), 253 with engine 651.9 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 | GF14.40-P-3030OLD | ||
| Model 205 with engine 626 N118/5 | GF14.40-P-3030ORB | ||
| Trunk lid/liftgate control control unit, component description | Model 205.0/1 with code 881 (Remote boot lid closing) Model 205.2, 253 with code 890 (EASY-PACK-tailgate) N121, N121/1 |
GF80.20-P-6092RF | |
| Component description for emergency call | Model 205 system control unit with code 348 (Emergency call/assistant system) N123/4 | GF82.95-P-3212RFU | |
| Drivetrain control unit, component description | Model 205 with engine 177.9 N127 | GF54.21-P-2141MNA | |
| Model 205 (except 205.047/147/247), 253 (except 253.354/954) with engine 274.9 N127 | GF54.21-P-2141MRA | ||
| Model 205.047/147/247 with engine 274.9 N127 | GF54.21-P-2141MRH | ||
| Model 205 with engine 276.8 N127 | GF54.21-P-2141RF | ||
| Model 205 with engine 626 N127 | GF54.21-P-2141ORB | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 N127 | GF54.21-P-2141OLD | ||
| Model 205.012/212 with engine 651.9 N127 | GF54.21-P-2141OLC | ||
| Electric parking brake control unit, component description | Model 205 with code 990 (AMG vehicles) N128 |
GF42.20-P-5005RF | |
| Component description for power electronics control unit | Model 205.012/212 with engine 651.921 Model 205.047/147/247 with engine 274.920 N129/1 |
GF08.20-P-1001RFH | |
| Component description for 360 degree viewing system control unit | Model 205, 253 with code 501 (360° camera) N148 | GF54.65-P-5003RF | |
| Component description for fully integrated transmission control unit | Model 205 with transmission 722.9 (except 722.930) Y38n4 | GF27.60-P-5165AHE | |
| Model 205 with transmission 722.930 Y38n4 | GF27.60-P-5165AIA | ||
| Model 205 with transmission 724.2 Y38n4 | GF27.60-P-5165RFH | ||
| Model 205 with transmission 725.0 Y38n4 | GF27.60-P-5165ANG | ||
| Model 253 with transmission 725.0 Y38n4 | GF27.60-P-5165ANI | ||
| Overall network (GVN) function description table of contents | GF00.19-P-0999RF |
