Component description for ME-SFI (ME) control unit - GF07.61-P-6000MMV
Engine 276.8 in model 205, 253

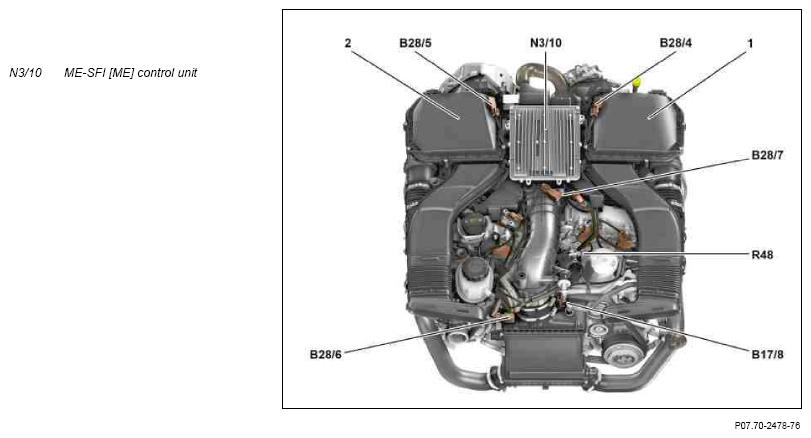

View of engine from above
Location
The ME-SFI [ME] control unit is located in the upper middle on the engine.
Tasks
The ME-SFI [ME] control unit fulfills the following tasks:
- Controlling the engine basic functions
- Reading in of signals
- Evaluation of input factors
- Output of signals and actuation of components
Controlling the engine basic functions
- Ignition ON
- Start
- Ignition OFF
- Fuel supply
- Injection control
- Ignition system
- Synchronization of injection and firing order
- Start, post-start phase and warm-up enrichment
- Rpm control
- Alternator interface
- Lambda control
- Smooth running control
- Thermal management
- Torque coordination
- Deceleration fuel shutoff
- Knock control
- Camshaft adjustment
- Engine limp-home mode
- European On-Board Diagnosis
- ECO start/stop function
- Exhaust treatment
- Charging
- Capturing fueling gases (for code 494 (USA version))
- Electronic accelerator
- Purging
- Purge system with leak test (with CODE 494 (USA version))
Reading in of signals
Input factors are read in over the following connections:
- Direct line
- Drive-LIN (LIN C1)
- Engine CAN (CAN C)
- Drive train CAN (CAN C1)
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Output of signals and actuation of components
Initial parameter are output over the following connections:
- Direct line
- Drive train LIN
- Engine CAN
- Drive train CAN
The electronic ignition lock control unit (N73) is the central interface (Gateway) for exchanging the function-relevant data of the control units that are connected to the various CAN bus systems.
| Input factors over a direct line | Initial parameters over a direct line | Supplemental information |
|---|---|---|
| Terminal 15 | - | - |
| Circuit 30 (fused) | - | - |
| Circuit 31 | - | - |
| Circuit 87M4 | - | - |
| Knock sensor 1 (A16/1) | - | - |
| Knock sensor 2 (A16/2) | - | - |
| - | Fuel tank diagnostic module pump (A101m1) | For CODE 494 (USA version) as of model year 2016 |
| - | Fuel tank diagnostic module heating element (A101r1) | For CODE 494 (USA version) as of model year 2016 |
| - | Fuel tank diagnostic module solenoid valve (A101y1) | For CODE 494 (USA version) as of model year 2016 |
| Fuel pressure and temperature sensor (B4/25) | - | - |
| Fuel tank pressure sensor (B4/3) | - | For CODE 494 (USA version) up to model year 2016 |
| Purging pressure sensor (B4/4) | - | With CODE 494 (USA version) |
| Left intake camshaft Hall sensor (B6/4) | - | - |
| Right intake camshaft Hall sensor (B6/5) | - | - |
| Left exhaust camshaft Hall sensor (B6/6) | - | - |
| Right exhaust camshaft Hall sensor (B6/7) | - | - |
| Coolant temperature sensor (B11/4) | - | - |
| Charge air temperature sensor (B17/8) | - | - |
| Pressure sensor downstream of air filter, left cylinder bank (B28/4) | - | - |
| Pressure sensor downstream of air filter, right cylinder bank (B28/5) | - | - |
| Pressure sensor upstream of throttle valve (B28/6) | - | - |
| Pressure sensor downstream of throttle valve (B28/7) | - | - |
| Accelerator pedal sensor (B37) | - | - |
| Crankshaft Hall sensor (B70) | - | - |
| Engine compartment circuit 15 relay (K40/8kG) | - | - |
| - | Starter circuit 50 relay (K40/8kH) | - |
| Circuit 87M relay (K40/8kN) | Circuit 87M relay (K40/8kN) | - |
| Left oxygen sensor element upstream of CAT (G3/3b1) | - | - |
| - | Left oxygen sensor heater upstream of CAT (G3/3r1) | - |
| Right oxygen sensor element upstream of CAT (G3/4b1) | - | - |
| - | Right oxygen sensor heater upstream of CAT (G3/4r1) | - |
| Left oxygen sensor element downstream of CAT (G3/5b1) | - | - |
| - | Left oxygen sensor heater downstream of CAT (G3/5r1) | - |
| Right oxygen sensor element downstream of CAT (G3/6b1) | - | - |
| - | Right oxygen sensor heater downstream of CAT (G3/6r1) | - |
| - | Throttle valve actuator motor (M16/6m1) | - |
| Actual value potentiometer 1 (M16/6r1), throttle valve | - | - |
| Actual value potentiometer 2 (M16/6r2), throttle valve | - | - |
| Supplemental Restraint System control unit (N2/10) | - | - |
| - | Fuel system control unit (N118) | - |
| - | Coolant thermostat heating element (R48) | - |
| Oil level check switch (S43) | - | - |
| - | Cylinder 1 ignition coil (T1/1) | - |
| - | Cylinder 2 ignition coil (T1/2) | - |
| - | Cylinder 3 ignition coil (T1/3) | - |
| - | Cylinder 4 ignition coil (T1/4) | - |
| - | Cylinder 5 ignition coil (T1/5) | - |
| - | Cylinder 6 ignition coil (T1/6) | - |
| - | Left intake camshaft solenoid (Y49/4) | - |
| - | Right intake camshaft solenoid (Y49/5) | - |
| - | Left exhaust camshaft solenoid (Y49/6) | - |
| - | Right exhaust camshaft solenoid (Y49/7) | - |
| - | Purging switchover valve (Y58/1) | - |
| - | Activated charcoal canister shutoff valve (Y58/4) | For CODE 494 (USA version) up to model year 2016 |
| - | Cylinder 1 fuel injector (Y76/1) | - |
| - | Cylinder 2 fuel injector (Y76/2) | - |
| - | Cylinder 3 fuel injector (Y76/3) | - |
| - | Cylinder 4 fuel injector (Y76/4) | - |
| - | Cylinder 5 fuel injector (Y76/5) | - |
| - | Cylinder 6 fuel injector (Y76/6) | - |
| - | Boost pressure control pressure transducer (Y77/1) | - |
| - | Quantity control valve (Y94) | |
| - | Left thrust circulating air switchover valve (Y101/1) | - |
| - | Right thrust circulating air switchover valve (Y101/2) | - |
| - | Engine oil pump valve (Y130) | - |
Input parameters and initial parameters for the following components and control units are transmitted or received by the ME-SFI [ME] or CDI control unit via the LIN or CAN and are needed by the engine management system:
| Input factors via the drive-LIN (LIN C1) | Initial parameters via the drive-LIN (LIN C1) | Supplemental information |
|---|---|---|
| Alternator (G2) | Alternator (G2) | - |
| Input factors over engine CAN (CAN C) | Initial parameters via engine CAN (CAN C) | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Supplemental Restraint System control unit (N2/10) | - | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Front SAM control unit (N10/6) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic Stability Program control unit (N30/4) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Model 205: AIRMATIC control unit (N51/3) (with code 483 (ADVANCED AGILITY-package) and with code 489 (AIRMATIC)) |
- | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Model 253: AIR BODY CONTROL unit (N51/3) (with code 489 (AIR BODY CONTROL)) |
- | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Radar sensors control unit (N62/1) (for code 23P (Driving assistance package PLUS)) | - | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) |
| Left front door control unit (N69/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic ignition lock control unit (N73) | Electronic ignition lock control unit (N73) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Diagnostic connector (X11/4) | Diagnostic connector (X11/4) | Via diagnostic CAN (CAN D), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Input factors over drive train CAN 1 (CAN C1) | Initial parameters via drive train CAN 1 (CAN C1) | Supplemental information |
|---|---|---|
| Instrument cluster (A1) | Instrument cluster (A1) | Via user interface-CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Climate control unit (N22/1) | - | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Electronic Stability Program control unit (N30/4) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Model 205: AIRMATIC control unit (N51/3) (with code 483 (ADVANCED AGILITY-package) and with code 489 (AIRMATIC)) |
- | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Model 253: AIR BODY CONTROL unit (N51/3) (with code 489 (AIR BODY CONTROL)) |
- | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Radar sensors control unit (N62/1) (for code 23P (Driving assistance package PLUS)) | - | Via suspension FlexRay (Flex E), Electronic Stability Program control unit (N30/4) and powertrain control unit (N127) |
| Steering column tube module control unit (N80) | - | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Fuel system control unit (N118) | Fuel system control unit (N118) | - |
| Powertrain control unit (N127) | Powertrain control unit (N127) | - |
| Fully integrated transmission control unit (Y3/8n4) | Fully integrated transmission control unit (Y3/8n4) | - |
Body
The ME-SFI [ME] control unit housing is made out of diecast aluminum and the cover is made out corrosion-protected sheet steel. The ME-SFI [ME] control unit is water and dust protected. The inside contains the 32-bit measuring and control electronics for the engine management.
Ground connection
The "circuit 31" ground connection is made via the internal combustion engine ground point (W11) and via several ground lines to the left major assembly compartment electronics ground point (W16/5).
Power supply
The ME-SFI [ME] control unit is supplied with a voltage from "circuit 30 secured" and also for ignition ON from "circuit 87 M4". In the control voltage range, it has both short-circuit protection and reversed polarity protection. Power is supplied through several engaged parallel pins connected in parallel to relieve the electrical connections.
Variants
The variants of the engine management, for exampled country and exhaust variants, are activated with XD over the variant coding. Exchange of the ME-SFI [ME] control unit is not necessary.
| Wiring diagram for gasoline-DI control unit | N3/10, vehicle-side | PE07.08-P-2101-97FBG | |
| N3/10, engine side, specification 1 | PE07.08-P-2101-97FBH |
