Remove/install sun visor - AR68.60-P-5480GZ

MODEL 164

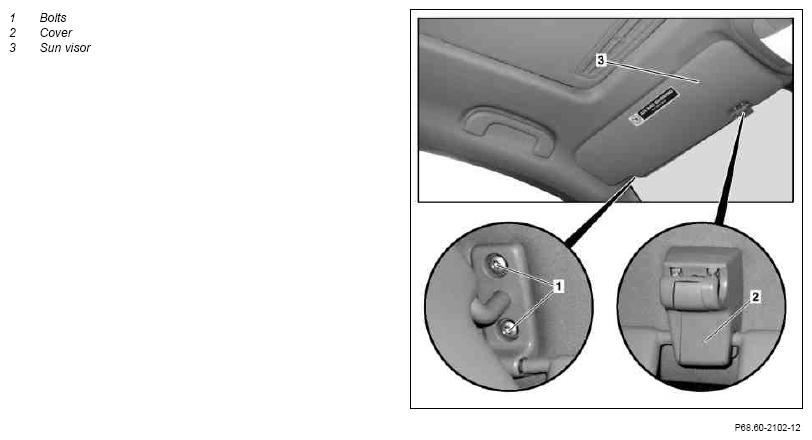

Fig 1: Identifying Sun Visor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove screws (1)
2	Unclip cover (2)	Long wedge	Figure
3	Remove sun visor (3).
4	Install in the reverse order

Fig 2: Identifying Longitudinal Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
