Remove/install handle on roof - AR68.30-P-4330GZ

MODEL 164 Handhold on the roof, Front

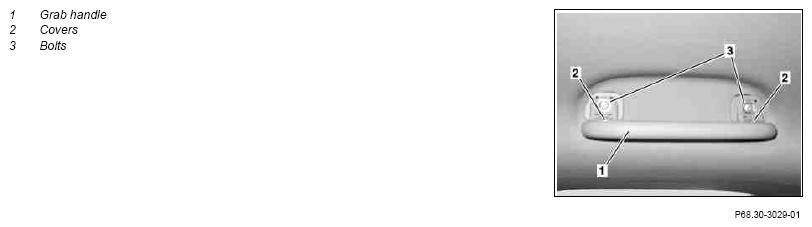

Fig 1: Identifying Roof Handle Remove/Install Components
G10117708Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Pry open covers (2)
2 Remove screws (3)
3 Remove grab handle (1)
4 Install in the reverse order
