Remove/install paneling on D-pillar - AR68.30-P-4495GZ

MODEL 164

Shown on model 164.1

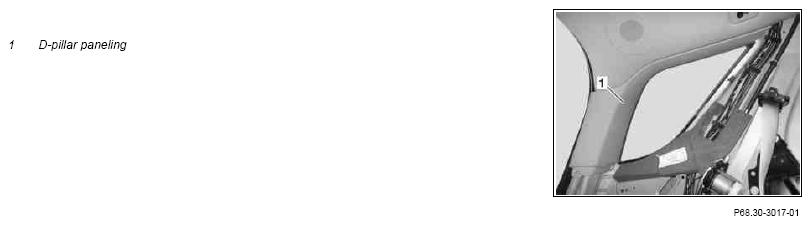

Fig 1: Identifying D-Pillar Paneling Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove side paneling in trunk	Model 164.1	AR68.30-P-4800GZ
		Model 164.8	AR68.30-P-4800RT
2.1	Remove paneling from C-pillar	Only model 164.1.	AR68.30-P-4490GZ
3.1	Unscrew bolt from 3rd seat row seat belt at bottom	Only on model 164.8.
			*BA91.40-P-1001-01H
4.1	Unscrew mounting bolt from D-pillar paneling (1) at bottom	Only on model 164.8.
5	Carefully unclip D-pillar paneling (1)	Replace defective clips.
		Mounting wedge	Figure
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Models 164.1/8
BA91.40-P-1001-01H	Bolt to seat belt fitting	Nm	35

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
