Remove/install paneling on A-pillar - AR68.30-P-4050GZA

MODEL 164

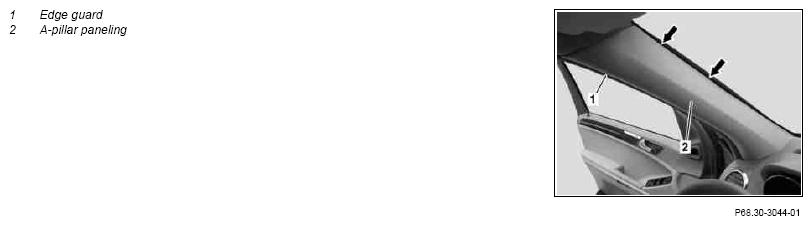

Fig 1: Identifying A-Pillar Paneling Remove/Install Components
G10117698Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove edge guard (1) in area of A-pillar paneling (2)
2 Press A-pillar paneling (2) off of A-pillar IMPORTANT Press A-pillar paneling (2) off of clips (arrows) toward inside.
INSTALLATION IMPORTANT Observe installation position of check strap.
3 Install in the reverse order
