Remove/install trim at C-pillar - AR68.30-P-4490GZ

MODEL 164

Shown on model 164.1

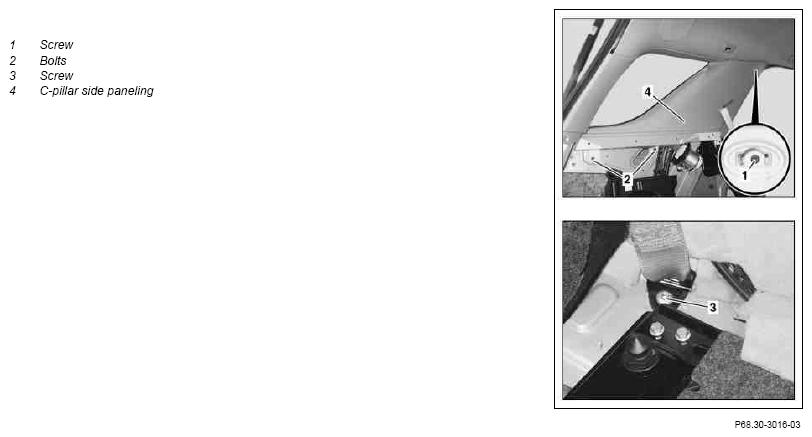

Fig 1: Identifying C-Pillar Trim Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

20.12.04

Bolt at seat belt fitting

*BA91.40-P-1001-01H

	Remove/install
1	Remove side paneling in trunk	Model 164.1	AR68.30-P-4800GZ
		Model 164.8	AR68.30-P-4800RT
2	Unclip cover and unscrew bolt (1) below.
3	Remove bolt (2)	In model 164.8 only one bolt.
4	Remove bolt (3) from belt end fitting at bottom.		*BA91.40-P-1001-01H
5	Unclip C-pillar side paneling (4), remove seat belt.	On model 164.1: Remove C-pillar side paneling (4) toward front and inside. Do not twist seat belt.
		Mounting wedge	Figure
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 164.1/8
BA91.40-P-1001-01H	Bolt at seat belt fitting	Nm	35

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
