Remove/install grab handle on roof - AR68.30-P-4330GZA

MODEL 164 Handhold on the roof, Rear

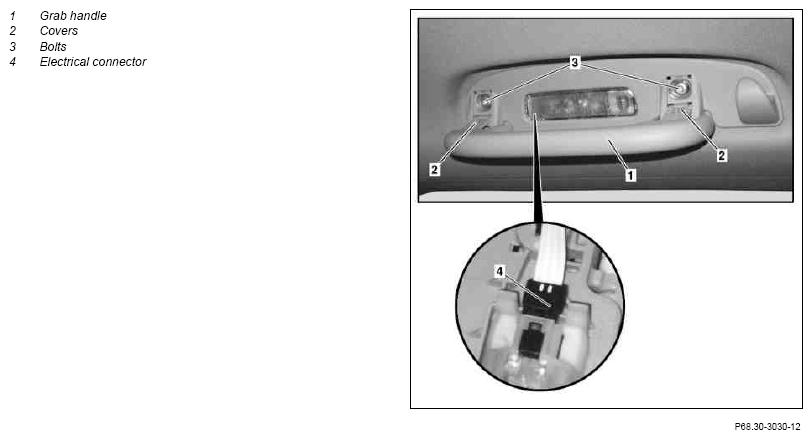

Fig 1: Identifying Roof Grab Handle Remove/Install Components
G10117709Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Pry off covers (2)
2 Remove screws (3)
3 Disconnect electrical connector (4)
4 Remove grab handle (1)
5 Install in the reverse order
