Remove/install front brake control cable - AR42.20-P-0520GZ

MODEL 164

Shown removed for better illustration

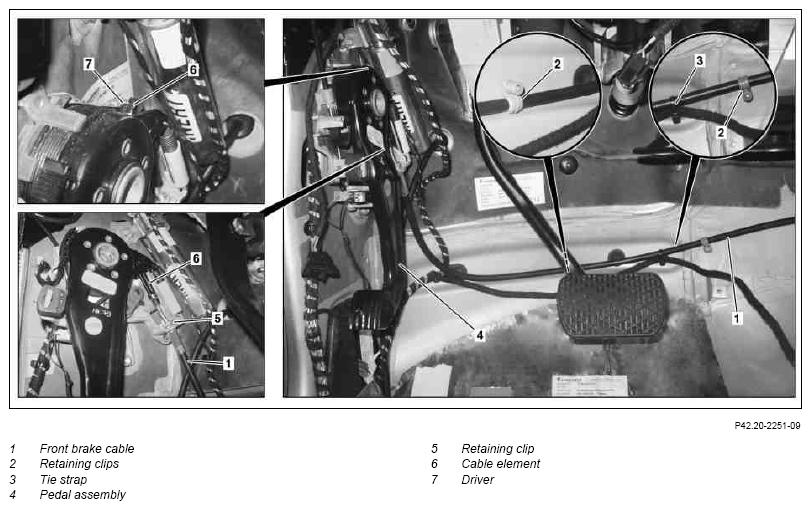

Fig 1: Identifying Front Brake Control Cable Remove/Install Component (1 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Front Brake Control Cable Remove/Install Component (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Front Brake Control Cable Remove/Install Component (3 Of 3)

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

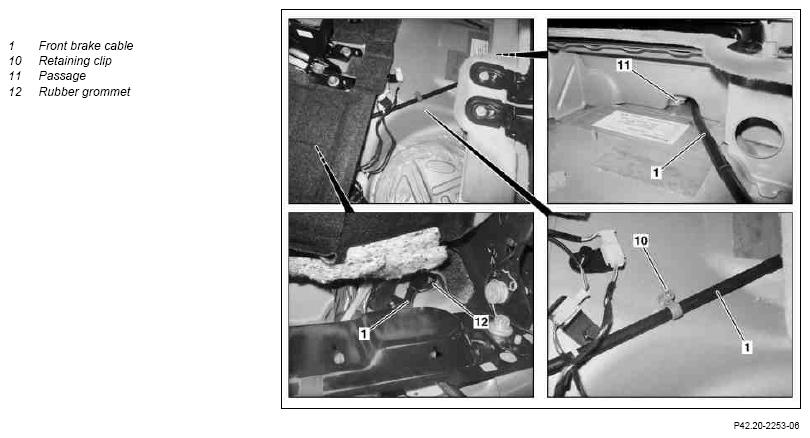

Fig 4: Identifying Front Brake Cable, Retaining Clip, Passage, Rubber Grommet (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Front Brake Cable, Retaining Clip, Passage, Rubber Grommet (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury caused by moving parts that can pinch, crush or  , in extreme cases even sever  extremities.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0009-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Remove door sill molding	Left front.	AR68.30-P-4100GZ
2	Remove cover below instrument panel		AR68.10-P-1500GZ
3	Remove paneling in footwell.	Left.	AR68.30-P-4010GZ
4	Remove center console		AR68.20-P-2000GZ
5	Remove front floor covering		AR68.20-P-2050GZ
6	Remove retaining clips (2)	Replace retaining clips.
7	Separate tie strap (3)	Install new tie straps.
8	Release parking brake	Beforehand secure vehicle to prevent it rolling away.
9	Remove securing clip (5) and withdraw front brake cable (1) out of pedal assembly (4)	When the parking brake is released the cable element (6) should be free to move and can easily be pulled out downwards from the pedal assembly. If the cable element (6) jams, once again ensure that the parking brake is released. Should the cable element (6) not be free to move despite the released parking brake, then the drive plate (7) is to be pressed away from the cable element (6) using a suitable screwdriver in order to loosen the teeth.

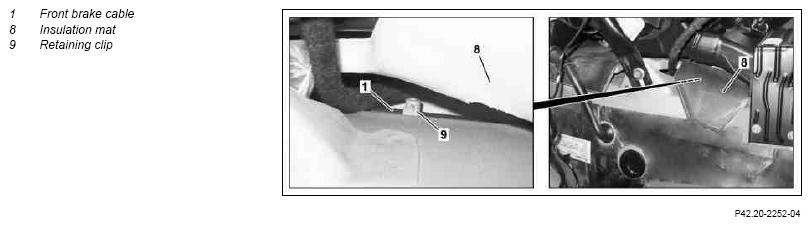

10	Push sound deadening mat (8) to one side and remove retaining clip (9)	Replace retaining clip.
11.1	Fold down the rear seats on the left and right and remove the cover under the rear seats	Model 164.1.
11.2	Remove the rear seat on the left and remove the cover under the rear seat	Model 164.8. Removal is necessary in order to loosen the fixing of the front brake cable (1). Pay attention to correct routing of the front brake cable (1) in the area under the rear seat on the left.	AR91.12-P-1000GYA
12	Fold down the rear seat on the right and place floor covering to one side	Model 164.8
13	Remove retaining clip (10)	Replace retaining clip.

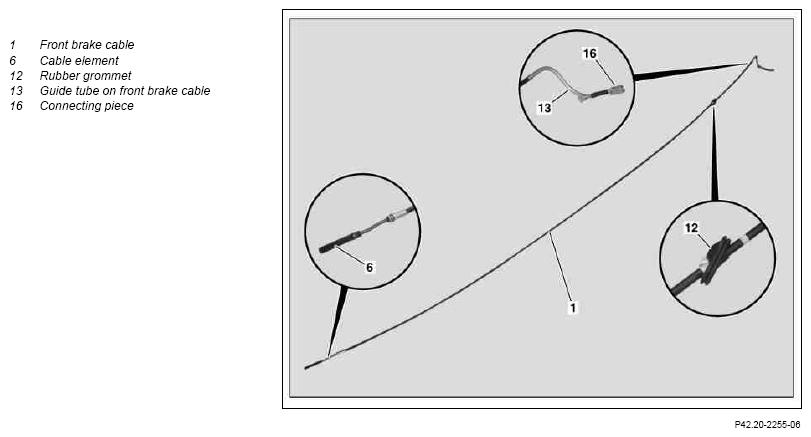

14	Prepare the pull-in cable and connect to the front brake cable (1)	Cut a suitable cable with sufficient cross section to a length of approx. 3 m. Fasten the pull-in cable on the cable element of the front brake cable and wrap using insulation tape onto attachment point.
15	Raise vehicle using two-post lift	Raise the vehicle entirely off the ground.	AR00.60-P-1000GZ
		Two-post lift	*WE58.40-Z-1001-05A

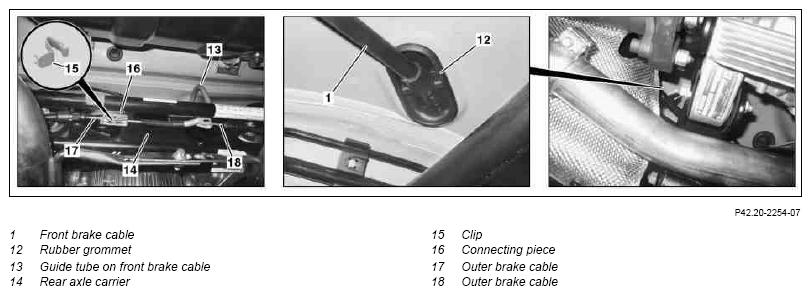

16	Remove (unhook) clip (15) from the connection piece (16) and detach the outer brake cable (17, 18) from the front brake cable (1)
17	Remove guide tube of front brake cable (13) from clip over the rear axle carrier
18	Lower vehicle	Half the height.	AR00.60-P-1000GZ
		Two-post lift	*WE58.40-Z-1001-05A
19	Remove front brake cable (1) to rear and out of vehicle	Loosen rubber grommet (12) from the body and pull out the front brake cable carefully to the rear. When doing so have an assistant route the front brake cable and pull-in cable along the transmission tunnel through the duct (11) and through the rear seat bracket. Do not damage the outer sleeve of the front brake cable by pulling it over sharp-edged components! The end of the pull-in cable must remain in the footwell on the driver-side! Fasten the pull-in cable on the cable element (6) of the front brake cable and wrap using insulation tape onto attachment point. Have someone assist you to pull-in the front brake cable. Carefully insert the front brake cable with the aid of the pull-in cable. Do not damage the outer sleeve of the front brake cable by pulling it over sharp-edged components! When pulling in the front brake cable proceed in two steps: Step one:  Pull-in the front brake cable in full length into the rear footwell and then insert the rubber grommet (12). Step two:  Route the front brake cable along the transmission tunnel and then place into its final installation position.
20	Install in the reverse order
	Checking
21	Engage and disengage parking brake pedal several times, then check the pedal travel (number of notches) of the parking brake pedal		*BE42.20-P-1001-01F
		If the pedal travel is not within the tolerance range: ↓
		Adjust parking brake	AR42.20-P-0540GZ
