Remove/install front floor covering (left) - AR68.20-P-2050GZ

MODEL 164

Front seat removed for better illustration. Shown on model 164.1

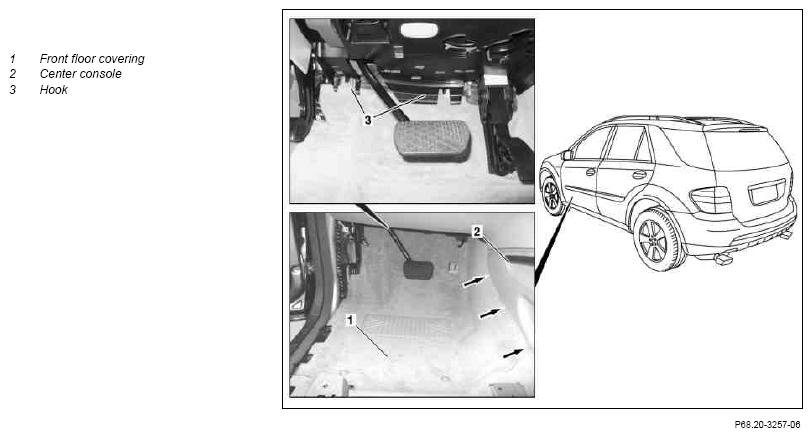

Fig 1: Identifying Front Left Floor Covering Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Drive front seat backwards	Only on left side
2	Remove paneling in footwell.	Only on left side	AR68.30-P-4010GZ
3	Remove accelerator pedal		AR30.12-P-1321GZ
4	Move out front floor coverings (1) below center console (2)	Carefully raise center console (2) with mounting wedge (arrows) to prevent damage
		Mounting wedge	Figure
5	Remove front floor coverings (1)	Remove toward outside through front door. Hook front floor covering (1) into hook (3).
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
