Remove/install paneling in footwell - AR68.30-P-4010GZ

MODEL 164

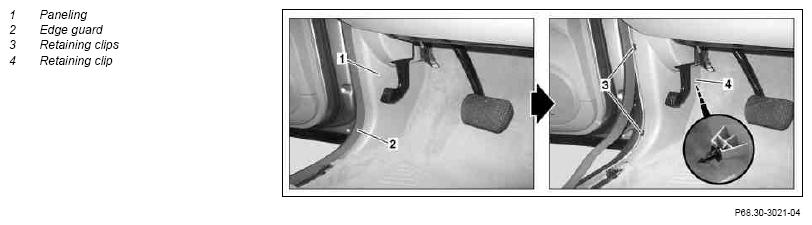

Fig 1: Identifying Footwell Paneling Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removal/installation
1	Remove door sill molding from left front door		AR68.30-P-4100GZ
2	Remove edge guard (2) in area of paneling (1)
3	Unclip paneling (1) from retaining clips (3) with mounting wedge	Mounting wedge	Figure
4	Pull out paneling (1) and remove	Guide must arrest in retaining clip (4)
5	Install in the reverse sequence

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
