Removing and installing rear seat - AR91.12-P-1000GYA

MODEL 164.8 60% rear seat

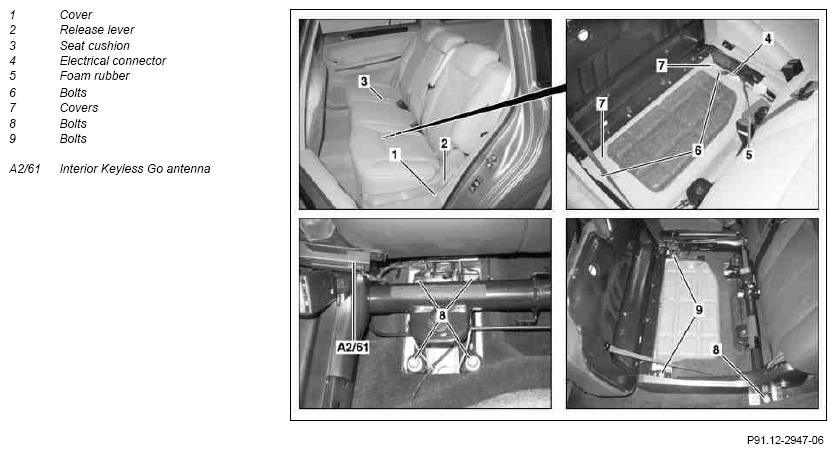

Fig 1: Identifying Rear Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2	Unclip cover (1)
3	Remove release lever (2)	Note lock washer.
4	Fold up seat cushion (3)
5	Disconnect electrical connector (4)
6	Remove foam material (5)
7	Remove bolts (6)
8	Remove covers (7)
9.1	Remove interior Keyless Go antenna (A2/61)	On vehicles with keyless go code 889. Do not disconnect electrically	AR82.62-P-8000GZ
10	Remove screws (8)		*BA91.12-P-1001-02D
11	Remove bolts (9)		*BA91.12-P-1002-03F
			*BA91.12-P-1003-03F
12	Remove 60% rear seat
13	Install in the reverse order

REAR SEAT BACKREST

Number	Designation		Model 164.1/8
BA91.12-P-1001-02D	Bolt for rear seat backrest to vehicle floor	Nm	90

REAR SEATS

Number	Designation		Model 164.8
BA91.12-P-1002-03F	Bolt, rear seat console to front of vehicle floor	Nm	50
BA91.12-P-1003-03F	Bolt, rear seat console to rear of vehicle floor	Nm	90
