Remove/install door sill molding - AR68.30-P-4100GZ

MODEL 164

Shown on right-hand side

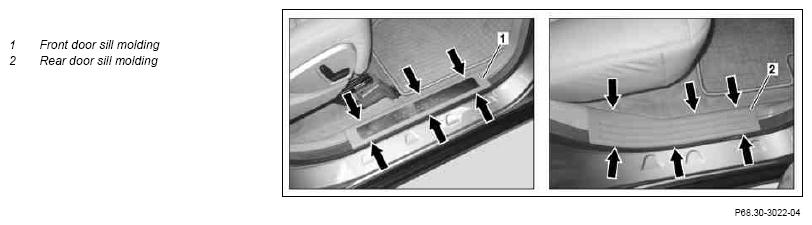

Fig 1: Identifying Door Sill Molding Remove/Install Components - Shown On Right-Hand Side

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely open front and rear door
2	Unclip front door sill molding (1) and rear door sill molding (2) upward from retaining clips (arrows) by hand and remove.	Replace damaged retaining clips.
3	Install in the reverse order
