Remove/install center console - AR68.20-P-2000GZ

MODEL 164

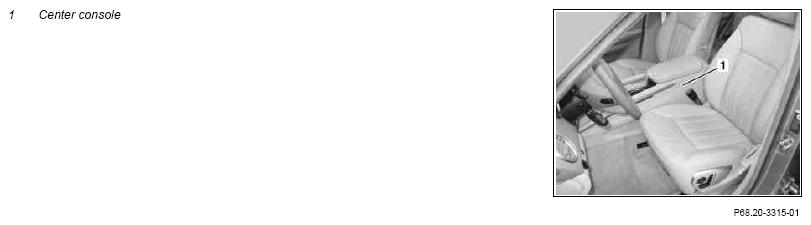

Fig 1: Identifying Center Console

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with USA version, code 494

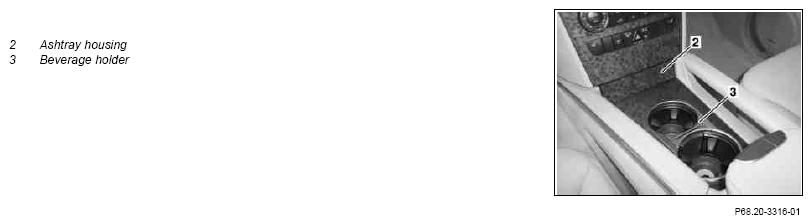

Fig 2: Identifying Ashtray Housing And Beverage Holder - Shown On Vehicle With USA Version (Code 494)

Courtesy of MERCEDES-BENZ USA

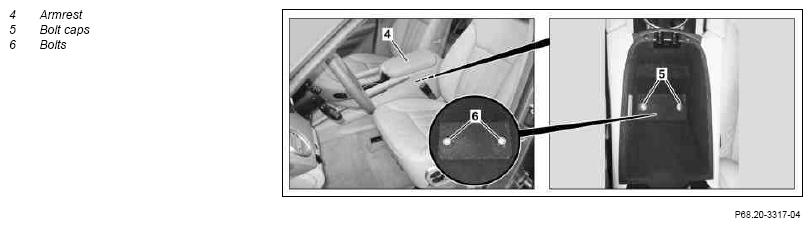

Fig 3: Identifying Armrest, Bolt Caps And Bolts

Courtesy of MERCEDES-BENZ USA

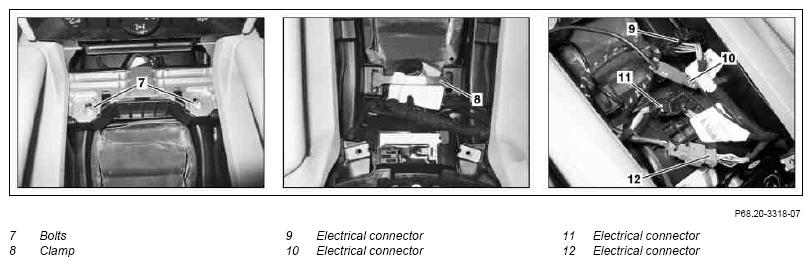

Fig 4: Identifying Center Console Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove ashtray housing (2) at front on center console (1)	Check ashtray housing mechanism (2) for proper function, if necessary loosen threaded connection of center console (1) and tighten center console (1) without tension.	AR68.20-P-2400GZ
2	Remove front beverage holder (3)		AR68.20-P-2240GZ
3	Completely move front seats toward rear
4	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with code 889 Keyless-Go: Press Keyless-Go start/stop button repeatedly until the ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
5	Unlock armrest cover and position vertically
6	Unclip bolt caps (5)		Figure
7	Remove bolts (6)	Ensure that center console (1) is installed without tension.
8	Remove bolts (7)	Ensure that center console (1) is installed without tension.
9	Unclip clip (8)	Unclip upward.
10	Disconnect electrical connector (9, 10, 11, 12)
11	Pull center console (1) toward rear, lift and remove	Remove through front door.
12	Install in the reverse order

Fig 5: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
