Remove/install front axle - AR33.10-P-0100T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211 (except 211.08/09/28/29)

Shown on model 211 with steel suspension

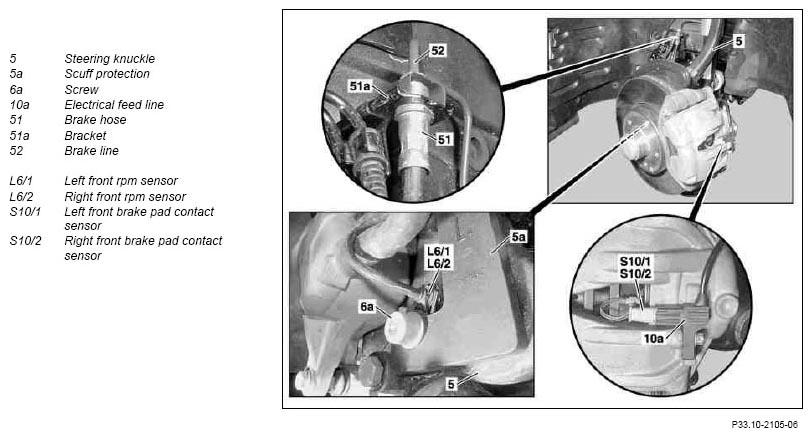

Fig 1: Identifying Front Axle Components (1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 211 with steel suspension

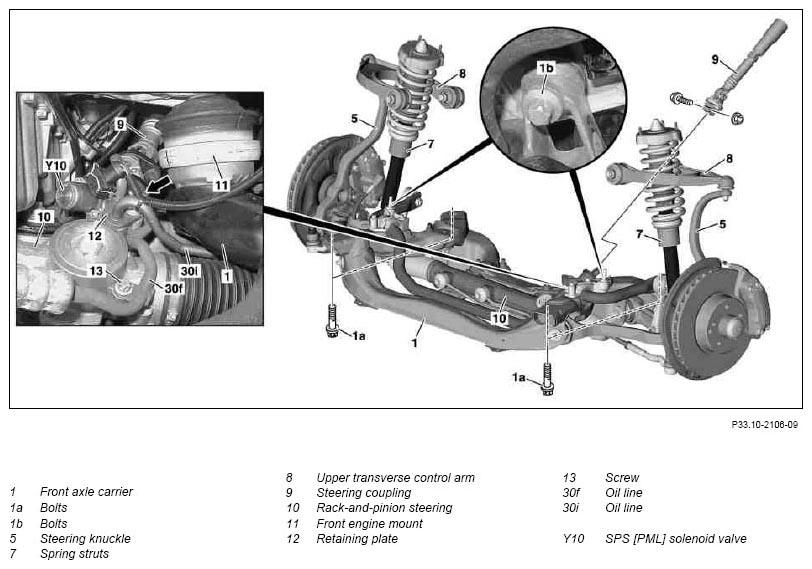

Fig 2: Identifying Front Axle Components (2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

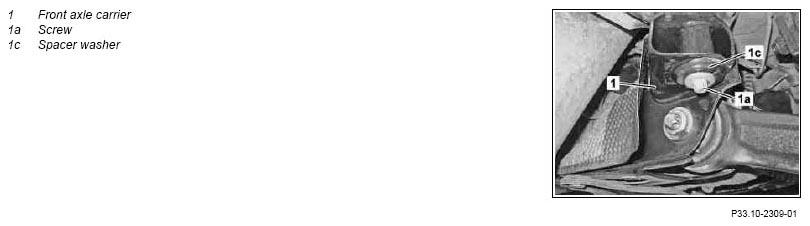

Fig 3: Identifying Front Axle Components (3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

19.6.08

Value changed: Brake line to brake hose

*BA42.10-P-1001-04A

	Remove/install
	Risk of injury caused by body parts being jammed or crushed. Risk of injury to skin and eyes caused by brake fluid spraying out at high pressure when working on the SBC brake system	Deactivate SBC brake system using STAR DIAGNOSIS.	AS42.46-Z-0001-01A
	Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid	Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Before opening the SBC system, thoroughly clean the surrounding area of the separation point. Even minute particles of dirt, introduced into the hydraulic components, can result in malfunctions and a total failure of the SBC system
	When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected
Installation	Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition.
1	Deactivate easy entry/exit function	Vehicles with code 275, Memory package (driver seat, steering column, mirrors) Otherwise the driver seat and steering wheel move into a different position if the driver door is opened or closed for example. The upper frame may be damaged when the holding device is installed. Deactivation is done using the buttons on the steering wheel in the "comfort" menu of the multifunction display; see operator's manual.
1	Deactivate easy entry/exit function	Holding device	*129589012100
2	Deactivate SBC brake system using STAR DIAGNOSIS.	Vehicles with Sensotronic Brake Control (SBC) The following steps should be run through in STAR DIAGNOSIS: Select menu item "SBC Sensotronic Brake Control"/"Deactivate 'SBC' system". Then process all the individual steps from top to bottom. STAR DIAGNOSIS diagnosis system
3	Empty front suspension struts (7) using STAR DIAGNOSIS	Vehicles with code 489 Airmatic (semi-active air suspension)
	Notes on AIRmatic		AH32.22-P-1000-02T
	Notes on AIRmatic	STAR DIAGNOSIS diagnosis system	AH32.22-P-1000-02T
4	Turn front wheels to straight-ahead position and secure steering wheel with holding device	On a disengaged steering coupling (9) the steering wheel should not be turned because the spiral contact coil will be destroyed. Swivel sun visor to side and insert retainer.
4		Holding device	*129589012100
5.1	Remove trim panels of the cylinder head cover and of the charge air manifold	Engines 646, 647	AR01.20-P-5014-02A
		Engine 648	AR01.20-P-5014-02C
			*BA01.20-P-1002-01G
			*BA01.20-P-1003-01G
5.2	Remove air filter housing with air ducts	Engines 112, 113.967 Pull air filter housing vertically upwards off the rubber retainers on the cylinder head covers. Installation: Engine 112, 113.967: Rub liquid lubricant into rubber holder on cylinder head covers and sealing ring of hot film mass air flow sensor in the air filter housing.
		Engine 272, 273	AR09.10-P-1150TS
		Engine 271	AR09.10-P-1150Q
		Engine 113.990	AR09.10-P-1150SVK
		Engine 628	AR09.10-P-1150TD
		Engine 629	AR09.10-P-1150TJ
		Engine 642	AR09.10-P-1150TI
		Engine 156	AR09.10-P-1150TMG
		Lubricant paste	*BR00.45-Z-1002-06A
6	Mount engine support frame and raise engine		AR33.10-P-0100-01T
		Use optionally:
		Engine hoist Engine lifting fixture http://gotis.aftersales.mercedes-benz.com	*240589006100
7	Suction off oil from expansion reservoir of power steering	Hand pump	*210589007100
8	Remove the front wheels
	Remove/install wheels		AP40.10-P-4050Z
9	Installing protective washers to protect brake disk dust shields		AR42.00-P-0100-01A
9		Guard plates	*220589013100
10	Remove left front RPM sensor (L6/1) and right front RPM sensor (L6/2) from steering knuckles (5) and hang to one side	Vehicles without AIRmatic To do this, remove bolts (6a) and unclip electrical feed lines for left and right front RPM sensors from retaining clips. Installation: Note correct installation position; the scuff protection (5a) has to be bolted to the RPM sensor as illustrated. It must not be mounted between the RPM sensor and steering knuckle.
10		Self-locking bolt, front axle RPM sensor to steering knuckle	*BA42.30-P-1001-01A
11	Disconnect left front brake pad contact sensor (S10/1) and right front brake pad contact sensor (S10/2) at connectors.	Vehicles without AIRmatic
12	Remove electrical feed lines (10a) of the front brake pad contact sensors on left and right from the brake calipers	Vehicles without AIRmatic
12		Bolt, brake pad contact sensor to brake caliper	*BA42.10-P-1003-10H
	Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
13	Unscrew brake lines (52) on the left and right from the brake hoses (51) and seal openings	Seal off line connections immediately with plugs. The brake fluid expansion reservoir must not be allowed to run completely empty. When releasing or fastening the brake line on the brake hose, make sure that its bracket (51a) is not twisted. Use an open-end wrench as a countersupport on the sides of the brake hose fitting. Installation: The brake hoses must not be twisted after being tightened (danger of cracking).
	Notes on installing brake hoses		AH42.10-P-9406-01A
		Brake line to brake hose	*BA42.10-P-1001-04A
		Box wrench bit	*000589750300
		Set of stop plugs	*129589009100
14	Remove front suspension struts (7).	Vehicles with code 489 Airmatic (semi-active air suspension)	AR32.25-P-1017TA
14	Remove front suspension struts (7).	Vehicles without code 489 Airmatic (semi-active air suspension)	AR32.25-P-1017TS
15	Unplug electrical connectors for left and right front brake pad contact sensors and left and right front RPM sensors	Vehicles with code 489 Airmatic (semi-active air suspension)	AR42.10-P-1040-04TV
16	Detach upper transverse control arm (8) from front end		AR33.20-P-0500T
17.1	Remove bottom section of soundproofing	Vehicles with diesel engine Installation: Do not install bottom section of soundproofing until after rack-and-pinion steering (10) has been checked for leaks.	AR94.30-P-5300T
17.2	Remove bottom engine compartment paneling	Vehicles with gasoline engine Installation: Do not install the engine compartment paneling until after the rack-and-pinion steering (10) has been checked for leaks.	AR61.20-P-1105T
18	Pull steering coupling (9) off rack-and-pinion steering (10).		AR46.10-P-8000T
19	Detach left and right front engine mount (11) from front axle carrier (1).	Bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03A
20	Separate electrical connector from SPS [PML] solenoid valve (Y10)	Vehicles with code 213 Speed-sensitive power steering	*BA22.10-P-1002-03A
21	Remove cable tie (arrow) and place electric feed line of SPS [PML] solenoid valve (Y10) to the side	Vehicles with code 213 Speed-sensitive power steering
22	Detach retaining plate (12) and bolt (13) from rack-and-pinion steering (10)	Bolt, oil line retaining plate to rack-and-pinion steering	*BA46.20-P-1001-01F
23	Pull oil lines (30f, 30i) out of rack-and-pinion steering (10) and place aside	Before opening the hydraulic circuit of the rack-and-pinion steering, thoroughly clean the surrounding area of the separation point. Even the smallest particles of dirt, introduced into the hydraulic components, can lead to malfunctions of the rack-and-pinion steering. Collect escaping hydraulic fluid in a container and seal line connections with stop plugs. Installation: Replace O-rings.
23		Set of stop plugs	*129589009100
24	Support and secure the front subframe (1) with the transmission jack and transmission plate	Transmission platform, transmission jack, refer to GOTIS http://gotis.aftersales.mercedes-benz.com	AR33.10-P-0100-03T
25	Remove bolts (1a, 1b)	Rear threaded connection when replacing front axle carrier: For a front axle carrier without welded-on shim (1c) a washer with groove (refer to EPC) is required between the bolt (1a) and the front axle carrier (1). For a front axle carrier using welded-on shim (1c) an additional washer must not be used.
			*BA33.10-P-1005-01A
			*BA33.10-P-1004-01A
26	Lower front axle carrier (1)
27	Check front axle for damage, replace damaged parts
28	Install in the reverse order
29	Fill power steering pump and bleed	Engine 271, 628, 629, 646, 647, 648	AR46.30-P-0010T
		Engines 112, 113, 642	AR46.30-P-0010P
		Engines 272, 273, 156	AR46.30-P-0010TS
30	Perform engine test run and check rack-and-pinion steering (10) for leaks
31.1	Bleed brake system with STAR DIAGNOSIS	Vehicles with Sensotronic Brake Control (SBC) The following steps should be run through in STAR DIAGNOSIS: Select menu item "Initial startup after repair"/"After opening or exchanging one or more brake hoses". Then process all the individual steps from top to bottom. When performing the bleeding operation always observe the instructions in the document "Bleeding brake system using STAR DIAGNOSIS". STAR DIAGNOSIS diagnosis system	AR42.10-P-0012R
31.2	Bleed brake system	Vehicles with Adaptive Brake (ABR)	AR42.10-P-0010T
32	Perform a wheel alignment check		AR40.20-P-0200T

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation		Engine 646.951/961, 647.961	Engine 648
BA01.20-P-1002-01G	Bolt, cylinder head cover trim to cylinder head	Nm	9	9
BA01.20-P-1003-01G	Bolt, cover to charge air manifold.	Nm	9	9

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 211 except 4 MATIC
BA22.10-P-1002-03A	Front engine mount to front axle carrier	Nm	35

FRONT AXLE CARRIER

Number	Designation		Model 211 except model 211.08/09/28/29
BA33.10-P-1004-01A	Bolt, retaining bracket to front end	Nm	50
BA33.10-P-1005-01A	Bolt, front axle carrier to longitudinal member	Nm	100

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 211 except model 211.076/077/276/277	Model 211.076/077/276/277
BA42.10-P-1003-10H	Bolt, brake pad contact sensor to brake caliper	Nm	8	8

BRAKE LINES, BRAKE HOSES

Number	Designation		Model 211 with SBC	Model 211 with ABR [Adaptive Brake]
BA42.10-P-1001-04A	Brake pipe to brake hose	Nm	18	18

FRONT AXLE RPM SENSOR

Number	Designation		Model 211 except model 211.08/09/28/29
BA42.30-P-1001-01A	Self-locking bolt, front axle RPM sensor to steering knuckle	Nm	25

STEERING GEAR

Number	Designation		Model 211 except 211.08/09/28/29
BA46.20-P-1001-01F	Bolt, oil line retaining plate to rack-and-pinion steering	Nm	18

Fig 4: Identifying Holding Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Box Wrench Bit (000 589 75 03 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Identifying Engine Lifting Fixture (240 589 00 61 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Identifying Guard Plate (220 589 01 31 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
