Remove/install the suspension strut - AR32.25-P-1017TS
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2 (except 211.08/09/28/29) except CODE (489) Airmatic (semi-active air suspension)
MODEL 230 except CODE (487) Active Body Control (ABC) except CODE (P99) Special model "AMG Black Series"
MODEL 211.6
Shown on model 211
MODIFICATION NOTES
| 18.3.08 | Value changed: Nut, front suspension strut to front end | Model 211 steel suspension | *BA32.25-P-1001-04B |
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected | |||
| Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition. | |||
| 1 | Position wheels straight ahead | ||
| 2 | Remove front wheel | ||
| Remove/install wheels | AP40.10-P-4050Z | ||

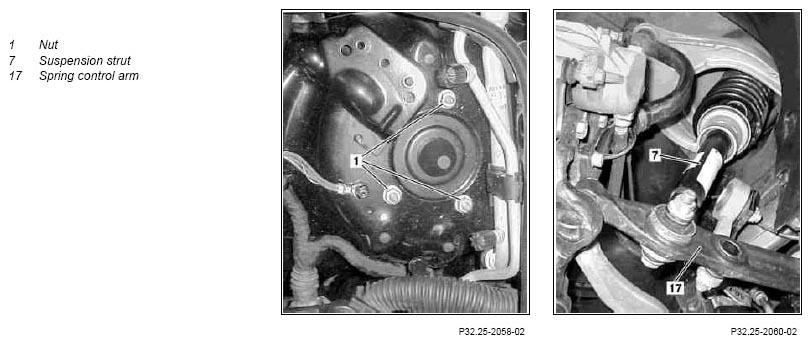

| 3 | Unscrew nuts (1). | *BA32.25-P-1001-04B | |
| 4 | Detach suspension strut (7) from spring control arm (17) | *BA32.25-P-1002-04B | |
| *BA32.25-P-1007-04B | |||
| 5 | Press spring control arm (17) downwards and remove spring strut (7) towards the rear | ||
| 6 | Install in the reverse order | ||
| 7 | Check headlamp adjustment and correct if necessary | After installing new parts | |
| Check and correct the adjustment of the headlamps | Model 211 | AP82.10-P-8260T | |
| Model 230 | AP82.10-P-8260R |
SUSPENSION STRUTS
| Number | Designation | Model 211 steel suspension | Model 230 except code P99 | |
|---|---|---|---|---|
| BA32.25-P-1001-04B | Nut, front suspension strut to front end | Nm | 30 | 20 |
| BA32.25-P-1002-04B | Bolt, front suspension strut to spring control arm | Nm | 165 | - |
| BA32.25-P-1007-04B | Nut, front suspension strut to spring control arm | Nm | - | 110 |
