Disconnect electrical connector - AR42.10-P-1040-04TV

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press detent (1) upwards with screwdriver and pull RPM sensor connector (signals) (X62) out of the bracket (2) in the direction of the arrow.
  2. Press detent (3) upwards with screwdriver and pull left front brake pad contact sensor connector (S10/1x1) and right front brake pad contact sensor connector (S10/2x1) out of the bracket (2) in the direction of the arrow.

    Illustration in mirror reverse to front right longitudinal member

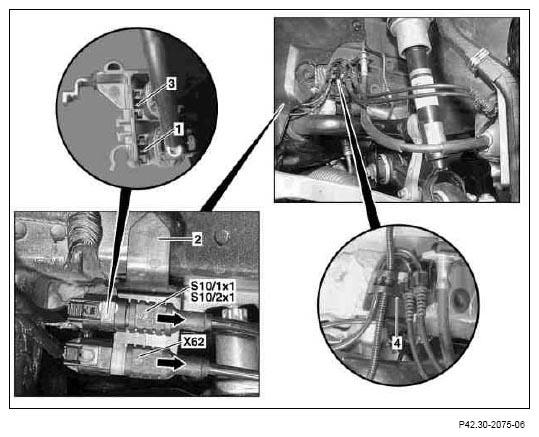

    Fig 1: Pulling Left/Right Front Brake Sensor Connectors Out Of Bracket
    G07249385Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Unlock and disconnect RPM sensor connector (signals) (X62) and brake pad contact sensor.
  4. Unclip electrical cable from bracket (4) on side member.

    IMPORTANTInstallation:  Ensure lines are installed correctly.
