Bleed brake system - AR42.10-P-0010T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211, 219 with Adaptive Brake (ABR)

MODEL 230 with CODE (P99) Special model "AMG Black Series"

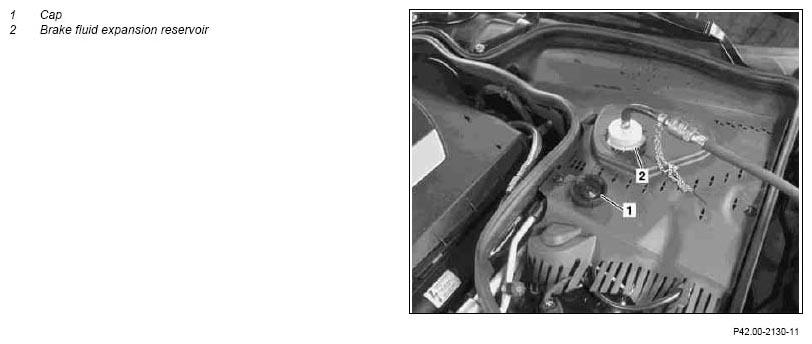

Fig 1: Identifying Cap And Brake Fluid Expansion Reservoir
G07283952Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

5.8.10 Operation step 1 and 8 added
REMOVINGINSTALLING Remove/install
DANGER Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes. Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
NOTES Brake fluid notes   AH42.50-P-0001-01A
CLEAN Clean
1 Remove cover on brake fluid expansion reservoir (2) IMPORTANT Only for vehicles with cover on brake fluid expansion reservoir (2).
2 Clean area around cap (1)
3 Unscrew cap (1). TORQUE SPECIFICATION *BA42.50-P-1001-01D
4 Add new brake fluid up to the "MAX." mark in the expansion reservoir (2)
5 Connect the brake fluid change unit to the expansion reservoir (2) and switch on IMPORTANT Pay attention to manufacturer's operating instructions.
Brake fluid changer with reservoir (10-20 l) gotis://B_42/43.2_01.1
6 Remove the front wheels Vehicles with 6-piston or 8-piston brake calipers
REFER TO MAINTENANCE Remove/install wheels Models 211, 230 AP40.10-P-4050Z
REFER TO MAINTENANCE Model 219 AP40.10-P-4050TX
7 Carrying out bleeding operation Model 211, 219 AR42.10-P-0010-02SX
TORQUE SPECIFICATION *BA42.10-P-1002-10H
TORQUE SPECIFICATION *BA42.10-P-1002-10B
TORQUE SPECIFICATION *BA42.10-P-1001-12H
TORQUE SPECIFICATION *BA42.10-P-1001-12B
Model 230 AR42.10-P-0010-02RBS
TORQUE SPECIFICATION *BA42.10-P-1002-10B
TORQUE SPECIFICATION *BA42.10-P-1001-12B
8 Bleed clutch operating system IMPORTANT Only on vehicles with manual transmission, when the brake fluid level in the brake fluid expansion reservoir (2) has dropped below the hose outlet for the clutch master cylinder. AR25.20-P-0070P
9 Install in the reverse order
INSPECT Checking
10 Check brake system for leaks Model 211, 219
Model 230		 AR42.10-P-0100-01V
11 Correct fluid level in expansion reservoir (2)
REFER TO MAINTENANCE Brake system - inspect fluid level Models 211, 230 AP42.10-P-4210Z
REFER TO MAINTENANCE Model 219 AP42.10-P-4210TX
BRAKE SYSTEM HYDRAULICS

Number Designation Model 211, 230, 240 Model 219
BA42.50-P-1001-01D Cap to brake fluid expansion reservoir Nm ≈2 ≈2
FRONT AXLE BRAKE CALIPER

Number Designation Model 211 except model 211.076/077/276/277 Model 211.076/077/276/277
BA42.10-P-1002-10H Bleed screw to brake caliper Nm 14 14
FRONT AXLE BRAKE CALIPER

Number Designation Model 219.372/376/377 Model 219.322/354/356/357/375
BA42.10-P-1002-10B Bleed screw to brake caliper Nm 14 14
FRONT AXLE BRAKE CALIPER

Number Designation Model 230.479 with code P99
BA42.10-P-1002-10B Bleed screw to brake caliper Nm 7
REAR AXLE BRAKE CALIPER

Number Designation Model 211 except model 211.076/077/276/277 Model 211.076/077/276/277
BA42.10-P-1001-12H Bleed screw to brake caliper Nm 14 14
REAR AXLE BRAKE CALIPER

Number Designation Model 219 Model 230.479 with code P99
BA42.10-P-1001-12B Bleed screw to brake caliper Nm 14 7
