Remove/install the suspension strut - AR32.25-P-1017TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2 (except 211.08/09/28/29) with CODE (489) Airmatic (semi-active air suspension)

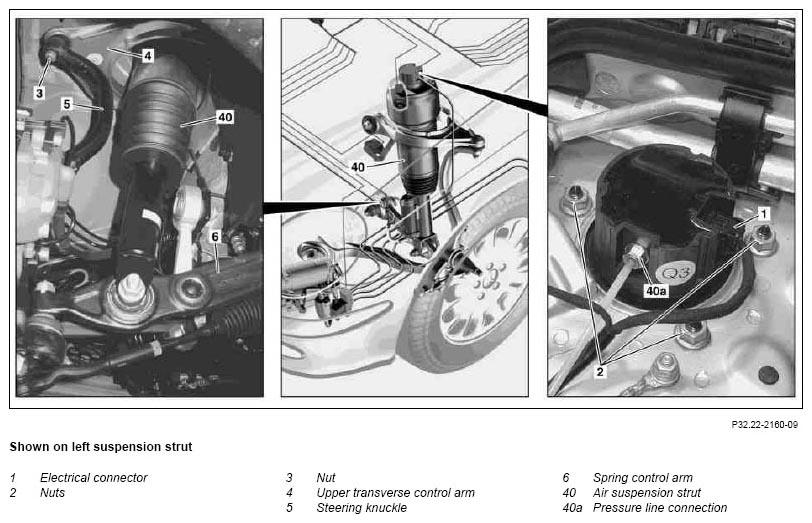

Shown on left suspension strut
MODIFICATION NOTES
| 9.8.08 | SWZ 140 589 00 33 00 for prying off upper ball joint added | Step 3 | AR33.20-P-0500-01N |
| Remove/install | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases, even sever extremities | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| When working on the front-end assembly, be careful not to scratch, mark or notch the surfaces of aluminum parts. Otherwise the service life of the parts will be affected | |||
| Only tighten nuts and bolts of chassis components when vehicle is in a ready-to-drive condition. | |||
| 1 | Position wheels straight ahead | ||
| 2 | Remove front wheel | ||
| Remove/install wheels | AP40.10-P-4050Z | ||
| 3 | Relieve the pressure from the air suspension strut (40) using STAR DIAGNOSIS until the residual pressure is reached | ||
| Notes on AIRmatic | AH32.22-P-1000-02T | ||
| 4 | Disconnect electrical connector (1) at the top of the shift valve | ||
| 5 | Detach pressure line connection (40a) | ||
| AR32.22-P-2001-02I | |||
| *BA32.25-P-1003-04B | |||
| *211589000900 | |||
| 6 | Unscrew nuts (2) of air suspension strut (40) to front end | *BA32.25-P-1001-04B | |
| 7 | Remove fender liner front section in front fender | AR88.10-P-1310T | |
| 8 | Disconnect electrical connector for damping valve unit | AR32.22-P-1500-01TV | |
| 9 | Unscrew nut (3) and press upper ball joint out of steering knuckle (5) | AR33.20-P-0500-01N | |
| *210589046300 | |||
| *202589023300 | |||
| *140589003300 | |||
| *BA33.20-P-1018-01A | |||
| 10 | Detach air suspension strut (40) from spring control arm (6) | ||
| 11 | Press down spring control arm (6), detach air suspension strut (40) from spring control arm (6) and remove sideways and downwards | ||
| Check minimum installed length of air suspension struts and replace air suspension struts if necessary. | AR32.25-P-1017-02T | ||
| Dispose of suspension strut. | OS32.25-P-0122-01J | ||
| 12 | Install in the reverse order | ||
| 13 | Charge relevant air suspension strut (40) using STAR DIAGNOSIS to 5 bar | ||
| 14 | Tighten threaded connection of air suspension struts (40) on spring control arm (6) to curb condition | ||
| *BA32.25-P-1007-04B | |||
| 15 | Check AIRmatic for leaks. | AR32.22-P-8100T |
SUSPENSION STRUTS
| Number | Designation | Model 211 Airmatic | |
|---|---|---|---|
| BA32.25-P-1001-04B | Nut, front suspension strut to front end | Nm | 30 |
| BA32.25-P-1003-04B | Air suspension pressure line to front suspension strut | Nm | 2 |
| BA32.25-P-1007-04B | Nut, front suspension strut to spring control arm | Nm | 165 |
WHEEL LOCATION, HUB
| Number | Designation | Model 211 except 211.08/09/28/29 | ||
|---|---|---|---|---|
| BA33.20-P-1018-01A | Self-locking nut, upper wishbone follower joint to steering knuckle | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
