Remove/install camshafts - AR05.20-P-6992GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 in MODEL 164, 251

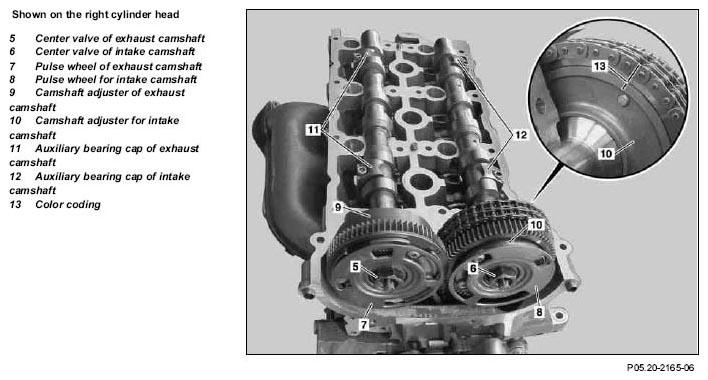

Fig 1: Identifying Camshafts Components (Model 164, 251)
G05257420Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

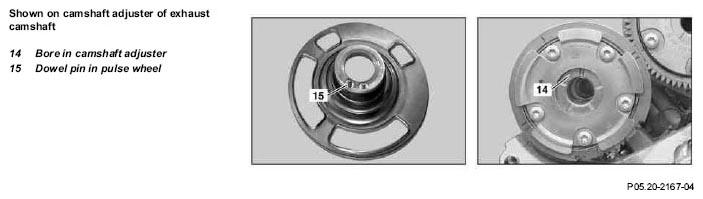

Fig 2: Identifying Camshaft Adjuster And Pulse Wheel
G05257421Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

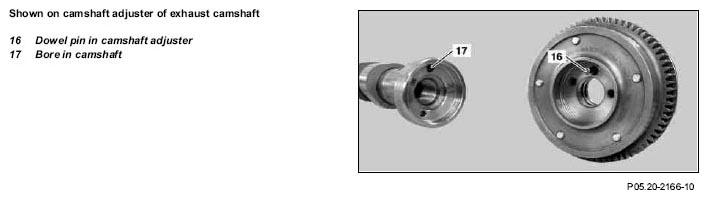

Fig 3: Identifying Camshaft Adjuster And Camshaft
G05257422Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
MODIFICATION NOTES

14.9.07 Use the Torx screwdriver bit T60 to counterhold camshafts, added   AR05.20-P-7201-06VA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
1 Remove air filter housing   AR09.10-P-1150GZA
2 Remove front covers from cylinder heads Right front cover AR01.30-P-5700GZC
    Left front cover AR01.30-P-5700GZA
3 Remove centrifuge   AR01.20-P-2100GZA
4 Turn engine at crankshaft in direction of engine rotation to 40° after ignition TDC and check position of camshafts   AR05.20-P-6010-01VB
5 Lock the gear backlash compensation of the exhaust camshaft adjuster (9) at the exhaust camshafts NOTES The tooth flanks are held against each other by spring pressure and should not be skewed, otherwise the exhaust camshaft adjuster (9) will be irreparably damaged AR05.20-P-7201-05VA
6 Loosen exhaust camshaft center valve (5) and intake camshaft center valve (6) IMPORTANT Observe loosening direction. When loosening the center valve of the exhaust camshaft (5) and the center valve of the intake camshaft (6), counterhold the camshafts at the rear. Do not remove the exhaust camshaft center valve (5) and intake camshaft center valve (6) AR05.20-P-7201-06VA
    TORQUE SPECIFICATION *BA05.20-P-1009-02A
7 Remove cylinder head covers Left cylinder head cover AR01.20-P-5013GZA
    Right cylinder head cover AR01.20-P-5012GZA
8 Remove the center valve (5) of the exhaust camshaft, and remove the exhaust camshaft pulse wheel (7) INSPECT Check exhaust camshaft (7) pulse wheel for a sheared off pulse wheel (15) dowel pin or pin. Remove the sheared pin or the pulse wheel dowel pin (15) from the exhaust camshaft adjuster (9).
NOTESInstallation:  Always replace exhaust camshaft pulse wheel (7). When tightening the exhaust camshaft center valve (5), there is a risk of shearing off the dowel pin (15) and pin at the exhaust camshaft pulse wheel (7).
IMPORTANTInstallation:  Before assembling, coat the exhaust camshaft center valve (5) at the contact surface with the exhaust camshaft pulse wheel (7) with oil.
IMPORTANTInstallation:  Align the pulse wheel dowel pin (15) at the exhaust camshaft pulse wheel (7) with the camshaft adjuster bore (14) in the exhaust camshaft adjuster (9).
9 Counterhold the exhaust camshafts at the rear and pull out the exhaust camshaft adjuster (9) towards the front IMPORTANTInstallation:  Align the camshaft adjuster dowel pin (16) in the exhaust camshaft adjuster (9) with the bore (17) in the exhaust camshaft.
10 Detach the auxiliary bearing cap (11) of the exhaust camshaft and remove the exhaust camshafts TORQUE SPECIFICATION *BA05.20-P-1010-02A
11 Identify the timing chain with respect to the camshaft adjuster (10) of the intake camshaft with color coding (13) IMPORTANT Engine positioned at 40° crankshaft angle after ignition TDC.
IMPORTANTInstallation:  Check the position of the intake camshaft using the color coding (13).
12 Remove chain tensioner Chain tensioner using thread M24 x 1.5 (only for engine 272) AR05.10-P-7800GZA
    Chain tensioner using thread M22 x 1.5
IMPORTANT In case of engine 272, both chain tensioners can be removed whereby for engine 273 only chain tensioner with thread M22 x 1.5 is installed.		 AR05.10-P-7800GZG
13 Remove tensioning rail bolt IMPORTANTInstallation:  When installing, coat the tensioning rail bolt with sealing compound. AR01.30-P-5800-04V
    SPECIAL TOOL Fig 5
    SPECIAL TOOL Fig 4
    Sealant *BR00.45-Z-1013-01A
14 Pull tensioning rail upward and out of engine
15 Remove the center valve (6) of the intake camshaft and remove the intake camshaft pulse wheel (8) INSPECT Check at the intake camshaft pulse wheel (8) whether the pulse wheel dowel pin (15) or the pin has been sheared off. Remove the sheared pin or pulse wheel dowel pin (15) from the intake camshaft adjuster (10).
NOTESInstallation:  Always replace intake camshaft pulse wheel (8). When tightening the intake camshaft center valve (6), there is a risk of shearing off the dowel pin (15) and pin at the intake camshaft pulse wheel (8).
IMPORTANTInstallation:  Before assembling, coat the intake camshaft center valve (6) at the contact surface with the intake camshaft pulse wheel (8) with oil.
IMPORTANTInstallation:  Align the pulse wheel dowel pin (15) at the intake camshaft pulse wheel (8) with the camshaft adjuster bore (14) in the intake camshaft adjuster (10).
16 Pull out the intake camshaft adjuster (10) towards the front IMPORTANTInstallation:  Align the intake camshaft adjuster (10) with the color coding marking (13) made on the timing chain and intake camshaft adjuster (10). Align the camshaft adjuster fitted pin (16) in the intake camshaft adjuster (10) to the fitted hole for the camshaft (17) in the intake camshaft.
17 Remove the intake camshaft auxiliary bearing cap (12) and remove the intake camshafts TORQUE SPECIFICATION *BA05.20-P-1010-02A
18 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
19 Carry out an engine test run and check engine for leaks
CAMSHAFT, CAMSHAFT ADJUSTMENT

Number Designation Engine 272 Engine 273
BA05.20-P-1009-02A Center valve for pulse wheel/camshaft adjuster to camshaft Nm 145 145
BA05.20-P-1010-02A Bolt, auxiliary bearing cap to cylinder head Nm 8 8
Fig 4: Identifying Impact Extractor (116 589 20 33 00)
G05257423Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Threaded Stud (116 589 01 34 00)
G05257424Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite 5970 sealant A 003 989 98 20
