Inspect basic position of camshaft - AR05.20-P-6010-01VB

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

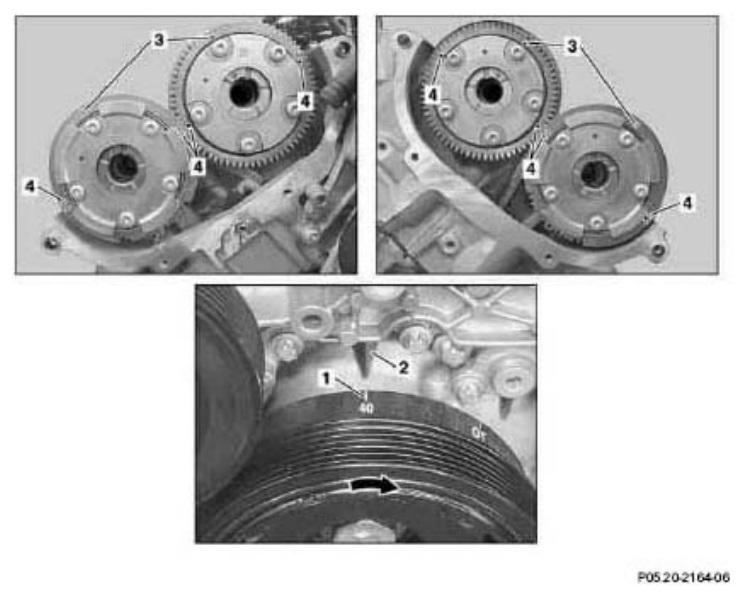

Shown without pulse wheels on the camshaft adjusters

  1. Crank the engine at the crankshaft in Turn the direction of engine rotation (arrow) to 40° crank angle after ignition TDC.

    IMPORTANT The 40° marking (1) on the belt pulley must be aligned with the positioning edge (2) on the timing case cover.

    The markings (3) on the camshaft adjusters face upward, and the markings (4) align with the contact surfaces on the cylinder head covers.

    Fig 1: Inspecting Basic Position Of Camshaft
    G04731909Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
