Remove/install front cover on right cylinder head - AR01.30-P-5700GZC (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

Right cylinder head

Shown without air filter

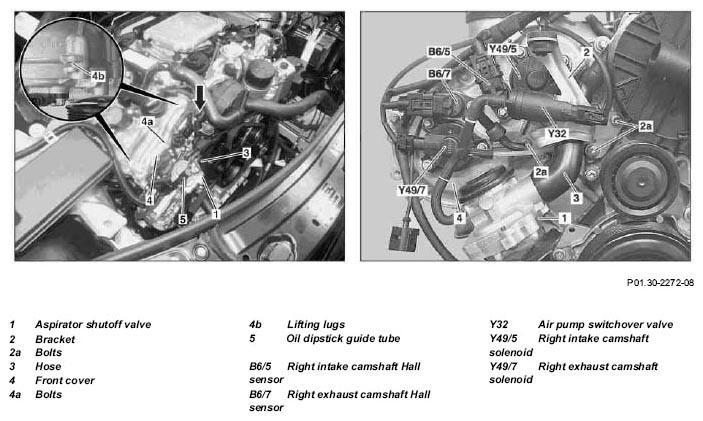

Fig 1: Identifying Front Cover On Cylinder Head Remove/Install Components (Shown Without Air Filter)
G05257239Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. Keep body parts and limbs well clear of moving parts. AS00.00-Z-0011-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
1 Turn key in ignition lock to position "0" IMPORTANT Vehicles with Keyless Go, code 889:
Press Keyless Go start/stop button repeatedly until ignition is switched off.

2 Remove front engine cover and right engine intake air duct
3 Remove aspirator shutoff valve (1) at right cylinder head   AR14.30-P-7200GZA
4 Remove bolts (2a) and lay bracket (2) for front engine cover with air pump switchover valve (Y32) aside IMPORTANT Do not detach the lines at the air pump switchover valve (Y32).
    TORQUE SPECIFICATION *BA01.30-P-1009-01O
5 Remove hose (3)
6 Disconnect electrical connectors at right camshaft intake solenoid (Y49/5) and at right camshaft exhaust solenoid (Y49/7)
7 Disconnect electrical connectors at right intake camshaft Hall sensor (B6/5) and at right exhaust camshaft Hall sensor (B6/7)
8 Unscrew oil dipstick guide pipe (5) on front cover (4) TORQUE SPECIFICATION *BA01.30-P-1006-01O
9 Undo bolts (4a) on front cover (4) IMPORTANT 6 screws.
    TORQUE SPECIFICATION *BA01.30-P-1006-01O
10 Carefully loosen front cover (4) on lifting lugs (4b) and detach to the front IMPORTANT Observe fitted sleeves in area of the outer threaded connections (arrow).
IMPORTANTInstallation:  Apply sealant to front cover (4).

IMPORTANT Notes on sealant path for front cover to cylinder head   AH01.30-P-1000-02V
    SPECIAL TOOL Fig 2
    Sealant *BR00.45-Z-1013-01A
CLEANING Clean
11 Clean sealing surfaces on front cover (4), on cylinder head cover and on cylinder head NOTES Remove sealant residues. Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.
    Loctite 7200 *BR00.45-Z-1038-04A
12 Remove right intake camshaft Hall sensor (B6/5) and right exhaust camshaft Hall sensor (B6/7) IMPORTANT When replacing front cover (4)
    TORQUE SPECIFICATION *BA15.10-P-1002-03E
13 Remove right camshaft intake solenoid (Y49/5) and right camshaft exhaust solenoid (Y49/7) IMPORTANT When replacing front cover (4)
    TORQUE SPECIFICATION *BA15.10-P-1003-03E
14 Install in the reverse order
INSPECT Checking
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
15 Conduct engine test run and check the engine for leaks
CYLINDER HEAD

Number Designation Engine 272 Engine 273
BA01.30-P-1006-01O Bolt, front cover to cylinder head M6 Nm 9 9
BA01.30-P-1009-01O Bolt, switchover valve bracket to cylinder head M6 Nm 9 9
POSITION SENSOR

Number Designation Engine 272 Engine 273
BA15.10-P-1002-03E Bolt, camshaft Hall sensor to front cover on cylinder head Nm 8 8
BA15.10-P-1003-03E Bolt, camshaft solenoid to front cover to cylinder head Nm 8 8
Fig 2: Identifying Squeeze Gun (112 589 00 25 00)
G05257240Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Sealant A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
Arabellastrasse 17
81925 Munchen
Germany
Tel. +49-899268-0
Fax +49-899101978
www.Loctite.de
