Pull out guide rail pins at cylinder head - AR01.30-P-5800-04V

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Impact Extractor (116 589 20 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Threaded Pin (116 589 01 34 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Left cylinder head

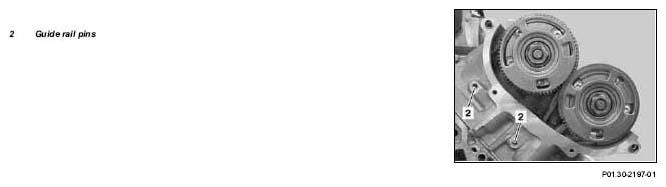

Fig 3: Identifying Guide Rail Pins - Left Cylinder Head

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Right cylinder head

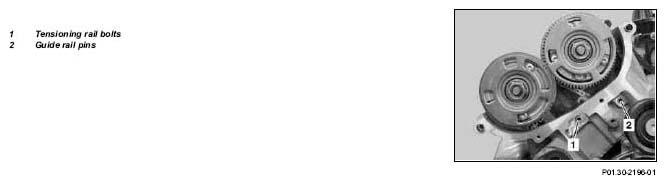

Fig 4: Identifying Tensioning Rail Bolts And Guide Rail Pins - Right Cylinder Head

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on tensioning rail bolts

Only extract the tensioning rail bolts (1) using the impact extractor (03) in order to avoid damaging the contact surface on the front cover.

Screw threaded insert (02) into the tensioning rail bolts (1) and extract the tensioning rail bolts (1) using an impact extractor (03).
The guide rail pins (2) are like tensioning rail bolts (1).

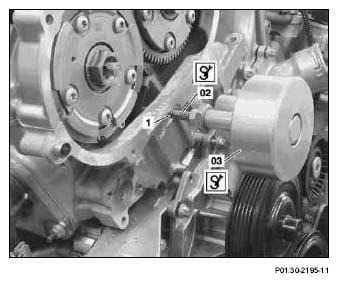

Fig 5: Identifying Tensioning Rail Bolts, Threaded Insert & Impact Extractor
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
