Lock the gear backlash compensation - AR05.20-P-7201-05VA
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
The tooth flanks (1, 2) are held against each other by spring pressure and should not be skewed, otherwise the camshaft adjuster will be irreparably damaged

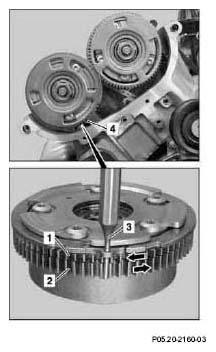

- Insert the drift (3, diameter 3mm) into the bore (4) of the cover plate and lock the tooth flanks (1, 2) with each other.
Push the drift (3) through to the end of tooth flank (2).
To allow the drift (3) to be inserted more easily, align the tooth flanks with each other (in the direction of the arrows).
