Remove/install centrifuge - AR01.20-P-2100GZA (ML350, ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

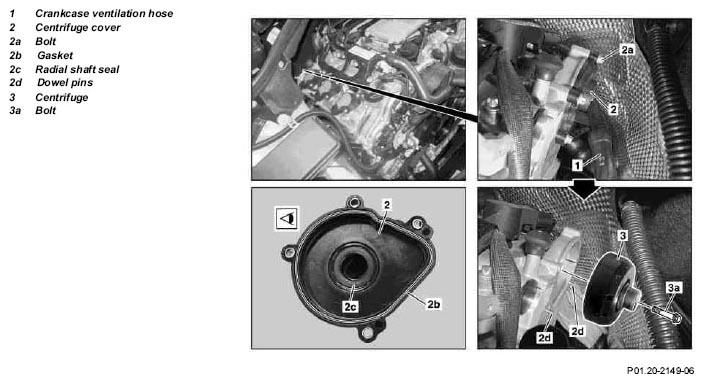

Fig 1: Identifying Centrifuge Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

18.10.05

Info. on left-hand thread - added

Step 7

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Switch off ignition and remove the transmitter key from the EIS [EZS] control unit	On vehicles with code (889) Keyless Go: Press keyless go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).
2.1	Remove air filter housing	Engine 272 (except 272.973), 273 in model 164 251	AR09.10-P-1150GZA
2.2	Remove air filter box (4)	Engine 272.973 in model 164.195
3	Remove right partition wall section (5)	Engine 272.973 in model 164.195
4	Remove air filter housing (6) and air duct (7)	Engine 272.973 in model 164.195 Treat air duct (7) carefully, danger of breaking hot film mass air flow sensor.
5	Detach hose for crankcase ventilation system (1) on centrifuge cover (2)
6	Unscrew bolt (2a)		*BA01.20-P-1001-01L
7	Remove the centrifuge cover (2)	Catch engine oil that flows out with an absorbent rag. Installation: Check seal (2b) and radial shaft sealing ring (2c) for wear and damage and replace centrifuge cover (2) if necessary. The fitted pins (2d) determine the installation position of the centrifuge cover (2).
8	Unscrew bolt (3a) and remove the centrifuge (3)	Observe loosening direction of bolt (3a) (left-hand thread).
			*BA01.20-P-1002-01L
9	Install in the reverse order
	Checking
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Conduct engine test run and check the engine for leaks
11	Check engine oil level and correct if required

CRANKCASE VENTILATION CYLINDER HEAD COVER

Number	Designation			Engine 272	Engine 273
BA01.20-P-1001-01L	Bolt, centrifuge cover to cylinder head cover	Stage 1	Nm	6	6
BA01.20-P-1001-01L	Bolt, centrifuge cover to cylinder head cover	Stage 2	∠°	90	90
BA01.20-P-1002-01L	Bolt, centrifuge to camshaft sprocket	Stage 1	Nm	6	6
BA01.20-P-1002-01L	Bolt, centrifuge to camshaft sprocket	Stage 2	∠°	90	90
