Remove/install right cylinder head cover - AR01.20-P-5012GZA (ML350, ML550, GL450, GL550): Notes

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 272, 273 in MODEL 164, 251

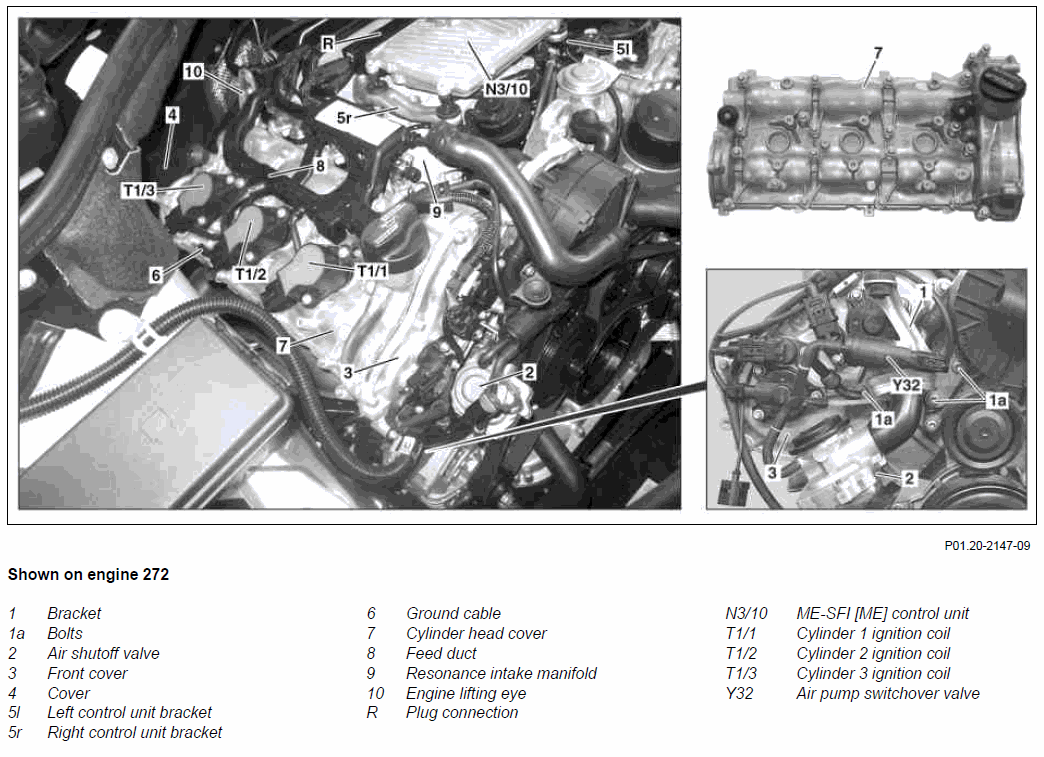

Fig 1: Removing/Installing Right Cylinder Head Cover
G00544355Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
NOTES Notes on avoiding damage to ignition system   AH15.10-P-0002-01V
1 Turn key in ignition lock to position "0" Vehicles with Keyless Go, code 889: Press Keyless Go start/stop button repeatedly until ignition is switched off.
2 Remove air filter housing   AR09.10-P-1150GZA
3 Remove bolts (1a) and remove bracket (1) for front engine cover with air pump switchover valve (Y32) TORQUE SPECIFICATION *BA01.30-P-1009-01O
4 Remove right air shutoff valve (2)   AR14.30-P-7200GZA
5 Remove front cover (3) on the right cylinder head   AR01.30-P-5700GZC
6 Remove ignition coils for right cylinder bank   AR15.12-P-2003GZA
7 Remove cover (4) on centrifuge   AR01.20-P-2100GZA
    TORQUE SPECIFICATION *BA01.30-P-1008-01O
8 Remove connector (R) on ME-SFI [ME] control unit (N3/10)
9 Disconnect ME-SFI [ME] control unit (N3/10) from left control unit bracket (5l) and right control unit bracket (5r) and place to one side Do (N3/10) not detach connector on ME-SFI [ME] control unit.
10 Remove right control unit bracket (5r) TORQUE SPECIFICATION *BA07.08-P-1002-01A
11 Detach ground line (6) from cylinder head cover (7) TORQUE SPECIFICATION *BA01.30-P-1010-01O
12 Detach feed line (8) from resonance intake manifold (9), cylinder head cover (7) and right rear motor suspension lug (10) Place feed channel (8) to one side.
    TORQUE SPECIFICATION *BA15.18-P-1001-01B
    TORQUE SPECIFICATION *BA15.18-P-1002-01B
    TORQUE SPECIFICATION *BA15.18-P-1003-01B
13 Loosen bolts for cylinder head cover (7) in reverse order of tightening procedure and remove them Engine 272 AR01.20-P-5014-03VA
    Engine 273 AR01.20-P-5014-03SX
    TORQUE SPECIFICATION *BA01.30-P-1004-01O
14 Pry off cylinder head cover (7) from cylinder head carefully To avoid damaging sealing surfaces, do not hit the tool for prying off between cylinder head cover (7) and cylinder head.
Installation:  Apply sealant to cylinder head cover (7).

IMPORTANT Notes on sealant path for cylinder head cover Engine 272 AH01.30-P-1000-08V
    Engine 273 AH01.30-P-1000-08SX
    SPECIAL TOOL Fig 2
    Loctite sealant 5970 *BR00.45-Z-1013-01A
15 Clean sealing surfaces at cylinder head and at cylinder head cover (7) Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces. AR01.00-P-0050-01A
    Loctite 7200 *BR00.45-Z-1038-04A
    Cleaning spray, Loctite 7063 (150ml) *BR00.45-Z-1046-04A
16 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
17 Conduct engine test run and check engine for leaks while it is running
CYLINDER HEAD

Number Designation Engine 272 Engine 273
BA01.30-P-1004-01O Bolt for cylinder head cover on cylinder head M7 Stage 1 Nm 12 12
Stage 2 ∠ ° 90 90
BA01.30-P-1008-01O Bolt of centrifuge cover to cylinder head M6 Nm 9 9
BA01.30-P-1009-01O Bolt, switchover valve bracket to cylinder head M6 Nm 9 9
BA01.30-P-1010-01O Bolt, ground line to cylinder head cover M6 Nm 9 9
CONTROL UNIT

Number Designation Engine 272 Engine 273
BA07.08-P-1002-01A Bolt, control unit bracket to resonance intake manifold Nm 8 8
ENGINE WIRING HARNESS

Number Designation Engine 272 Engine 273
BA15.18-P-1001-01B Bolt, feed duct to resonance intake manifold Nm 8 8
BA15.18-P-1002-01B Bolt, feed duct to cylinder head cover Nm 8 8
BA15.18-P-1003-01B Bolt, feed duct to engine lifting eye Nm 8 8
Fig 2: Identifying Squeeze Gun (112 589 00 25 00)
G07742708Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1013-01A Loctite sealant 5970 A 003 989 98 20
BR00.45-Z-1038-04A Loctite 7200 Henkel Loctite Deutschland GmbH
Arabellastrasse 17
81925 Munchen
Germany
Tel. +49 899268-0
Fax + 49 899101978
www.Loctite.de
BR00.45-Z-1046-04A Cleaning spray, Loctite 7063 (150ml) A 001 986 71 71 10
