Retrofit Audio 50 APS navigation system - AN82.61-P-0004TB

MODEL 211.0## (except 211.076 /077) 1# up to 1.6.08 with CODE (523) MB Audio 20 radio with CODE (803) Model year 2003 with CODE (804) Model year 2004 with CODE (805) Model year 2005 with CODE (806) Model year 2006 with CODE (807) Model year 2007 with CODE (808) Model year 2008 except CODE (596) Heat-insulating glass except CODE (924) Bivalent natural gas drive

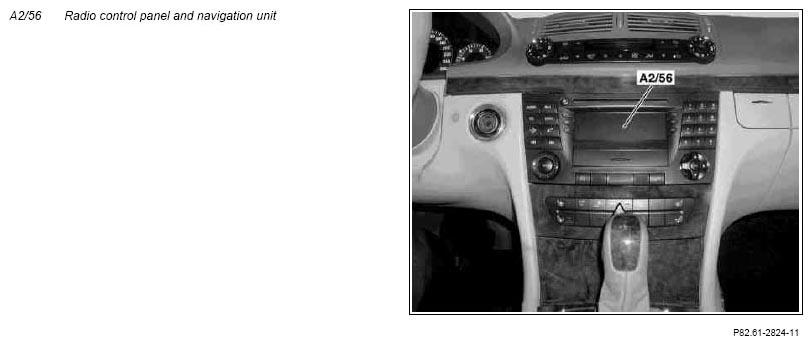

Fig 1: Identifying Radio Control Panel And Navigation Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

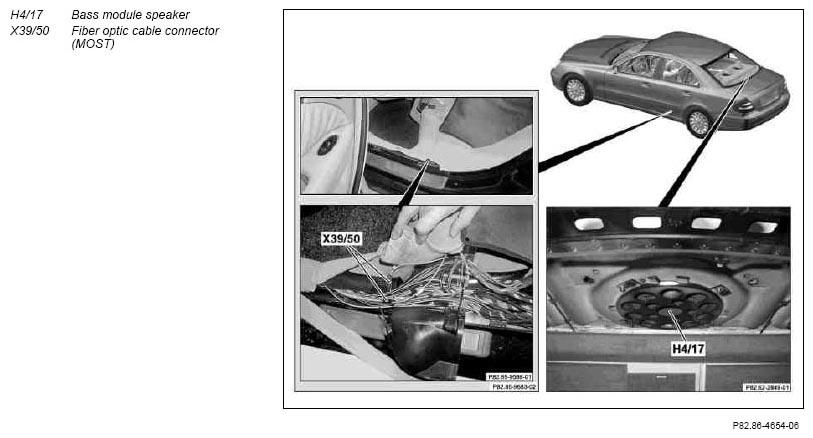

Fig 2: Identifying Bass Module Speaker And Fiber Optic Cable Connector (MOST)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Check whether a CD has been inserted into the Audio 20 CD radio, if necessary remove CD
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect battery ground line		AR54.10-P-0003T
3	Remove left side paneling in trunk	For vehicles without code (287) Through-loading feature	AR68.30-P-4800T
		On vehicles with code (287) Through-loading feature.	AR68.30-P-4800TA
4	Remove SAM control unit with fuse and relay box in luggage compartment	Do not disconnect electrical connectors.	AR54.21-P-1258T
5	Remove Audio 20 CD radio	Audio 20 CD radio is no longer required.	AR82.60-P-7502T
6	Remove instrument cluster		AR54.30-P-6015T
7	Remove left front floor covering		AR68.20-P-2050T
8	Release trim at left B-pillar in lower area until the cable duct is accessible		AR68.30-P-4700T
9.1	Remove rear seat cushion	For vehicles without code (287) Through-loading feature	AR91.12-P-1020T
9.2	Unlock rear seat cushions and set upright	For vehicles with code (287) Through-loading feature
10	Remove side upholstery of left rear seat backrest
11	Release rubber door seal in lower area of left rear door
12	Remove door sill of left rear door sill
13	Remove cable duct cover on left side of rear seat backrest
14	Open left cable duct at rear seat
15	Check whether the bass box speaker (H4/17) is installed	The bass box speaker (H4/17) can be identified from the trunk below the rear shelf (refer to picture).
16	Remove rear shelf	For vehicles with bass box speaker (H4/17). On vehicles without code (287) Through-loading feature and without code (540) Electric rear window roller blind	AR68.30-P-4580T
		On vehicles with code (287) Through-loading feature and without code (540) Electric rear window roller blind	AR68.30-P-4580TA
		On vehicles with code (540) Electric rear window roller blind and without code (287) Through-loading feature	AR68.30-P-4580TB
		On vehicles with code (287) Through-loading feature and with code (540) Electric rear window roller blind	AR68.30-P-4580TC
	Install
17	Retrofit antenna for global positioning system (GPS)		AN82.61-P-7474-04TTT
18	Retrofit audio gateway control unit		AN82.61-P-0001-07TB
19	Retrofit wiring harness of radio control panel and navigation unit (A2/56)	For vehicles with bass box speaker (H4/17).	AN82.61-P-0001-01TB
		For vehicles without bass box speaker (H4/17).	AN82.61-P-0001-01TBA
			Figure
20	Check whether the fiber optic cable connector (MOST) (X39/50) is installed in the rear cable duct, at the left next to the rear bench seat
21	Retrofit Media Oriented System Transport fiber optic cable (MOST) for radio control panel and navigation unit (A2/56)	For vehicles without fiber optic cable connector (MOST) (X39/50).	AN82.61-P-0001-06TAB
		For vehicles with fiber optic cable connector (MOST) (X39/50).	AN82.61-P-0001-06TAC
	Notes on fiber optic cable		AH82.70-P-0001-02T
	Notes on avoiding damage to fiber optic cables during repair work		AH82.60-P-0001-05AK
22	Retrofit MOST fiber optic cable wiring harness for CD changer	On vehicles with code (819) CD-changer	AN82.61-P-0001-06TAF
	Notes on avoiding damage to fiber optic cables during repair work		AH82.60-P-0001-05AK
23	Retrofitting AM/FM antenna line		AN82.62-P-0001-04TX
24	Assemble vehicle	Operation steps 16 to 6, 4 and 3.
25	Install radio control panel and navigation unit (A2/56)	Wrap felt tape around on-board AM/FM antenna line and on-board fiber optic cable for Audio 20 CD radio (no longer required) and strap down in center console.	AR82.60-P-7502T
26	Connect ground cable to battery		AR54.10-P-0003T
27	Connect up STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
28	Perform basic programming		AR00.19-P-0200T
29	Flash those MOST components that do not have the latest software release.		AR54.21-P-0014Y
30	Carry out variant coding with STAR DIAGNOSIS to activate the functions of the MB Audio 50 APS radio.	Follow the instructions in the Diagnosis Assistance System. After completing the variant coding, perform a quick test and delete the fault memory.
31	Add special equipment to the vehicle data card and to the online vehicle data card	Delete code (523) MB Audio 20 CD radio and enter code (525) MB Audio 50 APS radio. Delete old radio identification number and enter new one.
32	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
33	Perform function check of radio control panel and navigation unit (A2/56)	Refer to operating instructions of radio control panel and navigation unit (A2/56).

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
