Remove/install and disassemble rear shelf - AR68.30-P-4580TA

MODEL 211.0

with CODE (287a) Through-loading feature

except CODE (540a) Electric roller blind for rear window

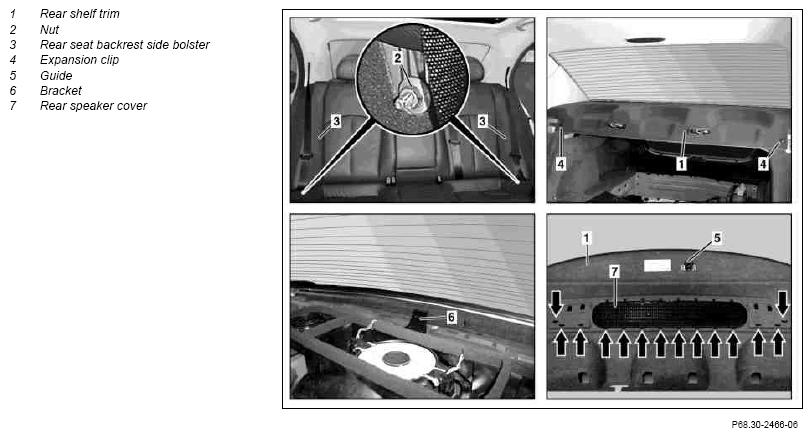

Fig 1: Identifying Rear Shelf Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Pull up both rear seat cushions and fold down both rear seat backrests	See operator's manual.
2	Unscrew nut (2) on both sides
3	Slide both rear seat backrest side bolsters (3) upwards and remove
4	Remove expansion clips (4)
5	Remove left and right trim from C-pillar	Do not detach belt end fitting.	AR68.30-P-4490T
6	Remove rear shelf trim (1) toward front	Installation:  Ensure that guide (5) is seated correctly in bracket (6).
7.1	Unclip rear speaker cover (7) using a mounting wedge to push back clips (arrows) and remove	Only when replacing rear shelf trim (1). Lay rear shelf trim (1) down on suitable surface.
			Figure
8	Install in the reverse order
