Remove/install side paneling in trunk - AR68.30-P-4800TA

MODEL 211.0 with CODE (287) Through-loading feature

Shown on paneling on left

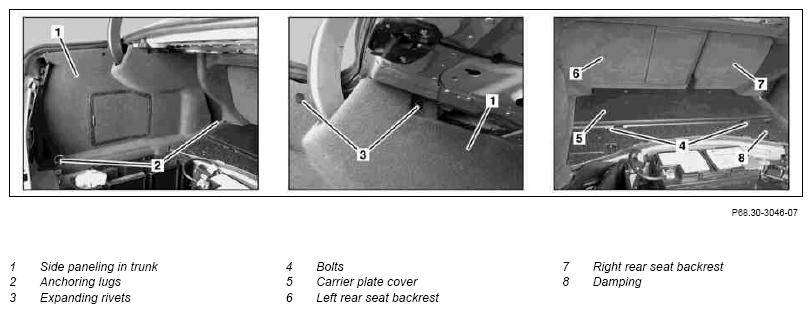

Fig 1: Identifying Trunk Side Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Fold over left rear seat backrest (6) and right rear seat backrest (7)	See Operating Instructions
2	Remove anchoring lugs (2)	Note correct installation positions.
			*BA68.50-P-1003-03B
3	Remove expansion rivets (3)
4	Remove damping (8)
5	Unscrew bolts (4) and remove carrier plate cover (5) from trunk.
6	Remove side paneling in trunk (1)	Installation:  Ensure that side paneling is seated correctly in trunk (1) in relation to rear center section paneling.
7	Install in the reverse order
