Remove/install side paneling in trunk - AR68.30-P-4800T

MODEL 211.0

except CODE (287) Through-loading feature

except CODE (924) Bivalent natural gas drive

Shown on paneling on left

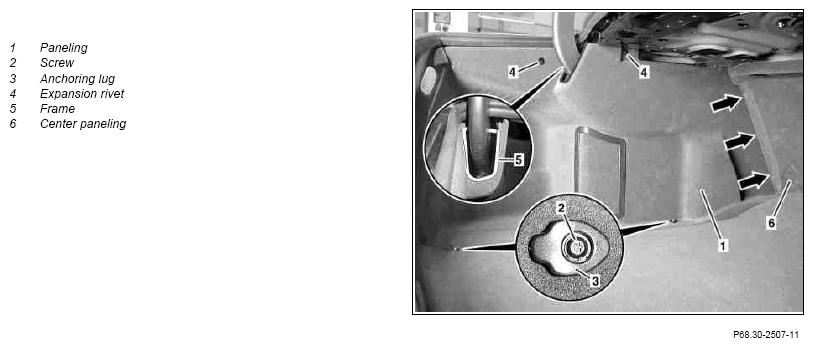

Fig 1: Identifying Trunk Side Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Unscrew bolts (2) and remove anchoring lugs (3)	Note correct installation positions.
2	Remove expanding rivets (4)
3	Remove frame (5)
4	Fold paneling (1) out of center paneling (6) (arrows) and remove from trunk.	Installation:  Ensure that paneling (1) is seated correctly in relation to rear center section paneling.
5	Install in the reverse order
