Remove/install compressor - AR09.50-P-4705TZ

ENGINES 113.990 in MODEL 219.376

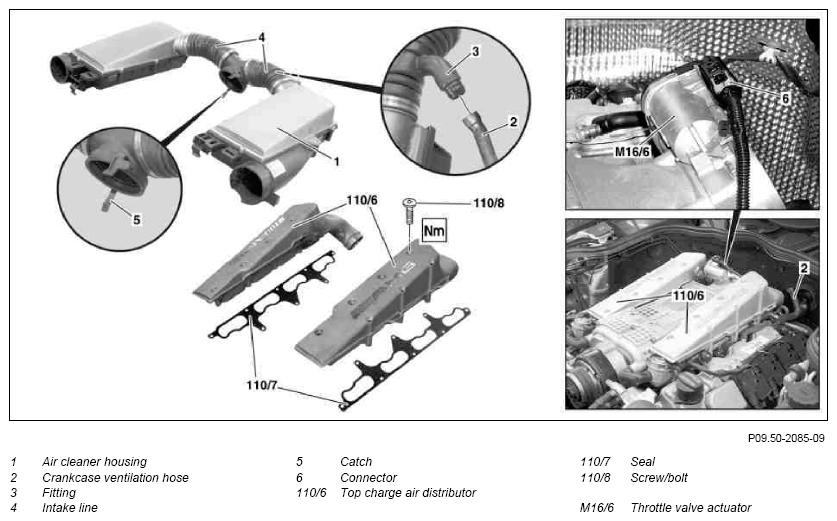

Fig 1: Identifying Compressor Remove/Install Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

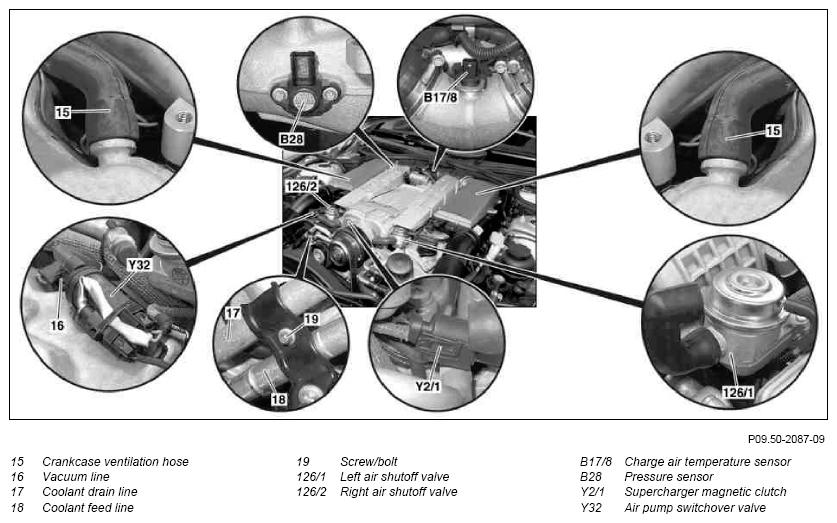

Fig 2: Identifying Compressor Remove/Install Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

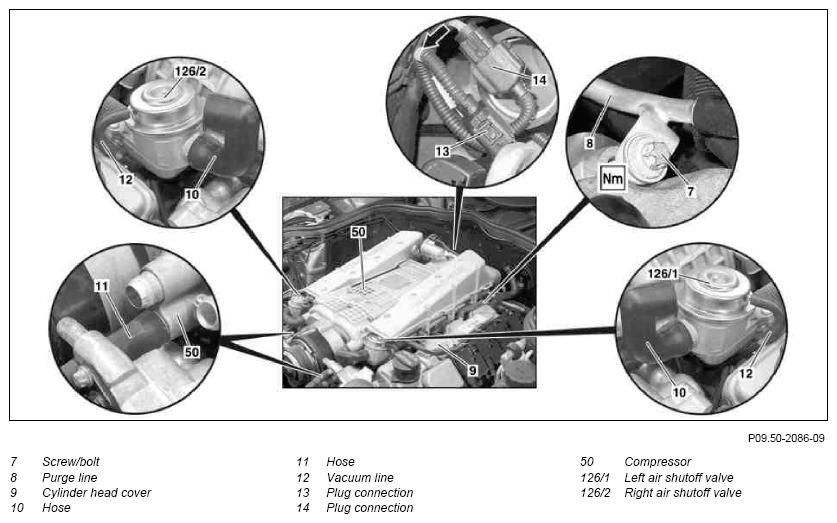

Fig 3: Identifying Compressor Remove/Install Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

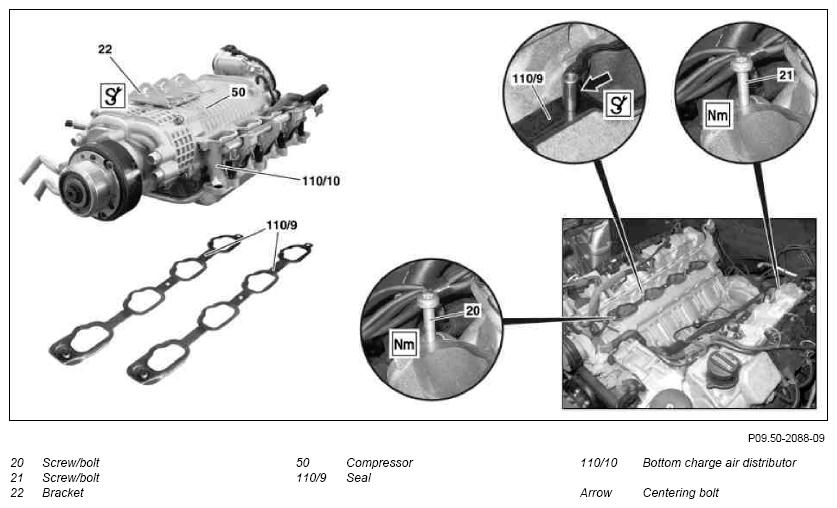

Fig 4: Identifying Compressor Remove/Install Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch ignition off, remove ignition key (transmitter key)	On vehicles with code 889 Keyless-Go: Press Keyless-Go start/stop button repeatedly until the ignition is switched off. Remove Keyless Go transmitter card or transmitter key from the vehicle and store beyond transmitter range (min. 2 m).
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
2	Open engine hood		AR88.40-P-1000TX
3	Remove right and left engine intake air duct
4	Remove top engine cover
5	Remove air filter housing (1).	Removal: When removing air filter housing (1) ensure that intake hose is not twisted since improper removal of air filter housing (1) can deform the steel ring in intake hose and this can loosen while engine is running. Removal: Carefully raise air filter housing (1) and detach crankcase ventilation hose (2) at fitting (3) of intake line (4). Ensure that catch (5) on intake line (4) does not break off when bottoming on throttle valve actuator (M16/6) since the broken off catch (5) can be sucked in by engine and cause engine damage. Moisten sealing ring, throttle valve actuator (M16/6) with antifriction agent.	AR09.10-P-1150TZ
5	Remove air filter housing (1).	Lubricant paste	*BR00.45-Z-1002-06A
6	Remove top charge air distributor (110/6)	Pay attention to different lengths of screw/bolt. Cover over openings with a fluffy rag.	AR09.41-P-1320TZ
6	Remove top charge air distributor (110/6)		*BA09.41-P-1001-01C
7	Remove the throttle valve actuator (M16/6)	Removal: The throttle valve actuator (M16/6) plug (6) of must not be removed, because it is bonded. For removal, disconnect electrical connector (13) at throttle valve actuator (M16/6) Removal: The connector (13) of throttle valve actuator (M16/6) and connector (14) of recirculated air flap actuator are identical and therefore can be mixed up. The wiring harness of the throttle valve actuator (M16/6) is marked with blue insulation tape (arrow). If this is not the case, mark the wiring harness before disconnecting the connector.	AR07.51-P-1401TY
7	Remove the throttle valve actuator (M16/6)	Screw on throttle valve actuator	*BA07.61-P-1001-01A
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel	No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
8	Remove fuel distributor	Replace O-rings of injection valves.	AR07.03-P-1451TY
		Fuel feed line on fuel rail	*BA07.52-P-1001-01A
		Bolt, fuel distributor to bottom part of charge air distributor	*BA07.52-P-1003-01A
		Pressure hose	Figure
		Set of stop plugs	Figure
9	Remove bolt (7) of purge line (8) to cylinder head cover (9)	Detach hose on engine side and place purge line (8) to the side.
9		Cylinder head cover bolt	*BA01.20-P-1001-01E
10	Detach hose (10) for air injection at supercharger (50)	Hose (10) remains at left aspirator shutoff valve (126/1) and at right aspirator shutoff valve (126/2).
11	Detach hose (11) for air injection at supercharger (50)
12	Detach vacuum line (12) at left aspirator shutoff valve (126/1) and at right aspirator shutoff valve (126/2).
13	Detach crankcase venting hose (15) on right and left on cylinder head cover (9)
14	Detach vacuum line (16) at air pump switchover valve (Y32)
15	Unplug plug of charge air temperature sensor (B17/8)
16	Unplug plug of pressure sensor (B28)
17	Disconnect connector (14) from recirculated air flap actuator	Removal: The connector (13) of recirculated air flap actuator (M16/6) and connector (14) of throttle valve actuator are identical and therefore can be mixed up. The wiring harness of the throttle valve actuator (M16/6) is marked with blue insulation tape (arrow). If this is not the case, mark the wiring harness before disconnecting the connector. Absolutely coat pins of connector with contact fluid.
17		Contact fluid	*BR00.45-Z-1001-14A
18	Unplug plug of supercharger magnetic clutch (Y2/1)	Disconnect plug carefully because plug housing on supercharger magnetic clutch (Y2/1) is not damaged.
19	Remove poly-V belt for compressor (50)	Mark running direction of poly-V belt.	AR13.21-P-1202TZ
		Running diagram of compressor poly-V belt	AR13.21-P-1202-01TZ
	Check visible area of poly-V belt for wear		AP13.22-P-1352TZ
20	Remove poly-V belt	Mark running direction of poly-V belt.	AR13.22-P-1202TZ
		Routing diagram of poly V-belt	AR13.22-P-3902-02TZ
	Check visible area of poly-V belt for wear		AP13.22-P-1352TZ
	Risk of death caused by vehicle slipping or tilting off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
21	Remove lower engine compartment paneling		AR61.20-P-1105TX
	Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant	All engines	AH20.00-N-2080-01A
22	Drain coolant at radiator		AR20.00-P-1142TY
			*BF20.00-P-1001-02K
23	Disconnect coolant hoses at coolant drain line (17) and coolant feed line (18)	Close coolant hoses.
24	Remove bolt (19) of coolant drain line bracket (17) and coolant feed line (18)
25	Remove left aspirator shutoff valve (126/1) and right aspirator shutoff valve (126/2)	Bolt, bottom part of charge air distributor to cylinder head	*BA09.41-P-1002-01C
26	Remove screw/bolt (20) of charge air distributor bottom section to cylinder head	Pay attention to different lengths of screw/bolt. The bolt (21) has a length of 35 mm. The screw/bolt (20) have a length of 30 mm.
26		Bolt, bottom part of charge air distributor to cylinder head	*BA09.41-P-1002-01C
27	Screw bracket (22) onto compressor (50)	Bracket	Fig 5
28	Attach engine hoist in the lifting eye of the bracket (22)	Load regulator
29	Lift out supercharger (50) together with charge air cooler and bottom charge air distributor (110/10)	Use dowel bolt (arrow) for exact positioning of supercharger (50) with charge air cooler and bottom charge air distributor (S110/10) as well as for centering the gasket (110/9).
29		Set of dowel bolts	Figure
30	Remove charge air cooler	No dirt particles should be able to find their way into the charge air cooler while cleaning the sealing surfaces since these could destroy the compressor (50). No excess sealant should be allowed to find its way into the compressor (50) since this could destroy the compressor (50). Moisten sealing ring on air recirculation flap actuator with liquid lubricant.	AR09.41-P-6817TZ
		Bolt, compressor to charge air cooler	*BA09.50-P-1001-01B
		Lubricant paste	*BR00.45-Z-1002-06A
31	Install in the reverse order
32	Inspect cooling system for leaks		AR20.00-P-1010TX
33	Read out fault memory and erase if necessary
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS, diagnosis system

CRANKCASE VENTILATION, CYLINDER HEAD COVER

Number	Designation			Engine 113
BA01.20-P-1001-01E	Cylinder head cover bolt	Stage 1	Nm	9
BA01.20-P-1001-01E	Cylinder head cover bolt	Stage 2	∠°	-

FUEL DISTRIBUTOR

Number	Designation		Engine 113.990/991
BA07.52-P-1001-01A	Fuel feed line to fuel distributor	Nm	38
BA07.52-P-1003-01A	Bolt, fuel distributor to bottom part of charge air distributor	Nm	9

ME-SFI [ME] GASOLINE INJECTION AND IGNITION SYSTEM

Number	Designation		Engine 112, 113
BA07.61-P-1001-01A	Bolt at throttle valve actuator	Nm	10

CHARGE AIR PIPE/CHARGE AIR COOLING

Number	Designation		Engine 113.990/991
BA09.41-P-1001-01C	Bolt, upper part of charge air distributor to bottom part of charge air distributor	Nm	9
BA09.41-P-1002-01C	Bolt, bottom part of charge air distributor to cylinder head	Nm	20

SUPERCHARGER

Number	Designation		Engine 113.990
BA09.50-P-1001-01B	Bolt, supercharger to charge air cooler	Nm	20

COOLING SYSTEM

Number	Designation			Engine 113.990
BF20.00-P-1001-02K	Cooling system	Total filling capacity	Liters	13.2
		Capacity of anticorrosion/antifreeze agent down to -37°C	Liters	≈6.6
		Filling capacity of anticorrosion/antifreeze down to -45°C	Liters	≈7.3
		Specifications for Operating Fluids	-	Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
		Specifications for Operating Fluids	-	Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1

Fig 5: Identifying Bracket (112 589 00 62 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Set Of Dowel Bolts (112 589 02 62 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Antifriction paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
BR00.45-Z-1001-14A	Contact fluid	A 008 989 55 71
