Remove/install fuel rail with injectors (ME-SFI) - AR07.03-P-1451TY

ENGINE 113.967 in MODEL 219.375

ENGINE 113.990 in MODEL 219.376

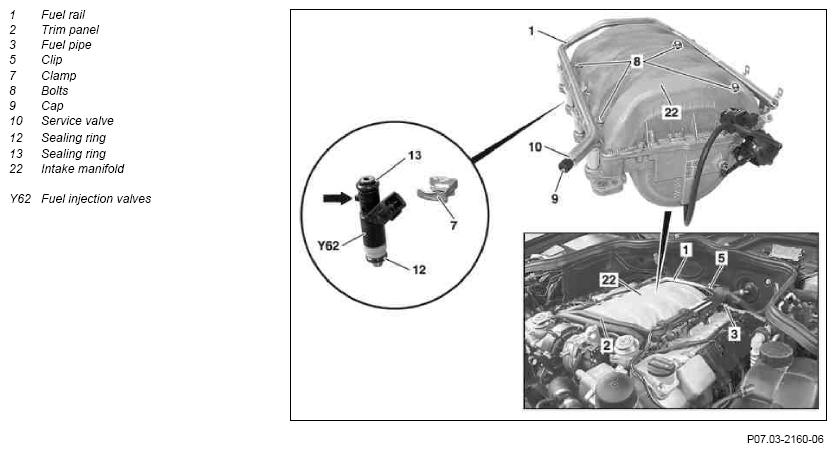

Fig 1: Identifying Fuel Rail With Injectors (ME-SFI) Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood		AR88.40-P-1000TX
2	Remove air filter housing	Model 219.375	AR09.10-P-1150TY
2	Remove air filter housing	Model 219.376	AR09.10-P-1150TZ
3	Remove paneling (2)	Dismount clamp (5) and tie straps (6 X).
4	Loosen the engine wiring harness from the fuel distributor rail (1)
5	Unscrew plug from (9) service valve (10)
6	Reduce fuel pressure with the pressure hose via the service valve (10)	Collect fuel in a suitable container.	AR07.03-P-1460-01VA
6		Pressure hose	Figure
7	Disconnect the fuel line (3) from the fuel distributor rail (1)	Allow escaping fuel to drain into a suitable container.
7			*BA07.52-P-1001-01A
8	Remove the electrical connectors at the fuel injection valves (Y62)
9	Remove screws (8) from intake manifold (22)		*BA07.52-P-1002-01A
10	Lift fuel distributor rail (1) and fuel injection valves (Y62) from intake manifold (22)	Check sealing ring (12, 13) for damage and replace if required. Before inserting the fuel injection valves (Y62), coat the sealing ring (12, 13) with lubricant.
10		Lubricant	*BR00.45-Z-1002-06A
	Check
11	Check fuel injection valves (Y62) with STAR DIAGNOSIS	If necessary: ↓
		Replace fuel injection valves (Y62)	AR07.03-P-6520TY
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS, diagnosis system
12	Install in the reverse order
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near engine	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
13	Carry out engine test run and check fuel system for leaks	In the event of oil loss determine and eliminate cause, otherwise malfunctions, transmission damage, and serious environmental pollution may occur.

FUEL RAIL

Number	Designation		Engine 113.940/941/942/943/944/945/946/948/960/961/962/963/964/965/966/967/968/969/971/980/981/982/984/986/988	Engine 113.990/991
BA07.52-P-1001-01A	Fuel feed line to fuel distributor	Nm	38	38
BA07.52-P-1002-01A	Bolt of fuel rail to intake manifold	Nm	10	10

Fig 2: Identifying Pressure Hose (119 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-06A	Lubricating paste, rubber parts 2.5 kg, DB supply specification 6867.00	A 000 989 01 60
