Remove/install throttle valve actuator - AR07.51-P-1401TY

ENGINES 113.967 in MODEL 219.375

ENGINES 113.990 in MODEL 219.376

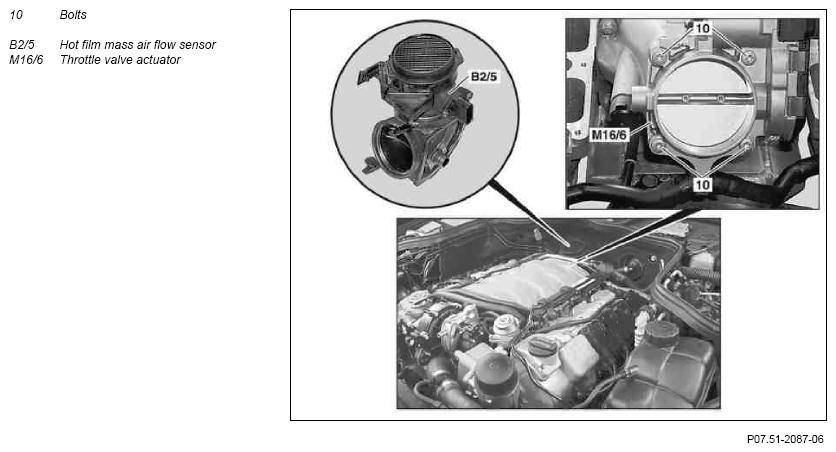

Fig 1: Identifying Throttle Valve Actuator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

11.8.08

Perform default initialization - added

Step 8

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood		AR88.40-P-1000TX
2	Remove air filter housing	Model 219.376	AR09.10-P-1150TZ
2	Remove air filter housing	Model 219.375	AR09.10-P-1150TY
3	Remove hot film mass air flow sensor (B2/5)		AR07.07-P-1454TY
4	Disconnect electrical connector in feed line throttle valve actuator (M16/6)	Do not disconnect plug on throttle valve actuator (M16/6) since it is bonded. The electrical connections on throttle valve actuator (M16/6) and on air recirculation flap actuator are identical and can be interchanged. The wiring harness on throttle valve actuator (M16/6) is marked with a blue insulation tape. If this is not the case, mark wiring harness before disconnecting electrical connector. Coat electrical connector with contact fluid.
4		Contact fluid	*BR00.45-Z-1001-14A
5	Remove bolts (10) for throttle valve actuator (M16/6)		*BA07.61-P-1001-01A
6	Remove throttle valve actuator (M16/6)	Install new gasket
7	Install in the reverse order
8	Perform default initialization	After throttle valve actuator valve is replaced (M16/6). Connect STAR DIAGNOSIS and select menu item for control unit adaptations in ME control unit.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

ME-SFI [ME] GASOLINE INJECTION AND IGNITION SYSTEM

Number	Designation		Engines 112, 113
BA07.61-P-1001-01A	Bolt on throttle valve actuator	Nm	10

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-14A	Contact fluid	A 008 989 55 71
