Retrofit Parktronic system (PTS) - AN54.65-P-0001A
MODEL 210.0
| Removal | |||
| 1 | Disconnect battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove front bumper | ||
| Model 210 up to 31.5.99 | AR88.20-P-2000F | ||
| 3 | Remove rear bumper | ||
| Model 210 up to 31.5.99 | AR88.20-P-2200F | ||
| 4 | Open F1 fuse and relay box | ||
| 5 | Remove instrument cluster | ||
| AR54.30-P-6015EA | |||
| 6 | Remove rear seat cushions | ||
| AR91.12-P-1700F | |||
| 7 | Remove rear backrest | ||
| 8 | Remove left front and rear right and left door sill moldings | ||
| 9 | Open left front and right and left rear wiring ducts | ||
| 10 | Remove left A-pillar paneling | ||
| 11 | Remove left B-pillar paneling | ||
| 12 | Remove right C-pillar paneling | ||
| 13 | Remove cover from center console | ||
| AR68.20-P-2350F | |||
| 14 | Remove cover on left and right side of instrument panel | ||
| 15 | Remove loudspeaker cover on left and right side of instrument panel | ||
| 16 | Remove trim strips on left and right side of instrument panel | ||
| AR68.10-P-1180F | |||
| 17 | Remove knee protection below instrument panel on left | ||
| 18 | Remove floor covering in driver's footwell on left | ||
| Install | |||

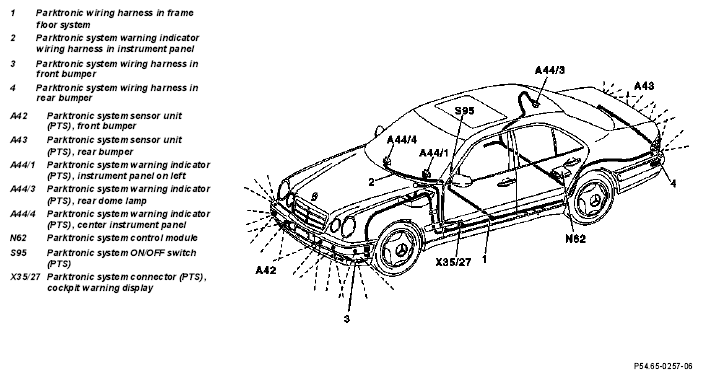

| 19 | Retrofit Parktronic system wiring harnesses (PTS) | AN54.65-P-0001-02A | |
| 20 | Retrofit warning display in Parktronic system instrument panel (PTS) | AN54.65-P-0003-01A | |
| 21 | Install warning display in rear dome lamp for Parktronic system (PTS) | ||
| AR54.65-P-0004A | |||
| 22 | Retrofit Parktronic system switch (PTS) | AN54.65-P-0005-01A | |
| 23 | Retrofit Parktronic system control module (PTS) | AN54.65-P-0006-01A | |
| 24 | Retrofit Parktronic system sensors (PTS) in front bumper | AN54.65-P-0001-01A | |
| 25 | Retrofit Parktronic system sensors (PTS) in rear bumper | AN54.65-P-0002-01A | |
| 26 | Partially reassemble vehicle from 5 to 1 | ||
| 27 | Carry out function check | ||
| 28 | Reassemble vehicle 18 to 6 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| KG 99 (see EPC) | Parts kit | 1 |
| commercially available | green 0.5 mm lead2 | 3M |
| commercially available | gray/blue 0.5 mm lead2 | 2M |
| commercially available | brown 1.5 mm lead2 | 2M |
