Retrofitting parktronic system (PTS) control module - AN54.65-P-0006-01A

Do not damage brake pipes below vehicle floor when drilling.

1. Mark inner attachment hole (A) according to specifications and strike into panel with a drift (ø 3.5 mm).
2. Align parktronic system control module (N62) to hole (A) and parallel to frame crossmember (50). Make outer attachment hole (B) by striking into panel with a drift (ø 3.5 mm).

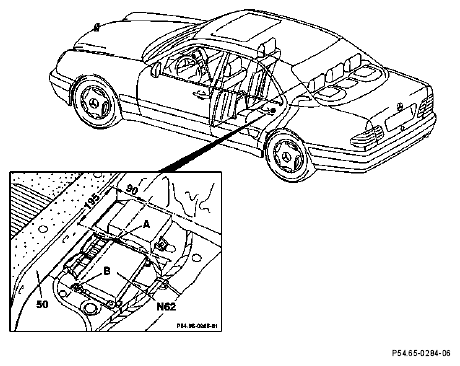

   Fig 1: Identifying Retrofitting Parktronic System (PTS) Control Module

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Attach parktronic system (PTS) control module (N62) with self-tapping screw (51) and shims (52).
4. Plug in control module.
   Fig 2: Identifying Parktronic System (PTS) Control Module

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
