Retrofitting parktronic system (PTS) switch - AN54.65-P-0005-01A

  1. Work out hole for parktronic system (PTS) switch in cover (41).
  2. Clip parktronic system (PTS) on/off switch (S95) into cover (41) from below.
  3. Connect parktronic system (PTS) on/off switch (S95).

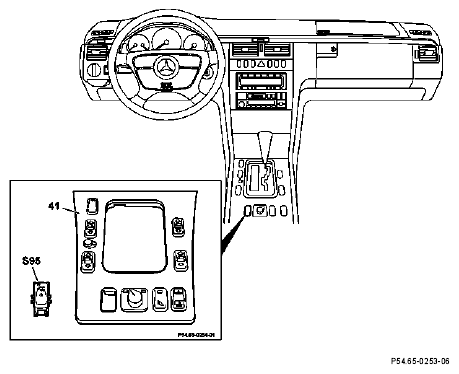

    Fig 1: Identifying Retrofitting Parktronic System (PTS) Switch
    G04633492Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
