Retrofitting Linguatronic voice control system - AN82.70-P-0004PB

MODEL 203.7## 1# with CODE (852) CTEL preinstallation assembly at dome with retrofitted telephone fixed installation or retrofitted portable CTEL

MODEL 203.7## 1# with CODE (853) MB standard cellular telephone with retrofitted telephone fixed installation or retrofitted portable CTEL

MODEL 203.7## 1# with CODE (854) MB portable CTEL with retrofitted telephone fixed installation or retrofitted portable CTEL

MODEL 203.7## 1# with CODE (855) TELE AID with retrofitted telephone fixed installation or retrofitted portable CTEL

MODEL 203.7## 1# with CODE (359) TELE AID emergency call system with retrofitted telephone fixed installation or retrofitted portable CTEL

MODEL 203.7## 1# with CODE (386) Preinstallation for "portable CTEL" UPCI telephone system with retrofitted telephone fixed installation or retrofitted portable CTEL

MODEL 203.7## 1# with CODE (387) Preinstallation for "portable CTEL" UPCI telephone system USA/Canada with retrofitted telephone fixed installation or retrofitted portable CTEL

MODEL 203.7## 1# with CODE (388) "Portable CTEL" UPCI telephone system with retrofitted telephone fixed installation or retrofitted portable CTEL

Shown on model 203.2 up to 23.4.04

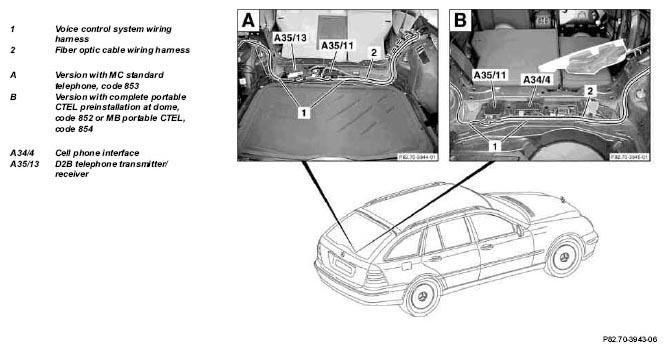

Fig 1: Identifying Linguatronic Voice Control System Components - Shown On Model 203.2 Up To 23.4.04
G04736230
REMOVING Remove
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged leadacid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
NOTES Notes on battery All models AH54.10-P-0001-01A
NOTES Notes on fiber optic cable Models 129, 163, 168, 170, 202, 203, 208, 209, 210, 215, 220, 230, 414, 463.243/244/245/246/247/248/249/250/ 254/270/271/309/322/323/332/333 AH82.70-P-0001-02A
1 Disconnect battery ground line
REFER TO TESTING & REPAIR Disconnect/connect battery's ground cable   AR54.10-P-0003P
2 Remove front right and rear right door sill moldings.
3 Remove paneling from A-pillar in right passenger footwell
4 Remove side upholstery from right rear seat backrest
REFER TO TESTING & REPAIR Remove/install rear seat backrest side padding   AR91.12-P-1710P
5 Open right wiring duct
6 Remove coverings in trunk
REFER TO TESTING & REPAIR Remove/install paneling in trunk   AR68.30-P-4600PB
7 Remove rear SAM control unit with fuse and relay module (N10/2) IMPORTANT Do not disconnect electrical connectors.
REFER TO TESTING & REPAIR Removing and installing rear SAM control unit with fuse and relay box   AR54.21-P-1259PC
8 Remove paneling from right C-pillar
REFER TO TESTING & REPAIR Remove/install paneling on C-pillar   AR68.30-P-4490PB
9 Remove side paneling in rear on right
REFER TO TESTING & REPAIR Remove/install side paneling in rear   AR68.30-P-4780PB
10 Remove EIS control unit (N73) IMPORTANT Do not disconnect electrical connectors.
REFER TO TESTING & REPAIR Remove/install electronic ignition switch (EIS)   AR46.10-P-0810P
11.1 Remove CC with variable speed limiter switch (S40/4) Models fitted with cruise control code 440
IMPORTANT Part no longer required.
REFER TO TESTING & REPAIR Remove/install cruise control switch Up to 23.4.04 with cruise control, code 440 AR54.25-P-2803P
REFER TO TESTING & REPAIR Remove/install cruise control switch As of 24.4.04 with cruise control, code 440 AR54.25-P-2803PQ
12 Remove combination switch (S4)
REFER TO TESTING & REPAIR Removing and installing combination switch up to 23.04.04 AR54.25-P-2800P
REFER TO TESTING & REPAIR Removing and installing combination switch as of 24.4.04 AR54.25-P-2800PQ
13 Remove jacket tube switch module from jacket tube IMPORTANT Part no longer required.
INSTALLING Install
14 Retrofit control unit for Linguatronic voice control system With MB standard telephone, code 853
With TELE AID, code 855		 AN82.70-P-0004-04P
    With complete portable CTEL preinstallation on dome, code 852
With MB portable CTEL telephone, code 854		 AN82.70-P-0004-04PP
    With TELE AID emergency call system, code 359
With preinstallation for "portable CTEL" telephone UPCI system, code 386
With preinstallation for "portable CTEL" telephone UPCI system USA/Canada, code 387
With "portable CTEL" telephone UPCI system, code 388		 AN82.70-P-0004-04PPA
15 Retrofit Linguatronic fiber optic cable wiring harness (2) With complete portable CTEL preinstallation on dome, code 852
With MB portable CTEL telephone, code 854		 AN82.70-P-0002-01PPA
    With MB standard telephone, code 853
With TELE AID, code 855		 AN82.70-P-0002-01PPB
    With sound system, code 810
With CD changer, code 819
With MB standard telephone, code 853
With TELE AID, code 855		 AN82.70-P-0002-01PPC
    With sound system, code 810
With CD changer, code 819
With complete portable CTEL preinstallation on dome, code 852
With MB portable CTEL telephone, code 854		 AN82.70-P-0002-01PPD
    With TELE AID emergency call system, code 359
With preinstallation for "portable CTEL" telephone UPCI system, code 386
With preinstallation for "portable CTEL" telephone UPCI system USA/Canada, code 387
With "portable CTEL" telephone UPCI system, code 388		 AN82.70-P-0002-01PPF
16 Cover fiber optic cable
REFER TO TESTING & REPAIR Cover fiber optic cable   AR82.95-P-0005-01A
17 Retrofit voice control system wiring harness (1)   AN82.70-P-0004-01PB
18 Retrofit Linguatronic voice control system activation switch   AN82.70-P-0004-02P
19 Install combination switch (S4)
REFER TO TESTING & REPAIR Removing and installing combination switch up to 23.04.04 AR54.25-P-2800P
REFER TO TESTING & REPAIR Removing and installing combination switch as of 24.4.04 AR54.25-P-2800PQ
20 Install EIS control unit (N73)
REFER TO TESTING & REPAIR Remove/install electronic ignition switch (EIS)   AR46.10-P-0810P
21 Install right side paneling in rear
REFER TO TESTING & REPAIR Remove/install side paneling in rear   AR68.30-P-4780PB
22 Fit paneling to right C-pillar
REFER TO TESTING & REPAIR Remove/install paneling on C-pillar   AR68.30-P-4490PB
23 Install rear SAM control unit with fuse and relay module (N10/2)
REFER TO TESTING & REPAIR Removing and installing rear SAM control unit with fuse and relay box   AR54.21-P-1259PC
24 Install paneling in trunk
REFER TO TESTING & REPAIR Remove/install paneling in trunk   AR68.30-P-4600PB
25 Close right cable duct
26 Fit side upholstery to right rear seat backrest
REFER TO TESTING & REPAIR Remove/install rear seat backrest side padding   AR91.12-P-1710P
27 Fit paneling to A-pillar in right passenger footwell
28 Install front right and rear right door sill moldings.
29 Connect ground cable to battery
REFER TO TESTING & REPAIR Disconnect/connect battery's ground cable   AR54.10-P-0003P
30 Read out fault memory and erase IMPORTANT Faults stored due to cables being disconnected for assembly/testing operations or due to a simulation, must be processed and erased from the fault memories after work is completed.
    STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
31 Perform nominal/actual configuration. STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
32 Perform function check IMPORTANT See Operating Instructions
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnosis system, Compact Passenger Car 6511 1801 00
