Remove/install rear seat backrest side padding - AR91.12-P-1710P

MODEL 203.0 with CODE (287) Through-loading feature

MODEL 203.2 /7

MODEL 209.3 except CODE (P98) Black Series

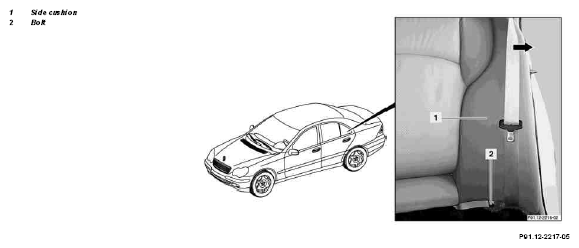

Fig 1: Identifying Side Cushion and Bolt

	Removing, installing
1	Release rear seat cushion and fold forwards
2	Unscrew bolt (2)
3	Pull side cushion (1) at the top and remove	See arrow Installation: On models 203.0/2 , ensure that the stapling wire latches in the clip on the wheelhouse.
4	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 203
BA91.40-P-1001-01A	Screw on belt end fitting	Nm	30

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
