Removing and installing side paneling in rear - AR68.30-P-4780PB
MODEL 203.7

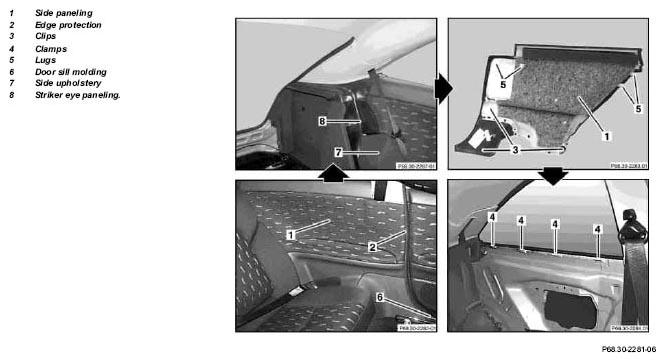

| Removing, installing | |||
|---|---|---|---|
| 1 | Remove rear shelf | ||
| 2 | Remove luggage compartment cover console | AR68.30-P-4730PB | |
| 3 | Remove striker eye (8) paneling | ||
| 4 | Remove side upholstery (7) | AR91.12-P-1710P | |
| 5 | Unclip door sill molding (6), remove | ||
| 6 | Remove edge guard (2) in area of B-pillar | ||
| 7 | Unclip clips (3) | Figure | |
| 8 | Move side paneling (1) out in area of clips (4) and lugs (5) | ||
| 9 | Remove side paneling (1) toward front | ||
| 10 | Install in the reverse order |
