Remove/install front seat adjustment mechanism - AR91.10-P-1450M

Models 220.0 /1

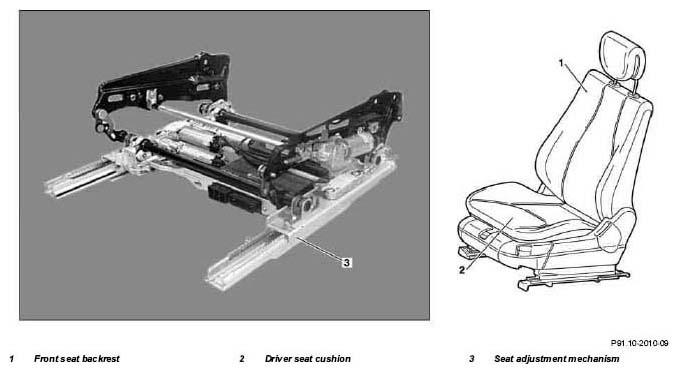

Fig 1: Identifying Front Seat Adjustment Mechanism Remove/Install Components - Models 220.0 /1

	Remove/Install
1	Remove front seat backrest (1)	up to 31.8.02.	AR91.10-P-1060M
		As of 1.9.02.	AR91.10-P-1060MB
2	Remove driver's seat cushion (2)	up to 31.8.02.	AR91.10-P-1070M
		As of 1.9.02.	AR91.10-P-1070MB
3	Remove front seat control module	up to 30.06.01.	AR91.29-P-1550M
		As of 1.7.01.	AR91.29-P-1550MA
4.1	Remove front seat adjustment motor group (seat cushion)	up to 30.06.01.	AR91.29-P-1420M
5.1	Remove front seat adjustment motor group (seat cushion)	Only for front and rear seat cushion and front seat forward and backward
		As of 1.07.01.	AR91.29-P-1420MA
6.1	Remove front seat adjustment motor group (seat cushion)	Only for seat cushion forward and backward.
		As of 1.07.01 up to 31.08.02.	AR91.29-P-1420MB
		As of 1.09.02.	AR91.29-P-1420MC
7	Install in the reverse order
