Remove and install driver's seat cushion - AR91.10-P-1070MB

MODEL 220.0 /1 as of 1.9.02 with CODE (803) Model year 2003

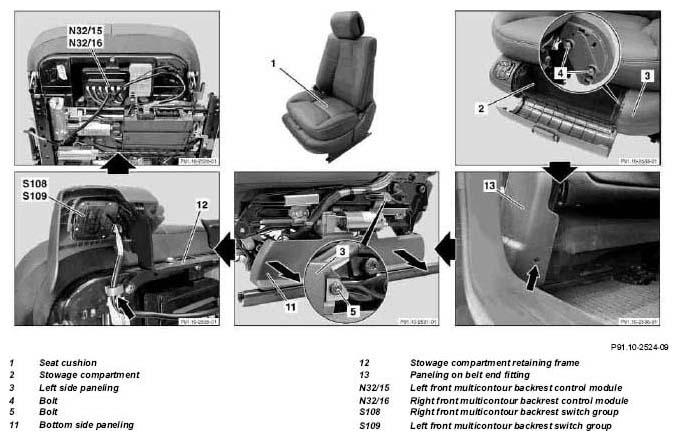

Fig 1: Identifying Driver'S Seat Cushion Remove/Install Components - Model 220.0 /1 As Of 1.9.02 With Code (803) Model Year 2003 (1 Of 2)

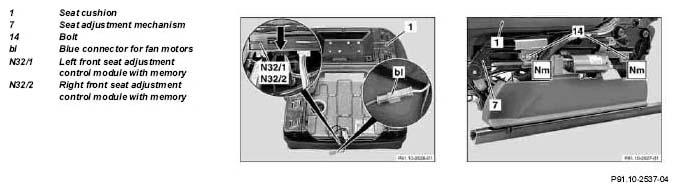

Fig 2: Identifying Driver'S Seat Cushion Remove/Install Components - Model 220.0 /1 As Of 1.9.02 With Code (803) Model Year 2003 (2 Of 2)

	Remove/Install
1	Remove front seat	Move seat cushion fully upwards and into the center position so that the rear bolt (14) on the seat belt buckle is exposed.	AR91.10-P-1000MB
2	Open flap on stowage compartment (2)
3.1	Unclip stowage compartment (2)
3.2	Remove fire extinguisher	With fire extinguisher, code 682.
4	Unscrew screws (4, 2 pieces) on left side paneling (3)
5	Unscrew screw (see arrow) on the back of the paneling (13) of the belt end fitting and remove
6	Unscrew screw (5) on left side paneling (3)
7	Pull off left side paneling (3) in the direction of travel
8.1	Unclip lower side paneling (11) in the direction of travel	With driver seat multicontour backrest, code 404b and front passenger seat multicontour backrest, code 405b.
9.1	Pull pneumatic lines off lumbar support control valve
9.2	Disconnect connection coupling from left front multicontour backrest switch group (S109), right front (S108)	With driver seat multicontour backrest, code 404b, front passenger seat, code 405b, or left dynamic seat, incl. multicontour seat, code 433, right code 434.
10	Pull Omega clip (see arrow) off seat cushion frame
11.1	Disconnect connection coupling from dynamic seat switch	With left dynamic seat, incl. multicontour seat, code 433, right, code 434.
12.1	Remove multicontour backrest control module on front seat	With driver seat multicontour backrest, code 404b and front passenger seat multicontour backrest, code 405b.	AR91.25-P-1750M
13	Unscrew stowage compartment retaining frame (12) from cushion frame
14	Unscrew bolt (14, 2 pieces) and push seat cushion (1) forwards off seat adjuster (7)	Bolt seat cushion to seat adjuster Do not remove seat cushion (1) from the seat adjuster yet.	*BA91.10-P-1003-01H
15.1	Disconnect blue connector for fan motors (bl)	With front deluxe seat, incl. heated seat and seat ventilation, code 401a.
16.1	Disconnect coupling for heated seat cushion (see arrow in enlarged section) from front seat adjustment control module with memory left (N32/1), right (N32/2)	With front deluxe seat, incl. heated seat and seat ventilation, code 401a, or left and right front heated seats, code 873.
17	Remove seat cushion (1) from seat adjuster (7)
18	Install in the reverse order
19	Function test of seat adjustment
