Remove and install front seat backrest - AR91.10-P-1060M

MODELS 220.0 /1 up to 31.8.02

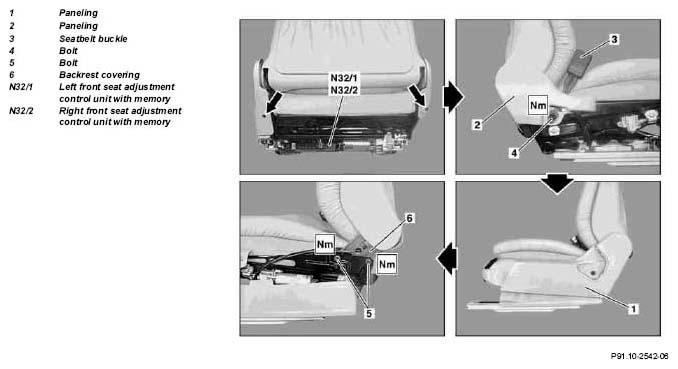

Fig 1: Identifying Front Seat Backrest Remove/Install Components - Models 220.0 /1 Up To 31.8.02

	Remove/Install
1	Remove front seat		AR91.10-P-1000M
2	Unscrew screw (arrow) on paneling (1)
3	Remove paneling (1)
4	Unscrew screw (4) and remove seat belt buckle (3)	Bolt/nut at front seat belt buckle.	*BA91.40-P-1003-01A
5	Unscrew screw (arrow) on paneling (2)
6	Detach paneling (2)
7.1	Separate pneumatic line connector for lumbar support air cushion
7.2	Remove multicontour backrest control unit from front seat	In vehicles with driver seat multicontour backrest, code 404b and front passenger seat code 405b.	AR91.25-P-1750M
8	Remove backrest and head restraint adjustment connector from front seat adjustment with memory control unit, left (N32/1) and right (N32/2)
9	Unscrew screws (5, 2 screws) from backrest fitting (6), left and right	Screw at backrest fitting.	*BA91.10-P-1002-01H
10	Remove front seat backrest from the seat adjuster
11	Install in the reverse order

FRONT SEATS

Number	Designation		Model 220 up to 30.11.01	Model 220 as of 1.12.01
BA91.10-P-1002-01H	Bolt at backrest fitting	NM	35	35

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 220
BA91.40-P-1003-01A	Screw/nut on front seat belt buckle	NM	30
