Removing and installing front seat control module - AR91.29-P-1550MA
MODELS 220.0 /1 as of 1.7.01 with CODE (802) Model year 2002

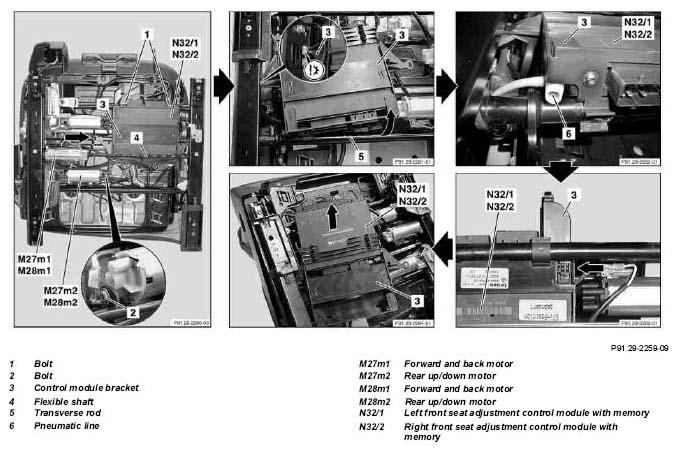

Fig 1: Identifying Front Seat Control Module Remove/Install Components - Models 220.0 /1 As Of 1.7.01
| Remove/install | |||
| 1 | Remove front seat | up to 31.8.02. | AR91.10-P-1000M |
| as of 1.9.02. | AR91.10-P-1000MB | ||
| 2 | Remove all connectors to front and rear side of left (N32/1) and right (N32/2) front seat adjustment control module with memory | ||
| 3 | Slacken tie straps (see arrow) at control module bracket lug (3) | ||
| 4 | Unscrew bolt (1, 2 pcs.) at front of left (N32/1) and right (N32/2) front seat adjustment control module with memory | ||
| 5 | Unscrew bolt (2, see magnification) from rear up/down motor (M27m2, M28m2) | ||
| 6 | Detach flexible shaft (4) from forward/back motor (M27m1, M28m1) | ||
| 7 | Carefully release front control module bracket (3) from transverse rod (5), (see arrow) until both plastic retaining clamps on underside of control module bracket (3) have been unclipped | ||
| 8 | Unclip pneumatic line (6) at front left (N32/1) and right (N32/2) side of left front seat adjustment control module with memory | ||
| 9 | Unclip left (N32/1) and right (N32/2) front seat adjustment control module with memory from control module bracket (3) latching lug (see arrow) at front right side | ||
| 10 | Push left (N32/1) and right (N32/2) front seat adjustment control module with memory from control module bracket (3) | ||
| 11 | Install in the reverse order | ||
| 12 | Perform front seat adjustment function test |
