Remove/install front seat (seat cushion) adjusting motors - AR91.29-P-1420MB

MODEL 220.0 /1 as of 1.7.01 up to 31.8.02

Seat cushion forward/back

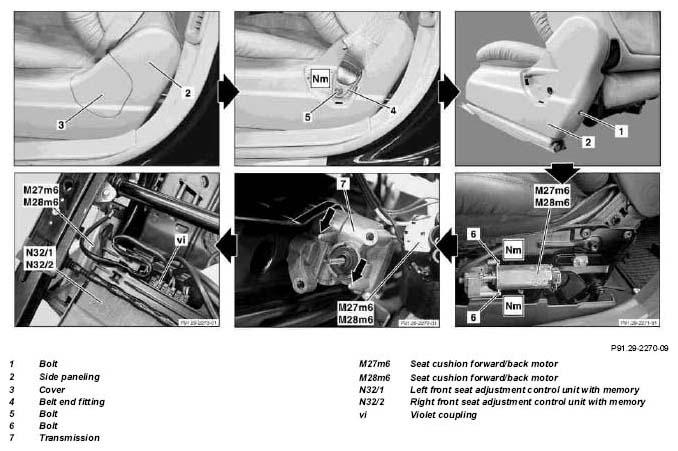

Fig 1: Identifying Front Seat (Seat Cushion) Adjusting Motors Remove/Install Components - Model 220.0 /1 As Of 1.7.01 Up To 31.8.02

	Remove/Install
1	Move front seats toward front	Move front and back seat cushions up as far as possible.
2	Remove cover (3) from side trim (2)
3	Unscrew screw (5) from belt end fitting (4)	Bolt/nut at front seat belt buckle. Installation:  When screwing on, please ensure that the belt end fitting (4) remains mobile.	*BA91.40-P-1003-01A
4	Unscrew bolt (1) and unclip and remove upper trim (2)
5	Unscrew screws (6, 2 screws) from seat cushion forward/back motor (M27m6, M28m6)	Screw, seat adjuster motor.	*BA91.29-P-1001-01A
6	Remove seat cushion forward/back motor (M27m6, M28m6) from transmission (7)	Shaft remains in transmission (7). Installation:  Motor must be inserted into pilot stud (arrows).
7	Unclip connecting cable to underside of left (N32/1) and right (N32/2) front seat adjustment control unit with memory	Installation:  Carefully clip connecting cable into retaining clamps on underside of control unit.
8	Unplug violet coupling (vi) from left (N32/1) and right (N32/2) front seat adjustment control unit with memory
9	Remove seat cushion forward/back motor (M27m6, M28m6) with connecting cable
10	Install in the reverse order
11	Check seat adjustment for proper function

SEAT ADJUSTMENT

Number	Designation		Model 220
BA91.29-P-1001-01A	Bolt of seat adjustment motor	NM	4

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		Model 220
BA91.40-P-1003-01A	Screw/nut on front seat belt buckle	NM	30
