Remove/install front seat (seat cushion) adjusting motors - AR91.29-P-1420MC

MODEL 220.0 /1 as of 1.9.02 with CODE (803) Model year 2003 seat cushion forward/back

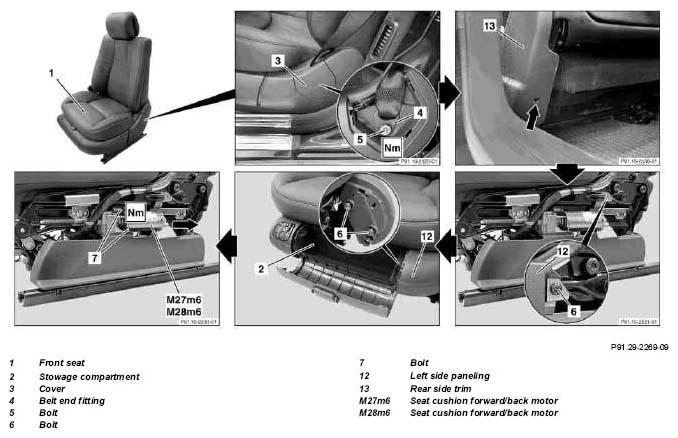

Fig 1: Identifying Front Seat (Seat Cushion) Adjusting Motors Remove/Install Components - Model 220.0 /1 As Of 1.9.02

	Remove/Install
1	Adjust front seat (1) to front	Move front and back seat cushions up as far as possible.
2	Remove cover (3) from rear side trim (13)
3	Unscrew screw (5) from belt end fitting (4)	Bolt/nut at front seat belt buckle. Installation:  When screwing on, please ensure that the belt end fitting (4) remains mobile.	*BA91.40-P-1003-01A
4	Remove screw (see arrow) from rear side trim (13)
5	Unscrew screw (6, see magnification) from left side trim (12)
6	Open stowage compartment flap (2)
7.1	Unclip and remove stowage compartment (2)
7.2	Remove fire extinguisher	For vehicles with fire extinguisher code 682.
8	Unscrew screws (6, 2 screws) from left side trim (12)
9	Pull off left side trim (12) in direction of travel
10	Unscrew screw (7, 2 screws) from seat cushion forward/back motor (M27m6, M28m6)	Screw, seat adjuster motor.	*BA91.29-P-1001-01A
11	Remove seat cushion forward/back motor (M27m6, M28m6) from transmission	Shaft remains in transmission.
12	Unplug connector from seat cushion forward/back motor (M27m6, M28m6)
13	Install in the reverse order
14	Perform function check of seat cushion forward/back facility
